Fall Protection & Industrial Safety Hardware
ANSI Carabiners
9 products
This category groups connectors intended for fall-protection markets that work to ANSI/ASSP Z359.12 in the United States and CSA Z259.12 in Canada. ANSI Z359.12 requires connectors with self-closing, self-locking gates, a major-axis strength of at least 5,000 lbf (22.2 kN) and gate strength of 3,600 lbf (16 kN). The range includes aluminium triple-lock and quicklock models (A455 and A301 series) listed as meeting ANSI/ASSE Z359.12-2009 and CSA Z259.12-11, a galvanised steel D carabiner with captive-eye pin, and a Z-series of steel carabiners with breaking strengths from 25 to 50 kN. Typical uses are lanyard terminations, anchor connections and rescue or confined-space systems in construction, utilities and industry. Buyers should confirm the edition each product is certified to. All models can be supplied OEM or under a private label.
Products
9 products

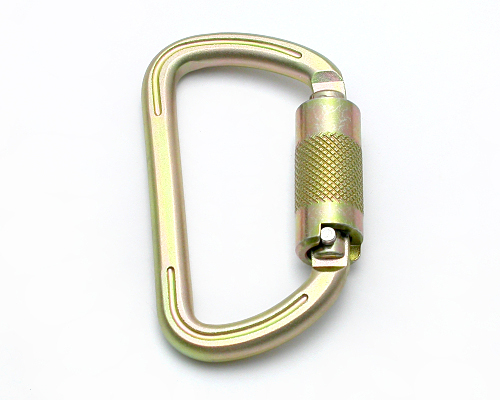

322Z(3600LBS)322Z(3600LBS) Steel Carabiner, 40 kN
322Z(3600LBS) is a compact steel carabiner made from 10 mm bar, rated at 40 kN with a 21 mm gate opening. Measuring 110 x 62 mm, it is a mid-size steel connector for fall-protection lanyards, harness connections and equipment rigging.
View product

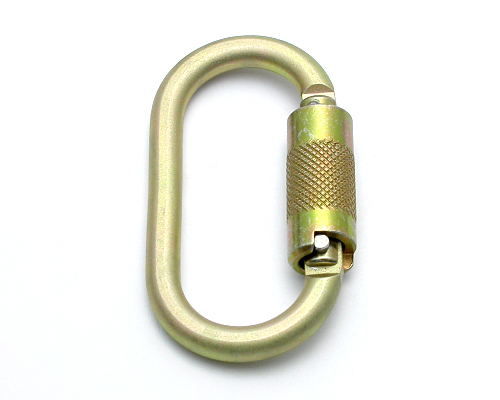

352Z(3600LBS)352Z(3600LBS) Steel Carabiner, 25 kN
352Z(3600LBS) is a slim steel carabiner made from 10 mm bar, with a 25 kN breaking strength and a 19 mm gate opening. Measuring 108 x 56 mm, it is the smallest of the Z-series steel connectors and suits lanyard, tool-tether and equipment connections.
View product

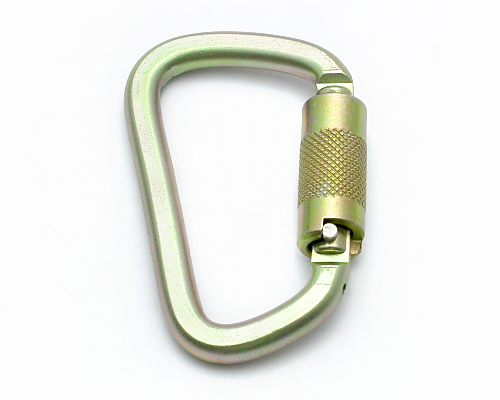

372Z(3600LBS)372Z(3600LBS) Steel Carabiner, 50 kN
372Z(3600LBS) is a steel carabiner made from 11 mm bar with a 50 kN breaking strength, the highest of the Z-series, and a 25 mm gate opening. Its 113 x 71 mm frame suits heavy-duty fall-protection, rescue and lanyard connections.
View product

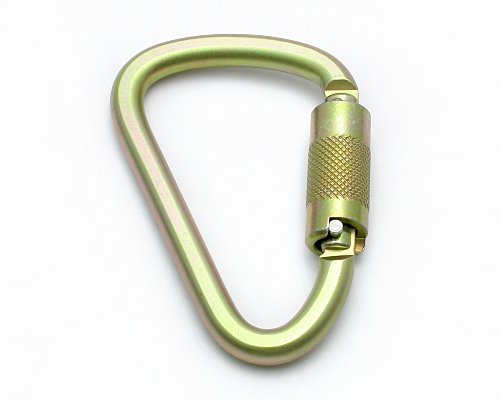

382Z(3600LBS)382Z(3600LBS) Steel Carabiner, 45 kN
382Z(3600LBS) is a large steel carabiner made from 11 mm bar, with a 45 kN breaking strength and a 26 mm gate opening. Measuring 125 x 80 mm, it is the largest of the Z-series steel connectors in the ANSI carabiner range and suits anchor and lanyard connections in industrial work.
View product
A301KTLA301KTL Aluminium Quicklock ANSI Carabiner, 3,600 lb Gate
A301KTL is an aluminium alloy ANSI carabiner with a quicklock gate on a 147.1 x 82.3 mm frame, listed as meeting ANSI/ASSE Z359.12-2009 and CSA Z259.12-11. Its 35 kN minimum tensile strength and 3,600 lb (16 kN) gate rating suit lanyard and fall-protection connections.
View product
A301KTL-3A301KTL-3 Aluminium Triple-Lock ANSI Carabiner, 3,600 lb Gate
A301KTL-3 is a 147.1 x 82.3 mm aluminium alloy ANSI carabiner with a triple-lock gate, listed as meeting ANSI/ASSE Z359.12-2009 and CSA Z259.12-11. It is rated at 35 kN minimum tensile strength and 3,600 lb (16 kN) gate and side load.
View product
A455KTLA455KTL Aluminium Quicklock ANSI Carabiner, 3,600 lb Gate
A455KTL is an aluminium alloy ANSI carabiner with a quicklock gate, listed as meeting ANSI/ASSE Z359.12-2009 and CSA Z259.12-11. It offers a 35 kN minimum tensile strength and 3,600 lb (16 kN) gate and side-load strength for fall-protection connections.
View product

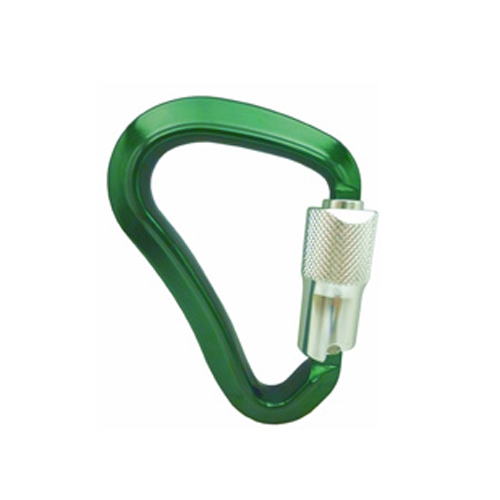

A455KTL-3A455KTL-3 Aluminium Triple-Lock ANSI Carabiner, 3,600 lb Gate
A455KTL-3 is an aluminium alloy ANSI carabiner with a triple-lock gate, listed as meeting ANSI/ASSE Z359.12-2009 and CSA Z259.12-11. It has a minimum tensile strength of 35 kN and 3,600 lb (16 kN) gate and side-load ratings, for personal fall-arrest and work-positioning systems in North America.
View product
ANSI-2200TLANSI-2200TL D-Shape Galvanised Steel Twist-Lock Carabiner
ANSI-2200TL is a D-shaped galvanised steel carabiner with a twist-lock gate and a 50 kN breaking strength. Made from 12 mm bar with a captive-eye pin supplied uninstalled, it suits heavy-duty lanyard terminations and industrial fall-protection systems.
View product
Frequently asked questions
- What does ANSI Z359.12 require of a carabiner?
- ANSI/ASSP Z359.12 covers connecting components for personal fall-arrest systems. Carabiners must have a self-closing, self-locking gate, withstand at least 5,000 lbf (22.2 kN) on the major axis and 3,600 lbf (16 kN) on the gate, and meet marking and proof-load testing requirements.
- Is an EN 362 carabiner automatically ANSI compliant?
- No. ANSI Z359.12 sets its own gate-strength, marking and testing requirements, so a connector certified to the European standard EN 362 must be separately tested and certified for the North American market. Many brands specify both when selling internationally.
- Why do some listings cite the 2009 or 2011 editions?
- The A455 and A301 models are listed against ANSI/ASSE Z359.12-2009 and CSA Z259.12-11. Both standards have since been revised, to ANSI/ASSP Z359.12-2019 and CSA Z259.12-16, so buyers should confirm which edition current production is certified to before placing an order.
- Should I choose aluminium or steel ANSI carabiners?
- Aluminium connectors weigh considerably less, which matters for workers carrying several of them, and can be anodised in colours for equipment coding. Steel connectors are heavier but offer higher breaking strengths and better resistance to abrasion and rough handling on construction and industrial sites.
- What does 3600LBS mean in a model code?
- It refers to the 3,600 lbf (16 kN) gate-strength figure associated with ANSI Z359.12. Where a specification lists only the breaking strength, ask the supplier for gate-strength test data and the certificate for the batch being ordered.
