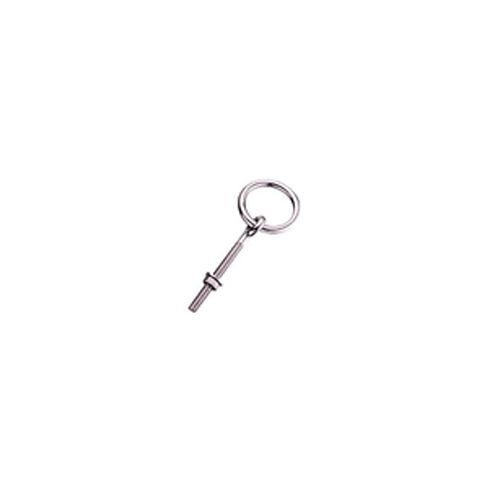

SS3194 316 Stainless Steel Eye Bolt with Ring
The SS3194 is an eye bolt carrying a ring, made from AISI 316 stainless steel in five thread sizes from M5 to M12. The ring moves in the eye, giving a tie-off or hanging point that can follow the direction of pull.
Key features
- AISI 316 stainless steel
- Eye bolt with loose ring
- Five threads, M5 to M12
- L 30 to 60 mm
Specifications
| Property | Value |
|---|---|
| Material | Stainless steel 316 (AISI 316) |
| Type | Eye bolt with ring |
| Size M5 (3/16 in.) | L 30, L1 49, L2 54, D 5 mm |
| Size M6 (1/4 in.) | L 35, L1 55, L2 60, D 6 mm |
| Size M8 (5/16 in.) | L 45, L1 55, L2 60, D 8 mm |
| Size M10 (3/8 in.) | L 50, L1 75, L2 80, D 10 mm |
| Size M12 (1/2 in.) | L 60, L1 90, L2 100, D 12 mm |
Product details
SS3194 carries a loose ring in its eye, so a rope, chain or strap tied to the ring can pull from whichever direction the load comes. It is made from AISI 316 stainless steel in five thread sizes: M5 (3/16 in.), M6 (1/4 in.), M8 (5/16 in.), M10 (3/8 in.) and M12 (1/2 in.). L runs from 30 to 60 mm, L1 from 49 to 90 mm, L2 from 54 to 100 mm and D from 5 to 12 mm.
The bolt passes through a beam, post, bulkhead or bracket and is secured with nuts, giving a tidy ring for mooring and boat tie-offs, tethering, gate and wall fixings, and hanging plants or equipment. Grade 316 gives the corrosion resistance needed in coastal and marine settings. Compared with the 304 ring bolt SS3193, this version is made in grade 316 and includes an M5 size.
No load rating is listed, so this is not a lifting point or personal anchorage. Power Honour can supply the SS3194 under a private label or to a customer drawing.
