G80 Lifting Components

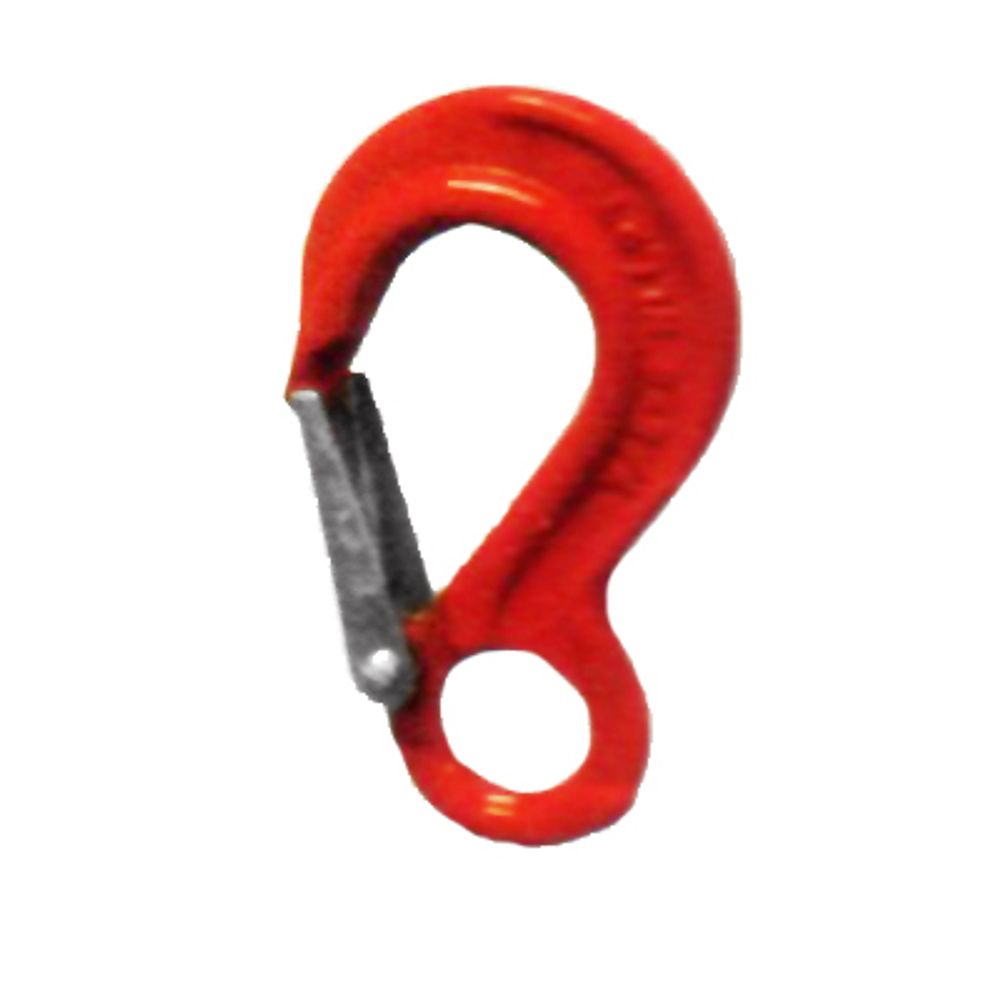

7700A Grade 80 Eye Sling Hook with Latch
The 7700A (Art. No. 7700A) is a Grade 80 eye sling hook with a safety latch for chain and wire rope sling assemblies. Seven sizes are listed from 6-8 (WLL 1.25 ton) to 22-8 (WLL 15.00 ton).
Key features
- Grade 80 eye sling hook with latch
- Seven sizes from 6-8 to 22-8
- WLL from 1.25 ton to 15.00 ton
- Net weight from 0.244 kg to 8.200 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 6-8 | WLL 1.25 ton, net weight 0.244 kg |
| Size 7/8-8 | WLL 2.00 ton, net weight 0.400 kg |
| Size 10-8 | WLL 3.20 ton, net weight 0.920 kg |
| Size 13-8 | WLL 5.40 ton, net weight 2.150 kg |
| Size 16-8 | WLL 8.00 ton, net weight 2.970 kg |
| Size 20-8 | WLL 12.50 ton, net weight 6.360 kg |
| Size 22-8 | WLL 15.00 ton, net weight 8.200 kg |
Product details
Seven sizes give the 7700A eye sling hook one of the widest ranges among the latch hooks in this catalogue. From 6-8, rated at 1.25 ton and weighing 0.244 kg, the table steps through 7/8-8 (2.00 ton), 10-8 (3.20 ton), 13-8 (5.40 ton), 16-8 (8.00 ton) and 20-8 (12.50 ton) to 22-8, which carries 15.00 ton and weighs 8.200 kg. Minimum breaking load is four times the working load limit.
The eye end accepts a connecting link, master link or thimble, so the hook can be used on chain slings and on wire rope or other sling types. The latch closes the throat to help retain a slack sling. Typical applications include construction lifting, plant installation, logistics and general rigging. The 7700A is lifting hardware, not fall protection equipment.
Buyers should state the chain or rope size, the connector that will join the eye and any requirement for marking or proof-test documentation. The hook can be produced as OEM or private label, or adapted to a drawing.
