G80 Lifting Components

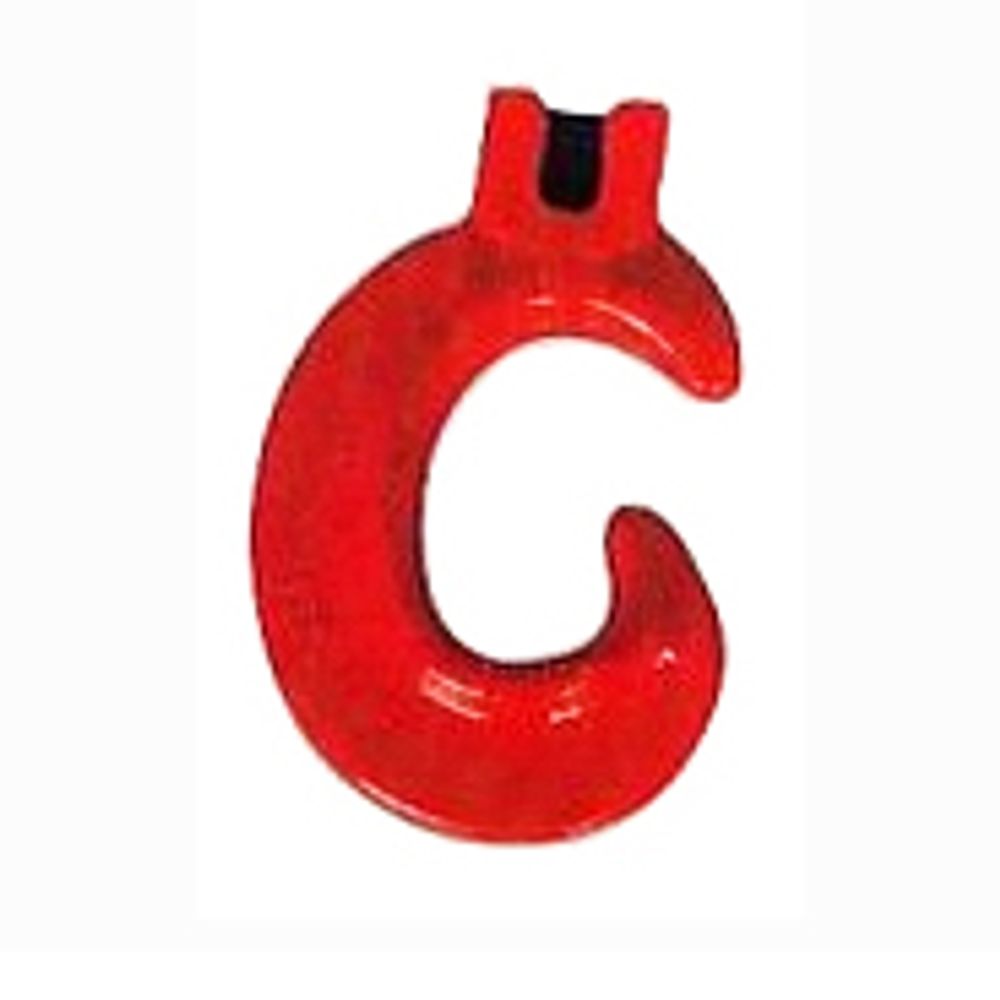

7300A Grade 80 Clevis C Hook
The 7300A (Art. No. 7300A) is a Grade 80 clevis "C" hook for chain sling and rigging assemblies. Four sizes are listed from 7/8-8 (WLL 2.0 ton) to 16-8 (WLL 8.2 ton).
Key features
- Grade 80 clevis C hook
- Four sizes from 7/8-8 to 16-8
- WLL from 2.0 ton to 8.2 ton
- Net weight from 0.57 kg to 5.40 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 7/8-8 | WLL 2.0 ton, net weight 0.57 kg |
| Size 10-8 | WLL 3.2 ton, net weight 1.40 kg |
| Size 13-8 | WLL 5.4 ton, net weight 3.00 kg |
| Size 16-8 | WLL 8.2 ton, net weight 5.40 kg |
Product details
The C-shaped body of the 7300A gives an open hook profile on a clevis connection that pins directly to Grade 80 chain. Its sizes are 7/8-8, rated at 2.0 ton with a net weight of 0.57 kg; 10-8 at 3.2 ton and 1.40 kg; 13-8 at 5.4 ton and 3.00 kg; and 16-8 at 8.2 ton and 5.40 kg. Minimum breaking load is four times the working load limit.
C hooks are used where the load connection calls for an open, easily engaged hook, for example on lifting points, rings and bars in material handling, construction and industrial rigging. The exact throat geometry and any latch arrangement should be checked on the drawing for the intended attachment. This is lifting hardware, not fall-arrest equipment.
Buyers should confirm the chain size and grade, the type of lifting point the hook will engage, and marking or traceability requirements. The 7300A can be produced as OEM or private-label hardware, or adapted to a customer drawing.
Related products
All products in G80 Lifting Components →
Art. No. 7400A7400A Grade 80 Clevis Safety Sling Hook with Latch
View product
Art. No. 7200A7200A Grade 80 Eye Chain Hook with Integrated Latch
View product
Art. No. 7500A7500A Grade 80 Weld-On Hook
View product
Art. No. 7101A7101A Grade 80 Connecting Fitting
View product

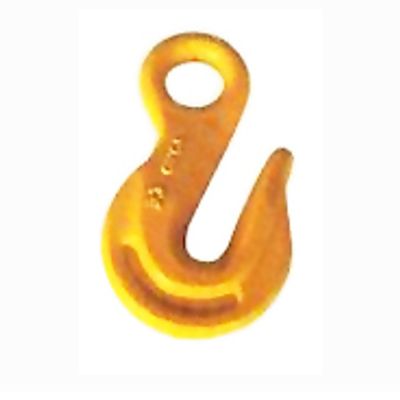

Art. No. 7600A7600A Grade 80 Eye Grab Hook
View product
Art. No. 7000A7000A Grade 80 Chain Shortener Link
View product

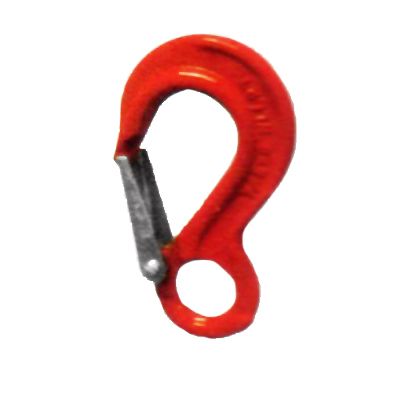

Art. No. 7700A7700A Grade 80 Eye Sling Hook with Latch
