G80 Lifting Components

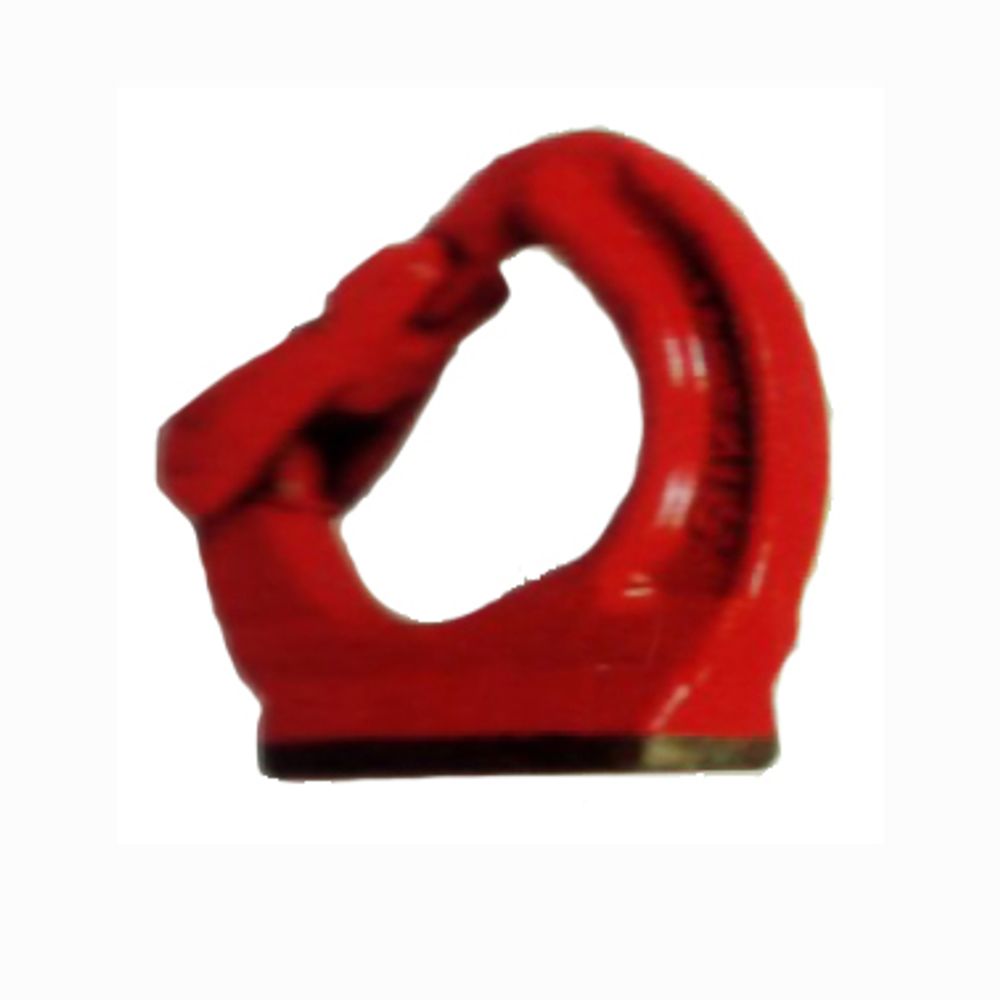

7500A Grade 80 Weld-On Hook
The 7500A (Art. No. 7500A) is a Grade 80 weld-on hook designed to be welded to buckets, attachments, frames or structures to create a lifting point. It is listed in five ratings from 2 ton to 10 ton working load limit.
Key features
- Grade 80 weld-on hook
- WLL 2, 3, 5, 8 and 10 ton
- Net weight from 0.83 lb to 5.17 lb
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| WLL 2 ton | net weight 0.83 lb |
| WLL 3 ton | net weight 1.18 lb |
| WLL 5 ton | net weight 2.50 lb |
| WLL 8 ton | net weight 3.26 lb |
| WLL 10 ton | net weight 5.17 lb |
Product details
The 7500A is sized by working load limit rather than chain size, with five versions rated at 2, 3, 5, 8 and 10 ton. Their published net weights run from 0.83 lb for the 2 ton hook to 5.17 lb for the 10 ton hook. Minimum breaking load is four times the WLL.
Weld-on hooks turn equipment into a lifting point: they are fitted to excavator and loader buckets, quick-couplers, attachments, steel frames and vehicles so that slings or chains can be hooked on directly. Because the hook becomes part of a welded structure, the welding procedure, filler material, preheat and inspection must follow the manufacturer's instructions and be carried out by qualified personnel. The 7500A is lifting hardware and is not designed for personal fall protection.
Buyers should specify the WLL, the base material it will be welded to and whether a latch is required. The hook can be supplied under OEM or private label, or modified to a customer drawing.
