G80 Lifting Components

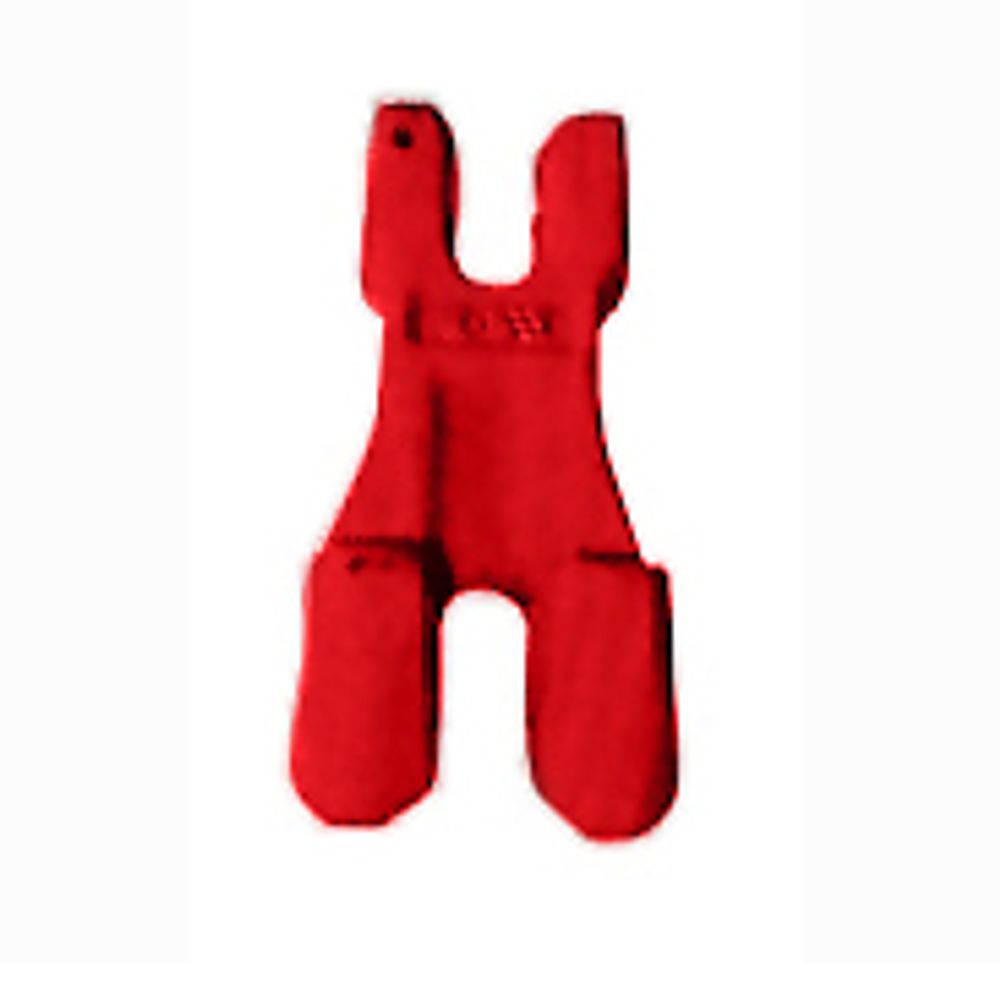

7000A Grade 80 Chain Shortener Link
The 7000A (Art. No. 7000A) is a Grade 80 chain shortener link used to adjust the effective length of chain sling legs. Seven sizes are listed from 6-8 (WLL 1.2 ton) to 22-8 (WLL 15.0 ton).
Key features
- Grade 80 chain shortener link
- Seven sizes from 6-8 to 22-8
- WLL from 1.2 ton to 15.0 ton
- Net weight from 0.21 kg to 8.50 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 6-8 | WLL 1.2 ton, net weight 0.21 kg |
| Size 7/8-8 | WLL 2.0 ton, net weight 0.40 kg |
| Size 10-8 | WLL 3.2 ton, net weight 0.94 kg |
| Size 13-8 | WLL 5.4 ton, net weight 1.75 kg |
| Size 16-8 | WLL 8.2 ton, net weight 3.16 kg |
| Size 20-8 | WLL 12.5 ton, net weight 6.20 kg |
| Size 22-8 | WLL 15.0 ton, net weight 8.50 kg |
Product details
Adjusting leg length without cutting the chain is the job of the 7000A shortener link. The size table starts at 6-8, rated at 1.2 ton and weighing 0.21 kg, and continues through 7/8-8 (2.0 ton), 10-8 (3.2 ton), 13-8 (5.4 ton), 16-8 (8.2 ton) and 20-8 (12.5 ton) to 22-8, rated at 15.0 ton with a net weight of 8.50 kg. Minimum breaking load is four times the working load limit.
A shortener lets the rigger take up chain to level an unbalanced load, set different leg lengths on a multi-leg sling, or reduce headroom. It is fitted between the master link and the legs or within a leg, depending on the design. Uses include construction, precast and machinery lifting. The 7000A is lifting hardware, not fall protection equipment.
Buyers should state the chain size and grade and where in the sling the shortener will sit. The link can be produced as OEM or private label, or adapted to a drawing.
