G80 Lifting Components

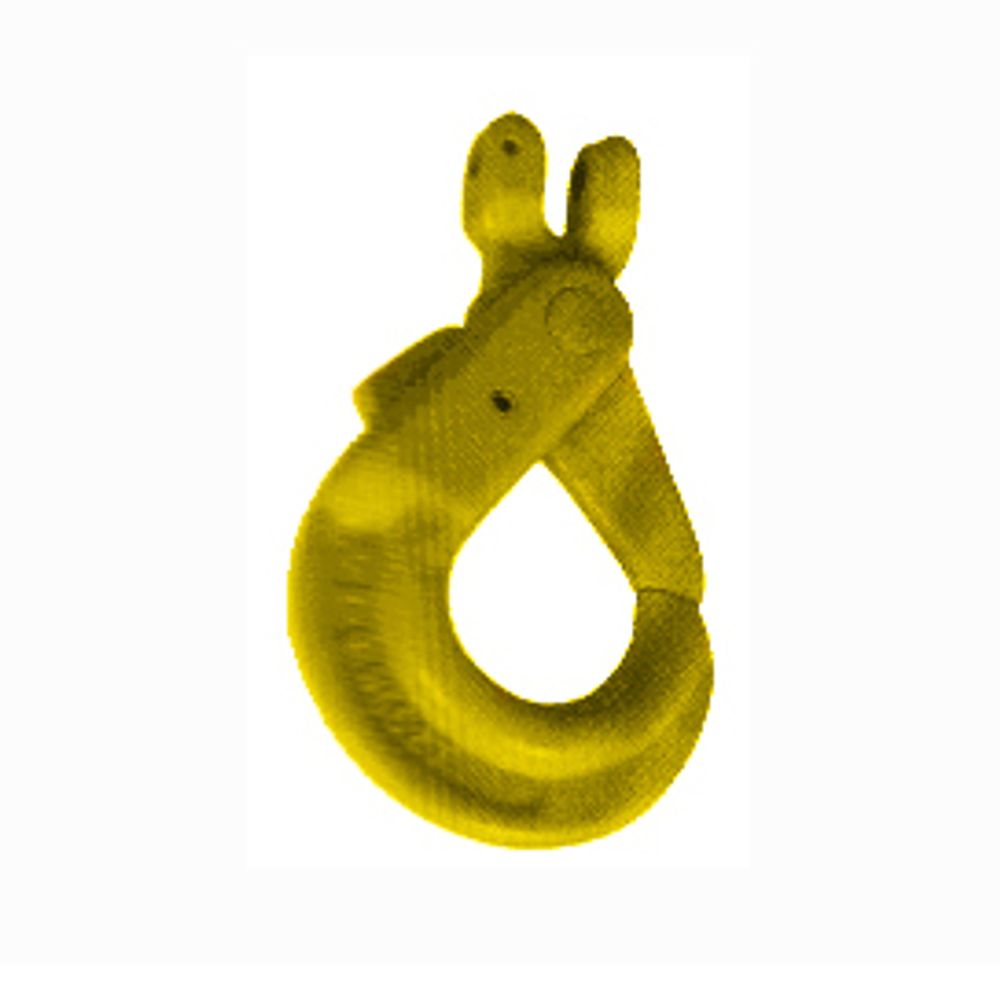

6700A Grade 80 Clevis Self-Locking Safety Hook
The 6700A (Art. No. 6700A) is a Grade 80 clevis self-locking safety hook in inch chain sizes for lifting slings. Four sizes are listed from 1/4-5/16 in (WLL 4500 lb) to 5/8 in (WLL 18100 lb).
Key features
- Grade 80 clevis self-locking safety hook
- Chain sizes from 1/4-5/16 in to 5/8 in
- WLL from 4500 lb to 18100 lb
- Net weight from 1.79 lb to 11.94 lb
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 1/4-5/16 in | WLL 4500 lb, net weight 1.79 lb |
| Chain size 3/8 in | WLL 7100 lb, net weight 3.19 lb |
| Chain size 1/2 in | WLL 12000 lb, net weight 6.75 lb |
| Chain size 5/8 in | WLL 18100 lb, net weight 11.94 lb |
Product details
On a self-locking hook, the latch closes and locks automatically and stays locked until the operator presses the release trigger, so the hook cannot open by accident during a lift. The 6700A applies this design to a clevis connection in North American chain sizes. Its 1/4-5/16 in size is rated at 4500 lb and weighs 1.79 lb; the 3/8 in at 7100 lb and 3.19 lb; the 1/2 in at 12000 lb and 6.75 lb; and the 5/8 in at 18100 lb and 11.94 lb. Minimum breaking load is four times the working load limit.
Self-locking hooks are chosen for lifts where load security matters most, such as construction, steel erection, precast handling and industrial maintenance, and where a standard latch could be pushed open. The 6700A is a lifting hook, not a fall protection connector.
When specifying, give the chain trade size and grade, and confirm the throat opening needed for the lifting points in use. The 6700A can be produced under OEM or private label, or adapted to a drawing.
Related products
All products in G80 Lifting Components →
Art. No. 6800A6800A Grade 80 Eye Choke Hook
View product
Art. No. 6600A6600A Grade 80 Clevis Self-Locking Safety Hook, New Design
View product
Art. No. 6900A6900A Grade 80 Sliding Choke Hook
View product
Art. No. 6500A6500A Grade 80 Clevis Self-Locking Safety Hook
View product
Art. No. 7000A7000A Grade 80 Chain Shortener Link
View product
Art. No. 6400A6400A Grade 80 Clevis Swivel Self-Locking Safety Hook
View product

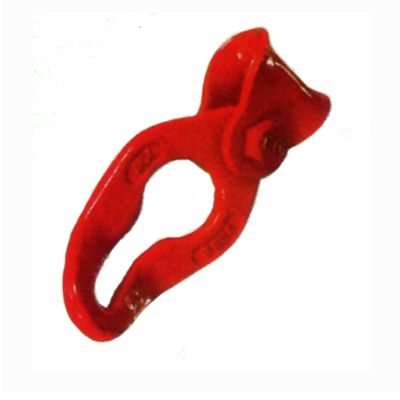

Art. No. 7101A7101A Grade 80 Connecting Fitting
