G80 Lifting Components

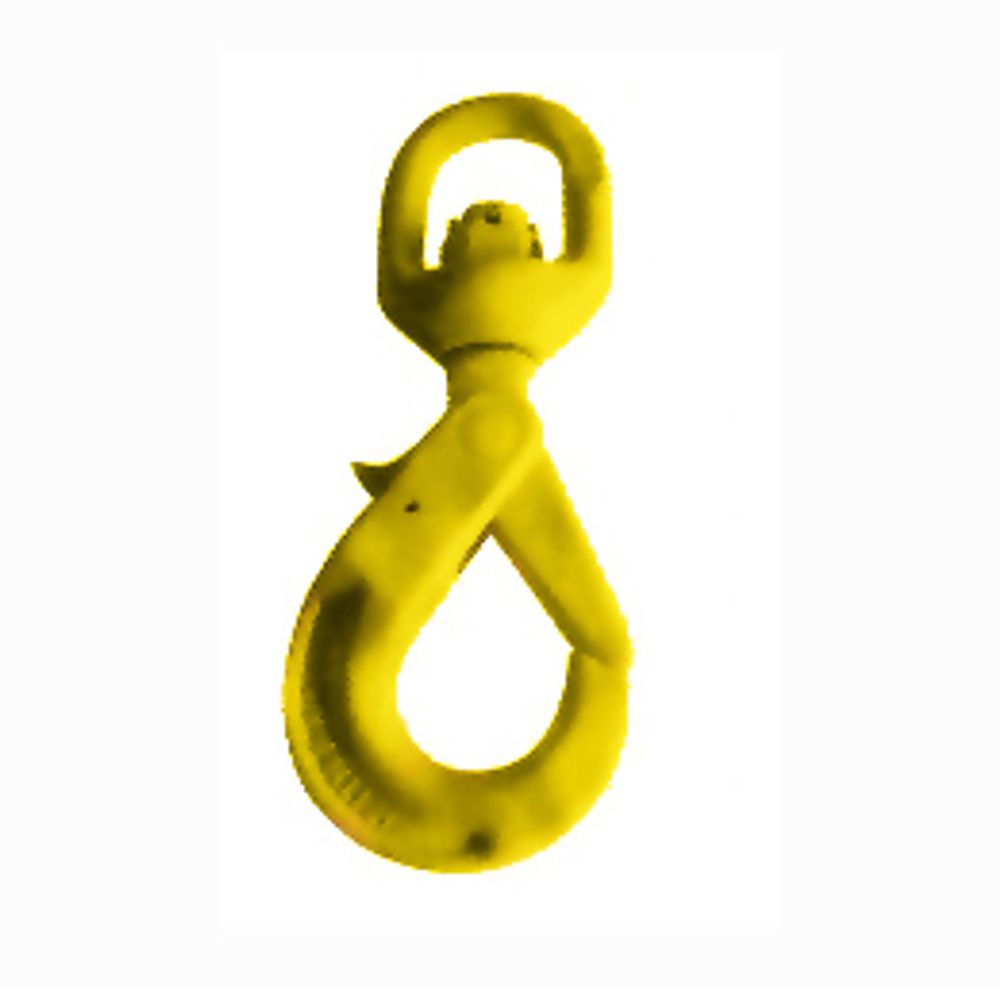

6300A Grade 80 Swivel Self-Locking Safety Hook
The 6300A (Art. No. 6300A) is a Grade 80 swivel self-locking safety hook for chain and wire rope slings. Six chain sizes are listed from 6 mm (WLL 1.20 ton) to 18–20 mm (WLL 12.50 ton).
Key features
- Grade 80 swivel self-locking safety hook
- Six chain sizes from 6 mm to 18–20 mm
- WLL from 1.20 ton to 12.50 ton
- Net weight from 0.60 kg to 11.70 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 6 mm | WLL 1.20 ton, net weight 0.60 kg |
| Chain size 7–8 mm | WLL 2.00 ton, net weight 1.00 kg |
| Chain size 10 mm | WLL 3.20 ton, net weight 2.20 kg |
| Chain size 13 mm | WLL 5.40 ton, net weight 4.50 kg |
| Chain size 16 mm | WLL 8.20 ton, net weight 8.20 kg |
| Chain size 18–20 mm | WLL 12.50 ton, net weight 11.70 kg |
Product details
The 6300A is a swivel-top self-locking hook listed for chain sizes of 6, 7–8, 10, 13, 16 and 18–20 mm. Ratings rise from 1.20 ton at 0.60 kg for the 6 mm size, through 3.20 ton for 10 mm and 5.40 ton for 13 mm, to 12.50 ton at 11.70 kg for the 18–20 mm size. The 16 mm hook is rated at 8.20 ton and weighs 8.20 kg. Minimum breaking load is four times the working load limit.
The swivel allows the hook to rotate into line with the lifting point, while the latch closes and locks automatically and stays locked until the operator presses the release trigger. This combination suits lifts where the load may turn or where the rigger needs to engage the hook from different directions, for example in construction, precast handling and steel erection. The 6300A is lifting hardware, not fall-arrest equipment.
Buyers should state the chain or sling it will be fitted to, the required WLL and whether rotation under load is expected. The 6300A can be produced as OEM or private label, or adapted to a drawing.
Related products
All products in G80 Lifting Components →
Art. No. 6400A6400A Grade 80 Clevis Swivel Self-Locking Safety Hook
View product
Art. No. 6200A6200A Grade 80 Eye Self-Locking Safety Hook, Inch Sizes
View product

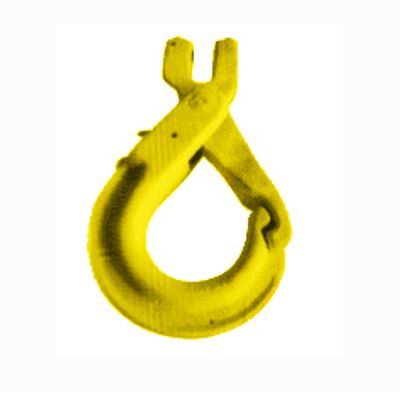

Art. No. 6500A6500A Grade 80 Clevis Self-Locking Safety Hook
View product
Art. No. 6100A6100A Grade 80 Eye Self-Locking Safety Hook, New Design
View product

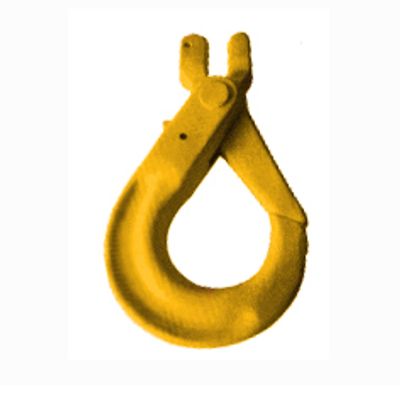

Art. No. 6600A6600A Grade 80 Clevis Self-Locking Safety Hook, New Design
