G80 Lifting Components

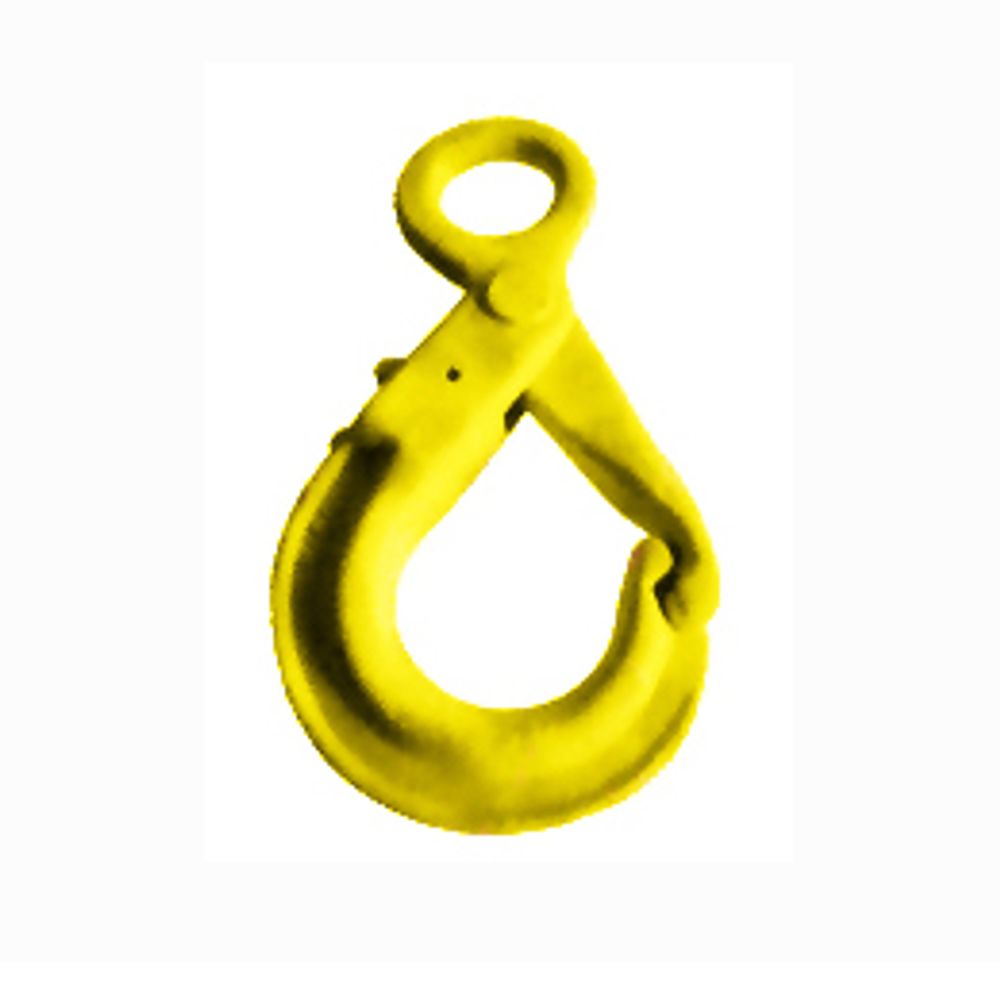

6100A Grade 80 Eye Self-Locking Safety Hook, New Design
The 6100A (Art. No. 6100A) is a newer-design Grade 80 eye self-locking safety hook for chain lifting slings. Four sizes are listed from 7/8-8 (WLL 2.0 ton) to 16-8 (WLL 8.2 ton).
Key features
- Grade 80 eye self-locking safety hook
- New design version
- Four sizes from 7/8-8 to 16-8
- WLL from 2.0 ton to 8.2 ton
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 7/8-8 | WLL 2.0 ton, net weight 0.83 kg |
| Chain size 10-8 | WLL 3.2 ton, net weight 1.26 kg |
| Chain size 13-8 | WLL 5.4 ton, net weight 2.12 kg |
| Chain size 16-8 | WLL 8.2 ton, net weight 3.49 kg |
Product details
Catalogued as a new design of eye self-locking hook, the 6100A is listed in four Grade 80 chain sizes. The 7/8-8 hook is rated at 2.0 ton and weighs 0.83 kg, the 10-8 at 3.2 ton and 1.26 kg, the 13-8 at 5.4 ton and 2.12 kg, and the 16-8 at 8.2 ton and 3.49 kg. Minimum breaking load is four times the working load limit.
With a self-locking hook, the latch closes and locks automatically and stays locked until the operator presses the release trigger, which protects against accidental release when a sling goes slack. The eye end connects to chain through a connecting link, or to a master link, wire rope thimble or other fitting. Uses include chain slings for construction, steel erection, precast and plant maintenance. The 6100A is a lifting hook and should not be used for personal fall protection.
Buyers comparing it with the 6000A eye self-locking hook should request both drawings to see the design differences. In an RFQ, state chain size and grade and any marking requirements. The 6100A can be supplied as OEM or private label.
