G80 Lifting Components

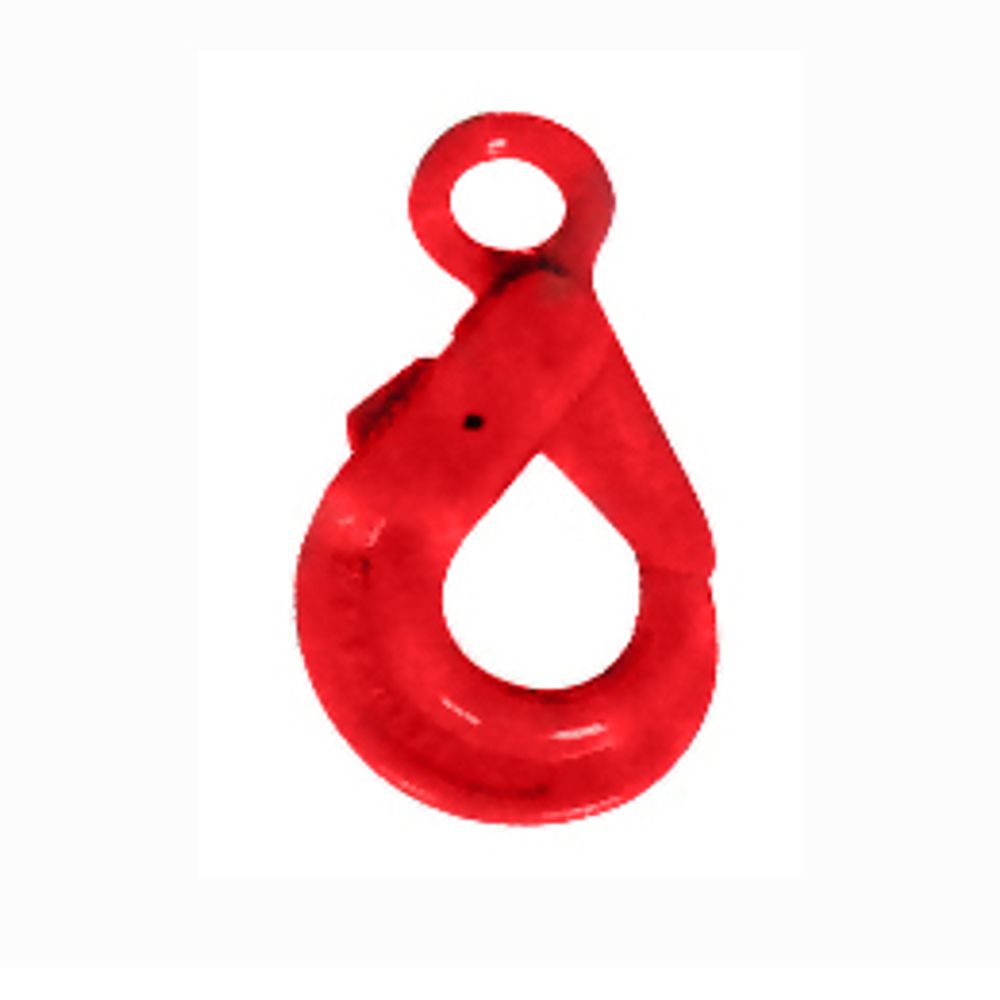

6200A Grade 80 Eye Self-Locking Safety Hook, Inch Sizes
The 6200A (Art. No. 6200A) is a Grade 80 eye self-locking safety hook in inch chain sizes for lifting slings. Four sizes are listed from 1/4 in (WLL 4500 lb) to 5/8 in (WLL 18100 lb).
Key features
- Grade 80 eye self-locking safety hook
- Chain sizes from 1/4 in to 5/8 in
- WLL from 4500 lb to 18100 lb
- Net weight from 1.81 kg to 12.75 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 1/4 in | WLL 4500 lb, net weight 1.81 kg |
| Chain size 3/8 in | WLL 7100 lb, net weight 3.24 kg |
| Chain size 1/2 in | WLL 12000 lb, net weight 5.96 kg |
| Chain size 5/8 in | WLL 18100 lb, net weight 12.75 kg |
Product details
North American chain sizes and pound ratings define the 6200A eye self-locking hook. The 1/4 in hook has a working load limit of 4500 lb and weighs 1.81 kg; the 3/8 in is rated at 7100 lb and 3.24 kg; the 1/2 in at 12000 lb and 5.96 kg; and the 5/8 in at 18100 lb and 12.75 kg. Minimum breaking load is four times the WLL.
As on other self-locking hooks, the latch closes and locks automatically and stays locked until the operator presses the release trigger. The eye end joins a connecting link, master link or wire rope thimble, giving flexibility in how the hook is fitted to chain or rope slings. Typical uses are construction lifting, steel erection, industrial maintenance and rigging where a standard latch is not considered secure enough. The 6200A is lifting hardware, not fall protection equipment.
Buyers should specify chain trade size and grade, the connector for the eye, and any marking required for their market. The 6200A can be produced as OEM or private label, or adapted to a drawing.
