G80 Lifting Components

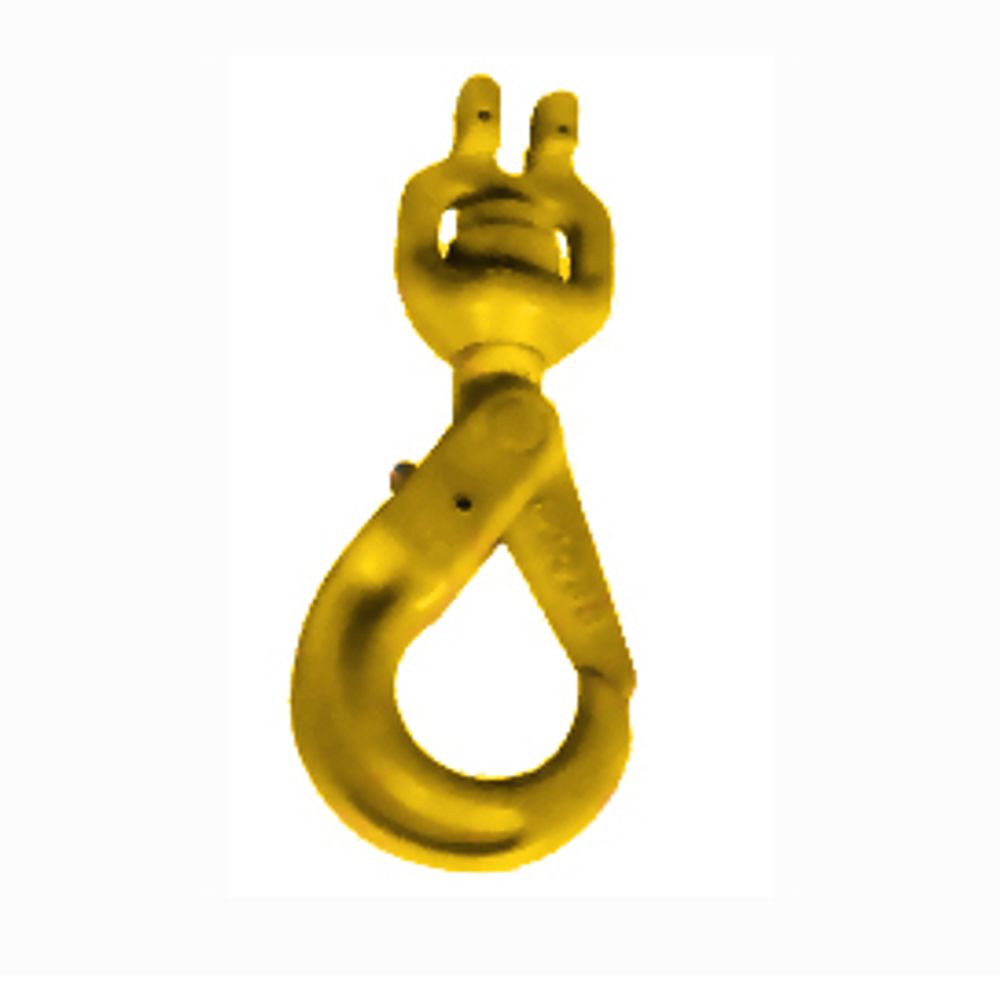

6400A Grade 80 Clevis Swivel Self-Locking Safety Hook
The 6400A (Art. No. 6400A) is a Grade 80 self-locking safety hook with a swivel and clevis connection for chain slings. Six sizes are listed from 6-8 (WLL 1.2 ton) to 18/20-8 (WLL 12.5 ton).
Key features
- Grade 80 clevis swivel self-locking safety hook
- Six sizes from 6-8 to 18/20-8
- WLL from 1.2 ton to 12.5 ton
- Net weight from 0.76 kg to 13.7 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 6-8 | WLL 1.2 ton, net weight 0.76 kg |
| Chain size 7/8-8 | WLL 2.0 ton, net weight 1.26 kg |
| Chain size 10-8 | WLL 3.2 ton, net weight 2.20 kg |
| Chain size 13-8 | WLL 5.4 ton, net weight 4.400 kg |
| Chain size 16-8 | WLL 8.2 ton, net weight 7.50 kg |
| Chain size 18/20-8 | WLL 12.5 ton, net weight 13.7 kg |
Product details
Combining a swivel with a clevis and a self-locking hook, the 6400A lets the hook turn to face the lifting point while staying pinned to the chain. Six sizes are published: 6-8 at 1.2 ton and 0.76 kg, 7/8-8 at 2.0 ton, 10-8 at 3.2 ton, 13-8 at 5.4 ton, 16-8 at 8.2 ton, and 18/20-8 at 12.5 ton with a net weight of 13.7 kg. Minimum breaking load is four times the working load limit.
On this hook, the latch closes and locks automatically and stays locked until the operator presses the release trigger. The swivel helps prevent twisted chain legs when the hook is engaged at an awkward angle, which is useful on multi-leg slings and in confined lifting areas. Typical uses include construction, precast and machinery lifting. The 6400A is lifting hardware, not fall protection equipment.
When specifying, confirm the chain size and grade and whether the swivel is required to turn under load or only to align the hook before lifting. The 6400A can be supplied under OEM or private label, or to a drawing.
