G80 Lifting Components
044A Grade 8 Eye Sling Hook with Latch
The 044A (Art. No. 044A) is a Grade 8 eye sling hook with a latch for chain and rope sling assemblies. It is listed for chain from 6 mm to 16 mm, with working load limits from 2.0 ton (7+8 mm) to 8.0 ton (16 mm).
Key features
- Grade 8 eye sling hook with latch
- For 6 mm to 16 mm chain
- WLL from 2.0 ton to 8.0 ton (7+8 to 16 mm)
- Length L from 80 mm to 184 mm
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 6 mm | L 80 mm, B 24 mm, E 20 mm, G 15 mm |
| Chain size 7+8 mm | L 98 mm, B 27 mm, E 25 mm, G 18 mm, WLL 2.0 ton |
| Chain size 10 mm | L 122 mm, B 34 mm, E 32 mm, G 23 mm, WLL 3.2 ton |
| Chain size 13 mm | L 152 mm, B 42 mm, E 40 mm, G 30 mm, WLL 5.4 ton |
| Chain size 16 mm | L 184 mm, B 49 mm, E 50 mm, G 32 mm, WLL 8.0 ton |
Product details

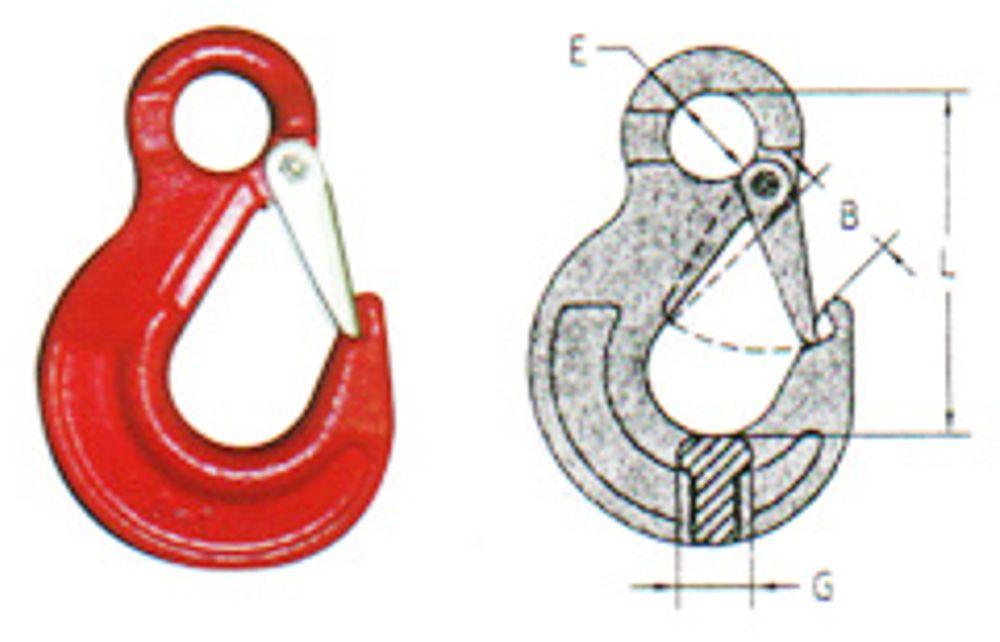

The 044A eye sling hook with latch has published drawing dimensions for five chain sizes. For 7+8 mm chain it measures L 98 mm, B 27 mm, E 25 mm and G 18 mm and is rated at 2.0 ton. The 10 mm hook (L 122 mm) is rated at 3.2 ton, the 13 mm (L 152 mm) at 5.4 ton, and the 16 mm, measuring L 184 mm, B 49 mm and G 32 mm, at 8.0 ton. A 6 mm size measuring L 80 mm is also available, with its rating confirmed on request. Minimum breaking load is four times the WLL.
The eye end connects to chain through a connecting link, or to a master link or thimble, and the latch helps retain a slack sling. These hooks are used on chain and wire rope slings for construction, logistics and plant lifting. The 044A is lifting hardware, not fall-arrest equipment.
Buyers should state chain size and grade and the eye connector. The 044A can be supplied as OEM or private label.
