G80 Lifting Components
051A Grade 8 Forest Hook
The 051A (Art. No. 051A) is a Grade 8 forest hook for chain used in forestry and timber handling. It is listed for 6 mm, 7+8 mm and 10 mm chain, with working load limits of 1.25, 2.0 and 3.2 ton.
Key features
- Grade 8 forest hook
- For 6 mm, 7+8 mm and 10 mm chain
- WLL 1.25, 2.0 and 3.2 ton
- Length L from 41 mm to 80 mm
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 6 mm | L 41 mm, B 8 mm, E 7.5 mm, G 17 mm, WLL 1.25 ton |
| Chain size 7+8 mm | L 58 mm, B 11 mm, E 9.2 mm, G 18 mm, WLL 2.0 ton |
| Chain size 10 mm | L 80 mm, B 12 mm, E 12.5 mm, G 21.2 mm, WLL 3.2 ton |
Product details

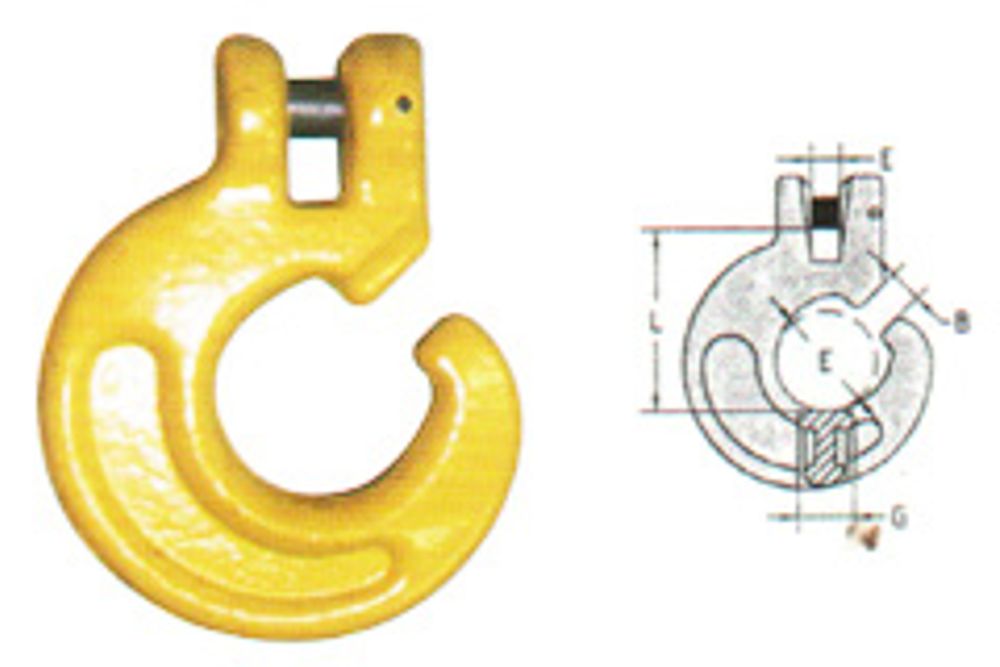

Dimensions as well as ratings are published for the 051A forest hook. For 6 mm chain, the hook measures L 41 mm, B 8 mm, E 7.5 mm and G 17 mm, with a working load limit of 1.25 ton. The 7+8 mm size measures L 58 mm and G 18 mm and is rated at 2.0 ton, and the 10 mm size measures L 80 mm and G 21.2 mm and is rated at 3.2 ton. Minimum breaking load is four times the WLL. The letter dimensions refer to the product drawing.
Forest hooks are used on chains for skidding, bundling and handling logs and timber in forestry and sawmill work, where the hook is attached and released repeatedly. They also find use in general chain rigging. The 051A is lifting and handling hardware, not fall protection equipment.
When specifying, confirm the chain diameter and grade, the connection to the chain and any requirement for colour or marking. Power Honour can supply the 051A as OEM or private-label product, or modified to a customer drawing.
