G80 Lifting Components

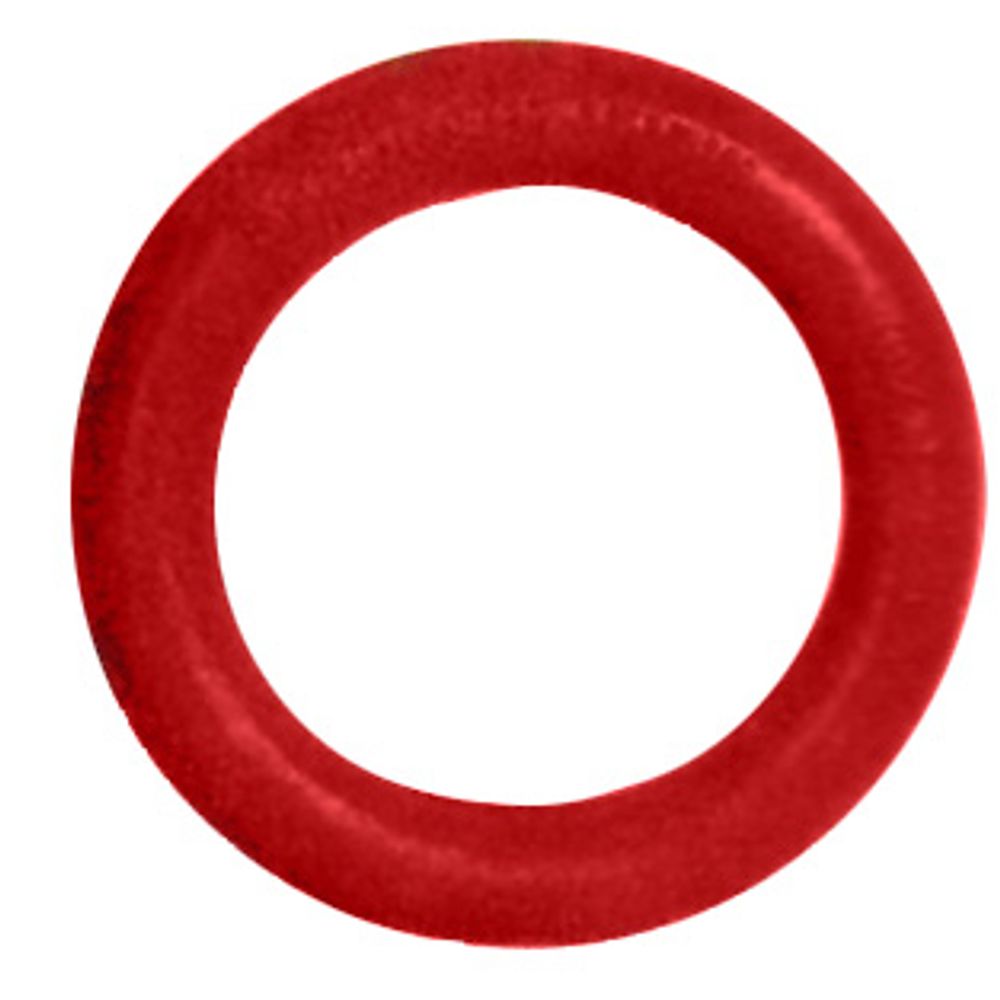

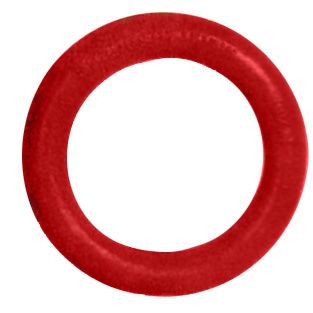

0700A Weldless Round Ring
The 0700A (Art. No. 0700A) is a weldless round ring for connecting several slings or chain legs at one point. It is listed from 7/8 in to 1-3/8 in, with working load limits from 5600 lb to 19000 lb and a minimum breaking load of six times the WLL.
Key features
- Weldless round ring
- Sizes from 7/8 in to 1-3/8 in
- WLL from 5600 lb to 19000 lb
- Minimum breaking load 6 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 6 × working load limit (WLL) |
| Size 7/8 in | WLL 7200 lb, net weight 2.70 lb |
| Size 7/8 in | WLL 5600 lb, net weight 3.40 lb |
| Size 1 in | WLL 10800 lb, net weight 3.50 lb |
| Size 1-1/8 in | WLL 10400 lb, net weight 6.50 lb |
| Size 1-1/4 in | WLL 17000 lb, net weight 7.00 lb |
| Size 1-3/8 in | WLL 19000 lb, net weight 10.63 lb |
Product details
A higher design factor sets the 0700A apart from much of this range: its minimum breaking load is six times the working load limit rather than four. Two 7/8 in variants are offered, one rated at 7200 lb weighing 2.70 lb and one at 5600 lb weighing 3.40 lb, followed by 1 in at 10800 lb, 1-1/8 in at 10400 lb, 1-1/4 in at 17000 lb and 1-3/8 in at 19000 lb with a net weight of 10.63 lb.
Weldless rings have no weld seam in the ring body, and round rings are used to gather sling legs, connect multiple attachments or act as a collecting ring in rigging and towing arrangements. The 0700A is lifting and rigging hardware, not fall protection equipment.
Because two different 7/8 in ratings are published, buyers should confirm which variant they need along with the stock diameter and inside diameter. The ring can be supplied as OEM or private label, or adapted to a drawing.
