1300A Grade 80 Delta Ring

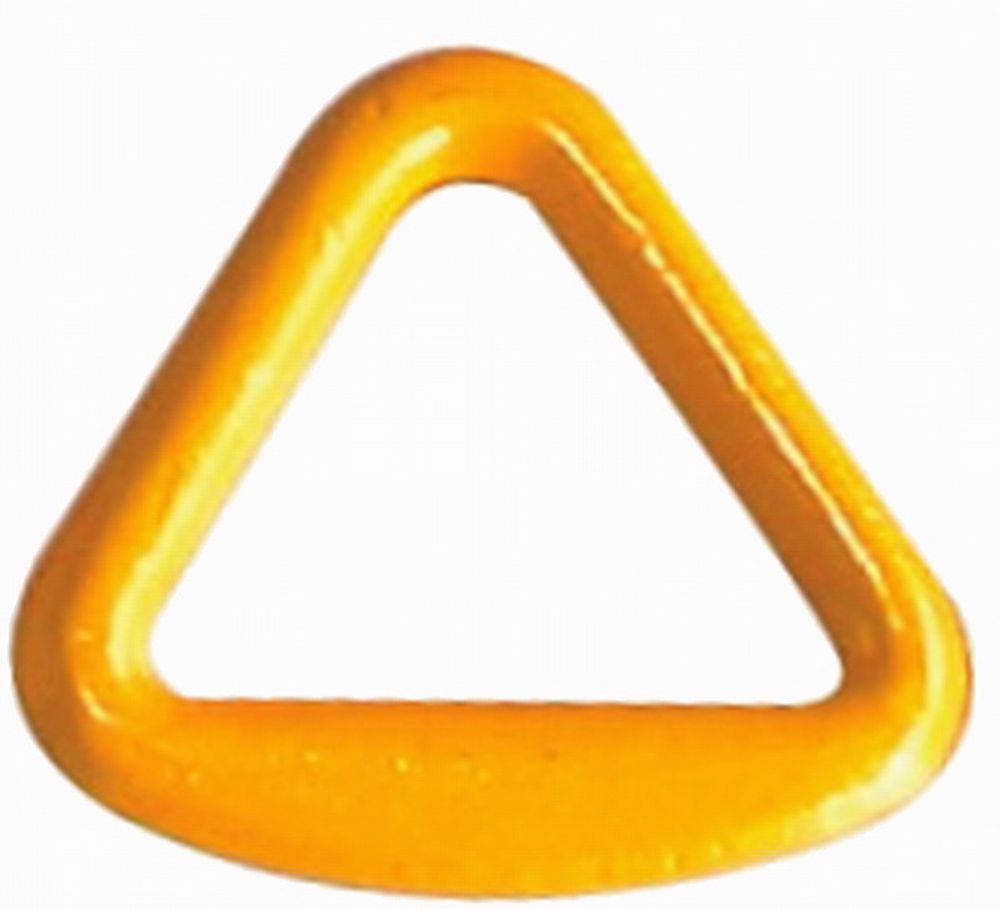

The 1300A (Art. No. 1300A) is a Grade 80 delta ring, a triangular ring used to gather or connect slings and webbing in rigging assemblies. It is listed in 3 in and 4 in sizes with minimum breaking strengths of 18000 lb and 20000 lb, and a welded version is available.
Key features
- Grade 80 delta ring
- 3 in size: MBS 18000 lb, 0.36 kg
- 4 in size: MBS 20000 lb, 0.62 kg
- Welded version available
Specifications
| Property | Value |
|---|---|
| Size 3 in | MBS 18000 lb, net weight 0.36 kg |
| Size 4 in | MBS 20000 lb, net weight 0.62 kg |
Product details
The 1300A delta ring is listed in two sizes. The 3 in ring has a minimum breaking strength (MBS) of 18000 lb and weighs 0.36 kg; the 4 in ring has an MBS of 20000 lb and weighs 0.62 kg. A welded delta ring is also available. Unlike most items in this range, the ring is rated by breaking strength rather than by working load limit, so the WLL must be derived using the design factor that applies to the buyer's application.
The triangular shape gives the ring a straight side that suits flat webbing as well as chain or rope connections, which is why delta rings are used in web sling assemblies, load-securing systems and rigging set-ups. In this catalogue the 1300A is offered as lifting and rigging hardware, not as fall protection equipment.
When requesting a quotation, specify the size, welded or non-welded construction, the webbing width it must accept and any surface finish. The ring can be supplied as OEM or private label, or produced to a drawing.
