G80 Lifting Components

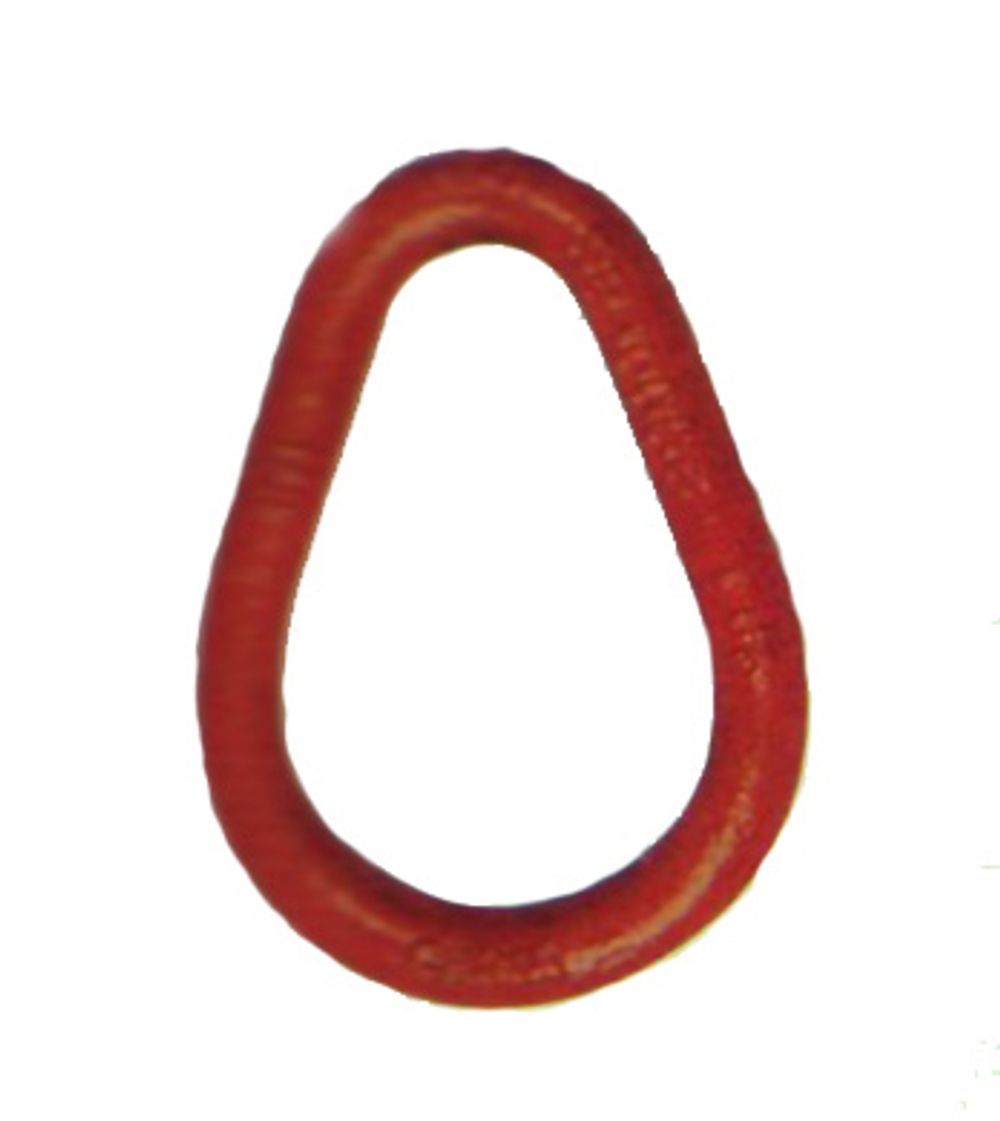

0400A Weldless Pear-Shaped Link
The 0400A (Art. No. 0400A) is a weldless pear-shaped link for rigging and lifting assemblies. Eight sizes are listed from 3/8 in to 1-3/8 in, with working load limits from 1600 lb to 20500 lb and a minimum breaking load of six times the WLL.
Key features
- Weldless pear-shaped link
- Eight sizes from 3/8 in to 1-3/8 in
- WLL from 1600 lb to 20500 lb
- Minimum breaking load 6 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 6 × working load limit (WLL) |
| Size 3/8 in | WLL 1600 lb, net weight 0.23 lb |
| Size 1/2 in | WLL 2900 lb, net weight 0.55 lb |
| Size 5/8 in | WLL 4200 lb, net weight 1.10 lb |
| Size 3/4 in | WLL 6000 lb, net weight 1.95 lb |
| Size 7/8 in | WLL 8300 lb, net weight 2.78 lb |
| Size 1 in | WLL 10800 lb, net weight 4.30 lb |
| Size 1-1/4 in | WLL 16750 lb, net weight 8.50 lb |
| Size 1-3/8 in | WLL 20500 lb, net weight 11.50 lb |
Product details
Made without a weld seam, the 0400A pear-shaped link is rated with a design factor of six: its minimum breaking load is six times the working load limit. The 3/8 in size carries 1600 lb and weighs 0.23 lb, the 1/2 in carries 2900 lb, the 3/4 in 6000 lb and the 1 in 10800 lb. The largest 1-3/8 in link is rated at 20500 lb with a net weight of 11.50 lb.
Pear links seat their wide end on a hook and gather a sling, rope or chain at the narrow end, which makes them useful as end links on wire rope and chain assemblies, in towing and mooring set-ups and in general rigging. The 0400A is not fall protection equipment.
When comparing this link with the Grade 80 0500A, note the different design factor and size range, and choose by the WLL and inside dimensions the application needs. Power Honour can supply the 0400A as OEM or private-label hardware or adapt it to a customer drawing.
