G80 Lifting Components
018A Grade 8 Omega Link
The 018A (Art. No. 018A) is a Grade 8 omega link for joining chain to master links and fittings in lifting slings. It is listed for 6, 7, 10 and 13 mm chain, with working load limits from 1.1 ton to 5.4 ton.
Key features
- Grade 8 omega link
- For 6, 7, 10 and 13 mm chain
- WLL from 1.1 ton to 5.4 ton
- Length L from 28 mm to 57 mm
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 6 mm | L 28 mm, B 20 mm, G 9 mm, WLL 1.1 ton |
| Chain size 7 mm | L 32.5 mm, B 25 mm, G 11.4 mm, WLL 2.0 ton |
| Chain size 10 mm | L 43.7 mm, B 31.5 mm, G 13.9 mm, WLL 3.2 ton |
| Chain size 13 mm | L 57 mm, B 40 mm, G 17.5 mm, WLL 5.4 ton |
Product details

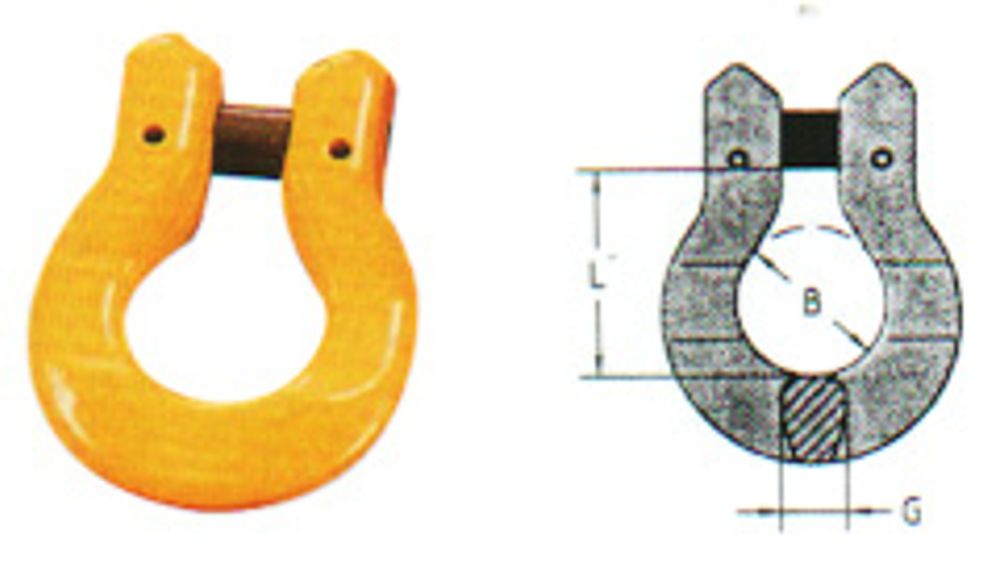

The 018A omega link is published with drawing dimensions for four chain sizes. For 6 mm chain it measures L 28 mm, B 20 mm and G 9 mm and is rated at 1.1 ton. The 7 mm size measures L 32.5 mm, B 25 mm and G 11.4 mm at 2.0 ton; the 10 mm size L 43.7 mm and G 13.9 mm at 3.2 ton; and the 13 mm size L 57 mm, B 40 mm and G 17.5 mm at 5.4 ton. Minimum breaking load is four times the working load limit.
An omega link and its pin make a compact joint between chain legs and master links or end fittings, keeping assemblies short. It is used to build and repair chain slings for construction, manufacturing and general lifting. The 018A is lifting hardware and should not be used as fall-arrest equipment.
Buyers should confirm the chain diameter and grade, the master link section it must fit and pin retention requirements. The 018A can be supplied as OEM or private-label hardware, or adapted to a customer drawing.
