Carabiners

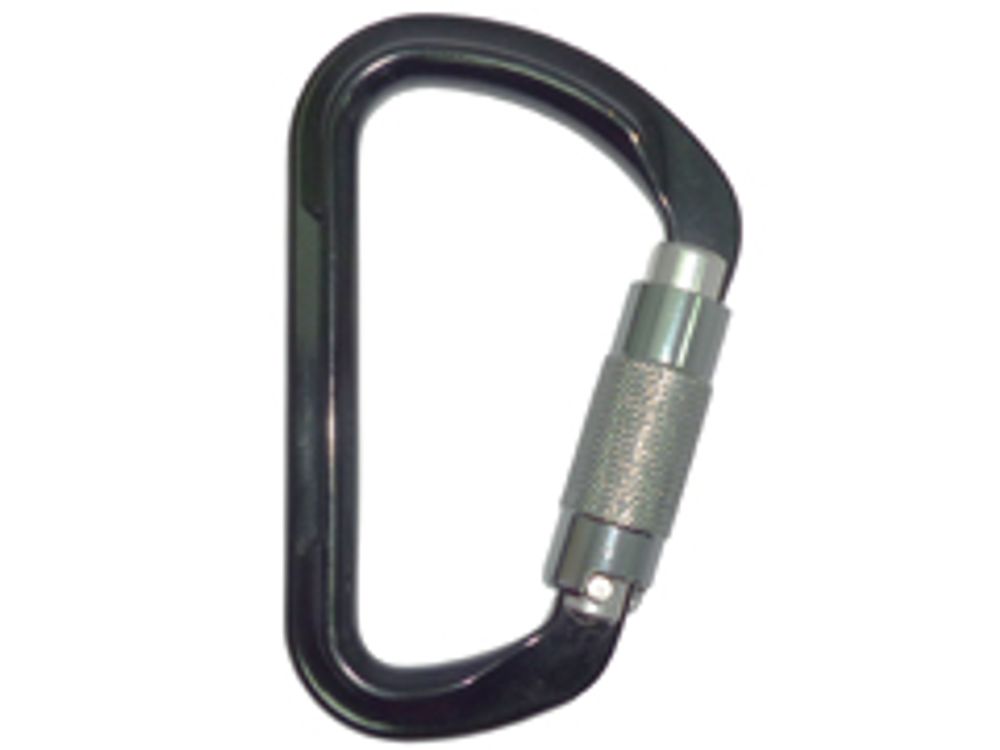

A12117KTL Aluminium Key-Lock Twist-Lock Carabiner
A12117KTL is a twist-lock aluminium alloy carabiner with a key-lock nose and a 25 kN breaking strength. It combines a 24 mm gate opening with automatic locking, for rope-work, rescue and climbing users who need the gate to secure itself every time.
Key features
- Twist-lock auto-locking gate
- Key-lock nose
- 25 kN breaking strength
- 24 mm opening, 117 x 75 mm, 85 g
Specifications
| Property | Value |
|---|---|
| Material | Aluminium alloy |
| Breaking strength | 25 kN |
| Gate opening | 24 mm |
| Length | 117 mm |
| Width | 75 mm |
| Weight | 85 g |
Product details

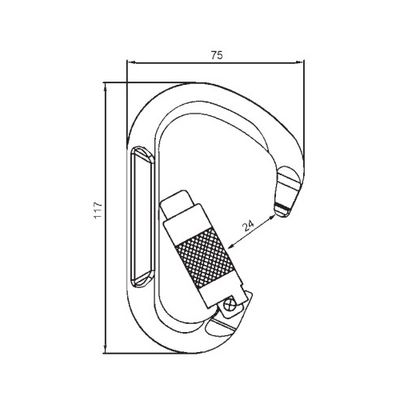

A12117KTL uses the 117 x 75 mm aluminium alloy frame of the A12117 family with a spring-loaded twist-lock sleeve. Listed breaking strength is 25 kN, the gate opens to 24 mm, the widest opening of the three A12117 versions, and the connector weighs 85 g.
Because the sleeve rotates back and locks on release, the user cannot forget to secure the gate. That makes the model a good fit for work-positioning and rope-access systems, rescue rigging, arborist climbing kits and climbing applications with frequent clipping. The key-lock nose slides off harness loops and sling bundles cleanly.
Matching versions are A12117KSG with a manual screw gate and A12117KTL-3 with a triple-lock gate. In your RFQ, give the standard and market the finished product must comply with, the desired sleeve action, the colours and the marking layout. Power Honour can manufacture A12117KTL as an OEM or private-label connector and can adapt geometry or gate details to a customer drawing.
