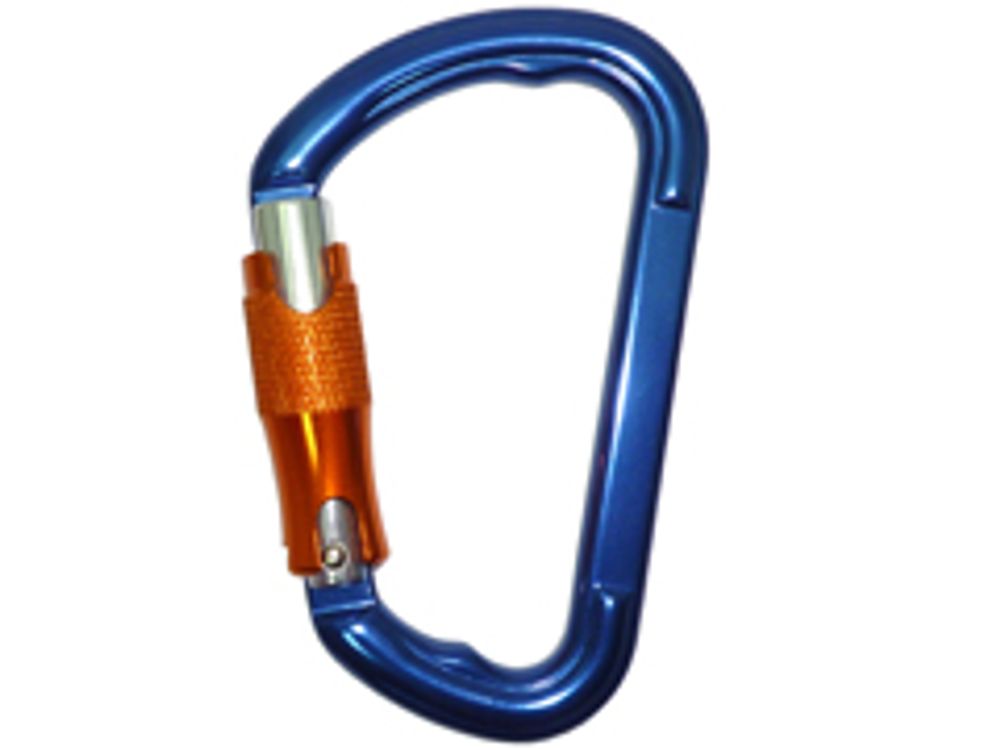

A12116KTL Aluminium Key-Lock Twist-Lock Carabiner

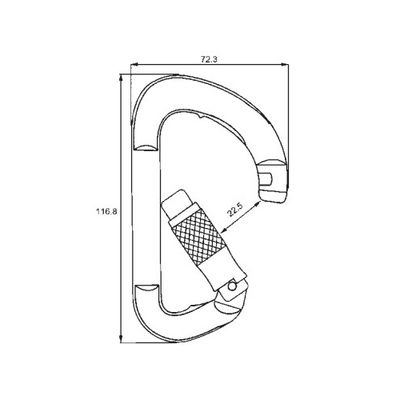

A12116KTL is an aluminium alloy carabiner with a self-locking twist-lock gate and key-lock nose, rated at 25 kN. It offers a 22.5 mm gate opening on a 116.8 x 72.3 mm frame for users who need a connector that relocks every time it is released.
Key features
- Twist-lock auto-locking gate
- Key-lock nose
- 25 kN breaking strength
- 22.5 mm opening, 116.8 x 72.3 mm, 85 g
Specifications
| Property | Value |
|---|---|
| Material | Aluminium alloy |
| Breaking strength | 25 kN |
| Gate opening | 22.5 mm |
| Length | 116.8 mm |
| Width | 72.3 mm |
| Weight | 85 g |
Product details
On A12116KTL the twist-lock sleeve returns to the locked position by spring force as soon as the user lets go. The aluminium alloy frame measures 116.8 x 72.3 mm, the stated breaking strength is 25 kN, the gate opening is 22.5 mm and the weight is 85 g.
Automatic locking removes the risk of a screw sleeve being left undone, which is why twist-lock connectors are widely used in rope access, rescue, arborist and work-positioning systems, and by climbers who clip and unclip frequently. The generous width of the A12116 frame helps when the connector has to hold a rope together with a device or several slings.
A12116KTL shares its frame with the screw-gate A12116KSG and the triple-lock A12116KTL-3, so a brand can offer all three gate actions with matching geometry. Specify the target standard, the market and the finish and marking required when requesting a quotation. Power Honour supplies the model for OEM and private-label programmes and can adapt it to a customer drawing.
