Fall Protection & Industrial Safety Hardware
Self-Retracting Lifelines
10 products
A self-retracting lifeline (SRL) is a fall arrester in which the line pays out and retracts automatically as the worker moves, and locks to arrest a fall. This category covers compact webbing units from 2 m to 3 m, a 6 m Dyneema webbing model, and wire rope units of 6 m, 10 m, 15 m and 20 m with galvanised cable and impact-resistant housings, plus an aluminium rescue tripod for confined space entry and retrieval. Typical users work in construction, roofing, steel erection, warehousing, plant maintenance and utilities. In Europe these devices are covered by EN 360, revised in 2023, and in North America by ANSI/ASSP Z359.14, which classifies devices by intended anchorage position. Confined space tripods are commonly assessed as EN 795 Type B anchor devices. The range can be supplied OEM or private label.
Products
10 products

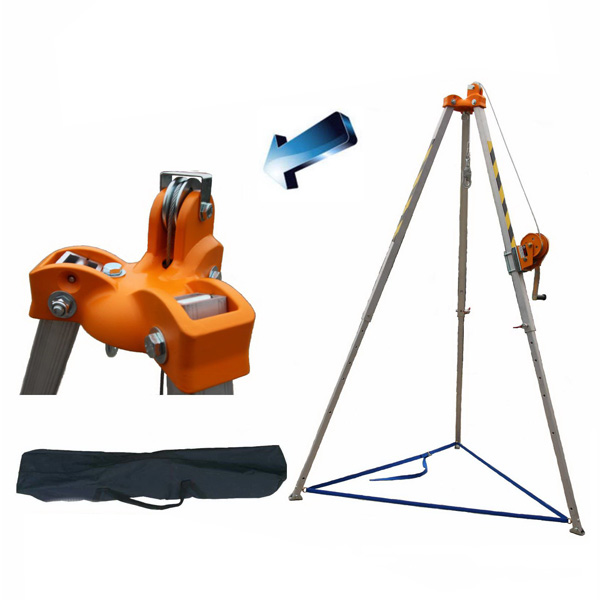

AD-01AD-01 Aluminium Rescue Tripod
The AD-01 is an aluminium alloy rescue tripod with a maximum height of 2.3 m, a minimum breaking strength of 12 kN and a maximum working load of 1200 lbs. It provides a portable overhead anchor over manholes, shafts and other confined space openings for entry and rescue.
View product

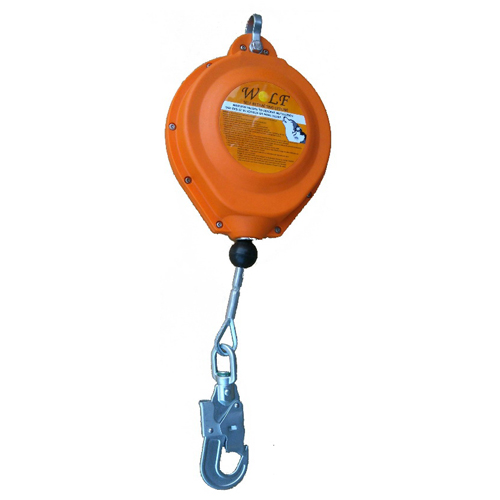

SRL-10MSRL-10M Self-Retracting Lifeline, 10 m Galvanised Wire Rope
The SRL-10M is a self-retracting lifeline with 10 m of 4 mm galvanised wire rope in a high-impact-resistant plastic housing, stated to meet EN 360. It limits dynamic force to 6 kN maximum and is used as a general-purpose fall arrest block for work at height.
View product
SRL-15SRL-15 Self-Retracting Lifeline, 15 m Galvanised Cable
The SRL-15 is a self-retracting lifeline with a 15 m galvanised wire cable and a steel swivel hook, stated to meet EN 360. It is used to protect workers at height who need a long, automatically tensioned line between an overhead anchor and their harness.
View product

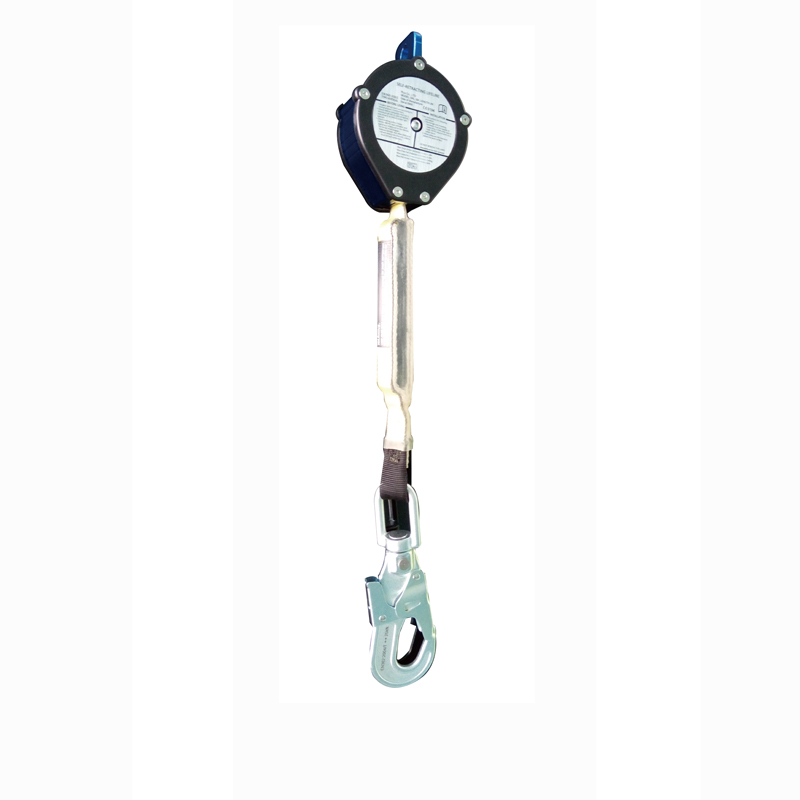

SRL-2.5MSRL-2.5M Webbing Self-Retracting Lifeline, 2.5 m
The SRL-2.5M is a self-retracting lifeline with 2.5 m (8.3 ft) of 19 mm webbing, supplied with a tagline and a swivel connector. Its compact high-impact-resistant plastic housing measures 131 x 94 x 47 mm, and it is referenced to EN 360:2002.
View product- SRL-2.7M
SRL-2.7M Webbing Self-Retracting Lifeline, 2.7 m
The SRL-2.7M is a webbing self-retracting lifeline with 2.7 m (9 ft) of 19 mm webbing, a tagline and a swivel connector. It shares the compact 131 x 94 x 47 mm high-impact-resistant plastic housing of its family and is referenced to EN 360:2002.
View product - SRL-20

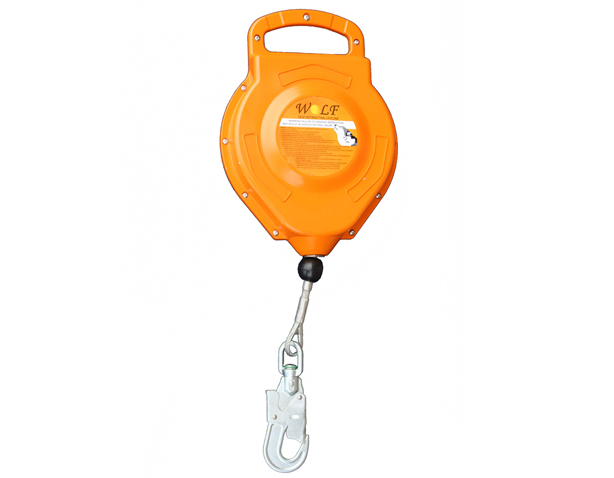

SRL-20 Self-Retracting Lifeline, 20 m Galvanised Wire Rope
The SRL-20 is a self-retracting lifeline with 20 m of 4 mm galvanised wire rope in a high-impact-resistant plastic housing, stated to meet EN 360. Its long working length allows a worker to cover a large area from one overhead anchor while remaining protected against falls.
View product - SRL-2M
SRL-2M Webbing Self-Retracting Lifeline, 2.0 m
The SRL-2M is a compact self-retracting lifeline with 2.0 m (6.6 ft) of 19 mm webbing, a tagline and a swivel connector, in a high-impact-resistant plastic housing. It is the shortest model in its family and is referenced to EN 360:2002.
View product - SRL-3M
SRL-3M Webbing Self-Retracting Lifeline, 3 m
The SRL-3M is a webbing self-retracting lifeline with 3 m (10 ft) of 19 mm webbing, a tagline and a swivel connector. It is the longest model in its compact-housing family, with a 131 x 94 x 47 mm high-impact-resistant plastic housing, and is referenced to EN 360:2002.
View product
SRL-6SRL-6 Self-Retracting Lifeline, 6 m Cable
The SRL-6 is a self-retracting lifeline with a 6 m cable of 4 mm diameter and a steel swivel hook, stated to meet EN 360. It gives a worker at height freedom to move while the line stays taut, locking automatically to arrest a fall.
View product

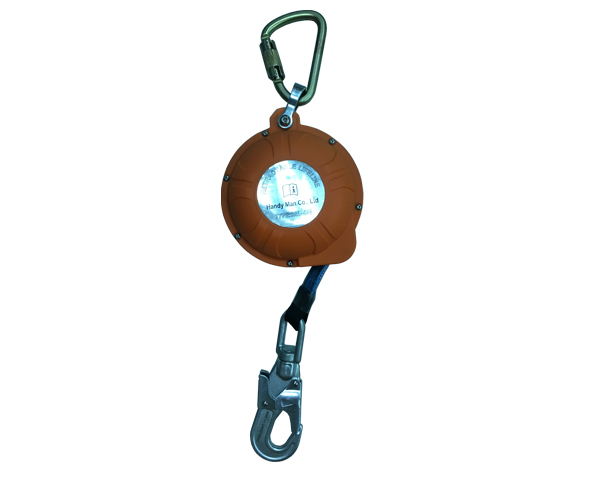

SRL-6WebbingSRL-6Webbing Self-Retracting Lifeline, 6 m Dyneema Webbing
The SRL-6Webbing is a self-retracting lifeline that uses 6 m of 19 mm Dyneema webbing instead of wire rope, with a net weight of 1.8 kg. Stated to meet EN 360, it limits dynamic force to 6 kN maximum and suits workers who want a lighter fall arrest block.
View product
Frequently asked questions
- What does EN 360 require of a self-retracting lifeline?
- EN 360 is the European standard for retractable type fall arresters. Among its dynamic performance requirements, the arrest force must not exceed 6 kN, and the device must arrest the fall within a limited distance. The standard was revised in 2023, so buyers should check which edition a product's certification refers to.
- Should I choose a wire rope or webbing SRL?
- Galvanised wire rope resists abrasion, dirt and grease well and is common on longer units used in construction and heavy industry. Webbing units, including those with Dyneema webbing, are much lighter and gentler on surfaces, but are more vulnerable to cutting and heat. Choose based on the work environment, the length needed and whether any edge exposure is expected.
- How long should the lifeline be?
- Short 2 m to 3 m units suit work close below an overhead anchor and are light enough to carry easily. Longer 10 m to 20 m units cover a wide working radius or deep vertical access from one anchor, but require more attention to swing fall and clearance below the user. Pick the shortest length that covers the work area.
- What is ANSI/ASSP Z359.14 Class 1 and Class 2?
- Under ANSI/ASSP Z359.14-2021, Class 1 self-retracting devices are for anchorages at or above the dorsal D-ring, while Class 2 devices may be anchored above or below it and must be suitable for edge use. Products sold in North America need to be evaluated to this standard separately from EN 360.
- What is the rescue tripod used for?
- A rescue tripod sets up a temporary overhead anchor above a manhole, shaft or tank opening, so a worker can be lowered in and retrieved with a winch or retrieval-type fall arrester. Tripods of this kind are commonly assessed as EN 795 Type B transportable anchor devices. Specify the winch and any fall arrester to be supplied with it when requesting a quotation.
