AP-010 Aluminium Alloy Pulley, 20 kN

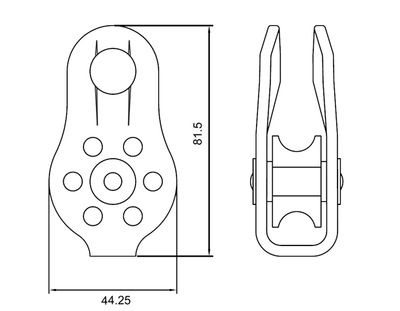

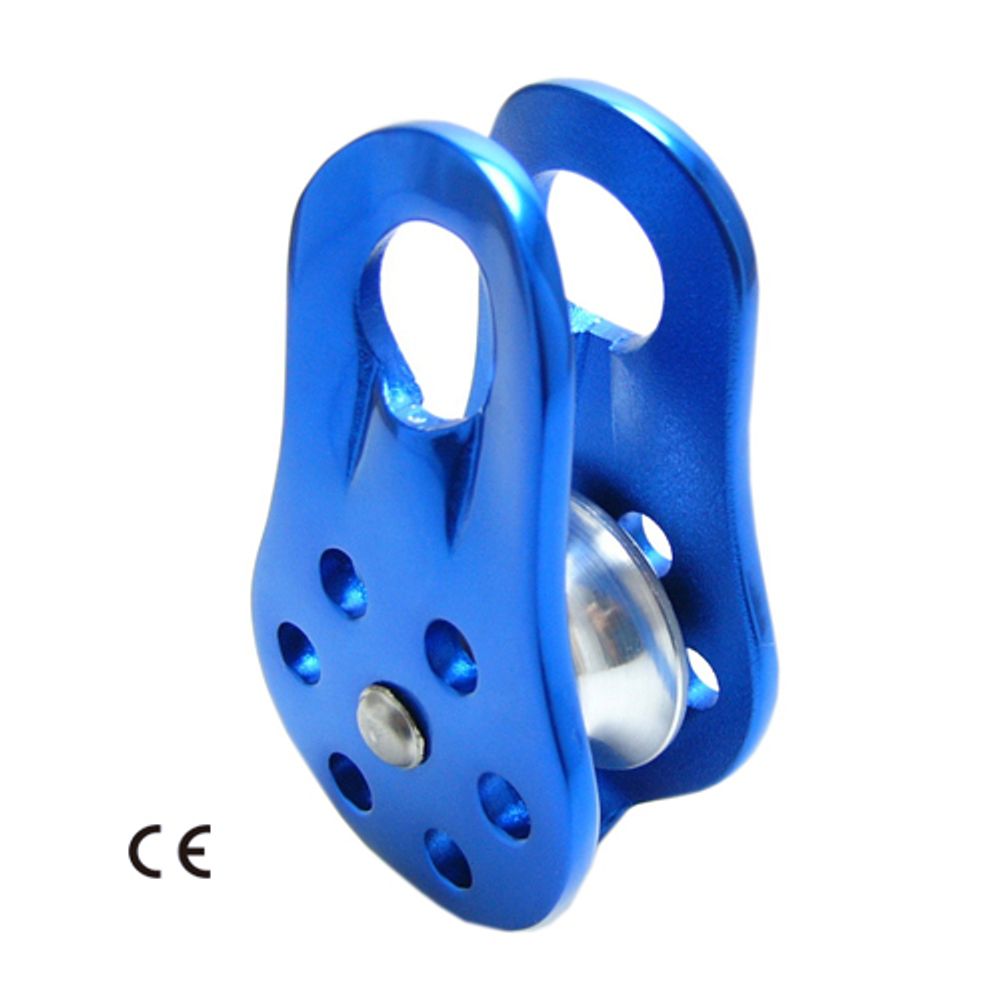

AP-010 has aluminium alloy side plates, a 20 kN breaking strength and capacity for 13 mm rope. The photograph shows a compact design with lightening holes in the side plates; the second image is a dimension drawing with front and side views.

At 20 kN, AP-010 sits at the entry level of the pulley range, alongside AP-041, and below the 25-40 kN models. That makes it a practical choice for redirects, training rigs, light hauling and tensioning where system loads are modest and well understood. Users should remember that a rope turning 180 degrees around the pulley can load the attachment point with nearly twice the rope tension.

Buyers should confirm the rope diameter range and sheave type for their application and state whether a standard such as EN 12278 for mountaineering pulleys is required. Power Honour can supply AP-010 under a customer brand with colour and marking options, or modify it to a drawing.
