Carabiners
A715KSG Aluminium Key-Lock Screw-Gate Climbing Carabiner
A715KSG is a compact aluminium alloy climbing carabiner with a key-lock nose and screw gate, weighing 50 g. It is rated at 25 kN major axis and 9 kN minor axis and gate open, which is high for its size, and suits belay devices, personal anchors and light locking roles.
Key features
- Key-lock nose, manual screw gate
- 25 / 9 / 9 kN (major / minor / gate open)
- 17.5 mm gate opening
- 98.5 x 61.2 mm, 50 g
Specifications
| Property | Value |
|---|---|
| Material | Aluminium alloy |
| Breaking strength (major axis / minor axis / gate open) | 25 kN / 9 kN / 9 kN |
| Gate opening | 17.5 mm |
| Length | 98.5 mm |
| Width | 61.2 mm |
| Weight | 50 g |
Product details

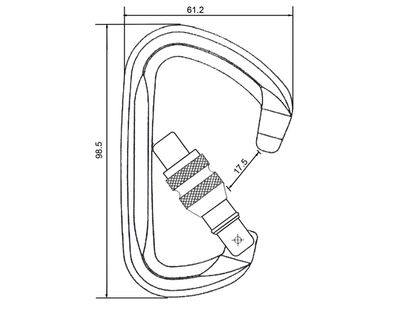

A715KSG is specified as a climbing carabiner. Its aluminium alloy frame measures 98.5 x 61.2 mm, weighs 50 g and has a 17.5 mm screw-gate opening. Listed strengths are 25 kN major axis, 9 kN minor axis and 9 kN gate open.

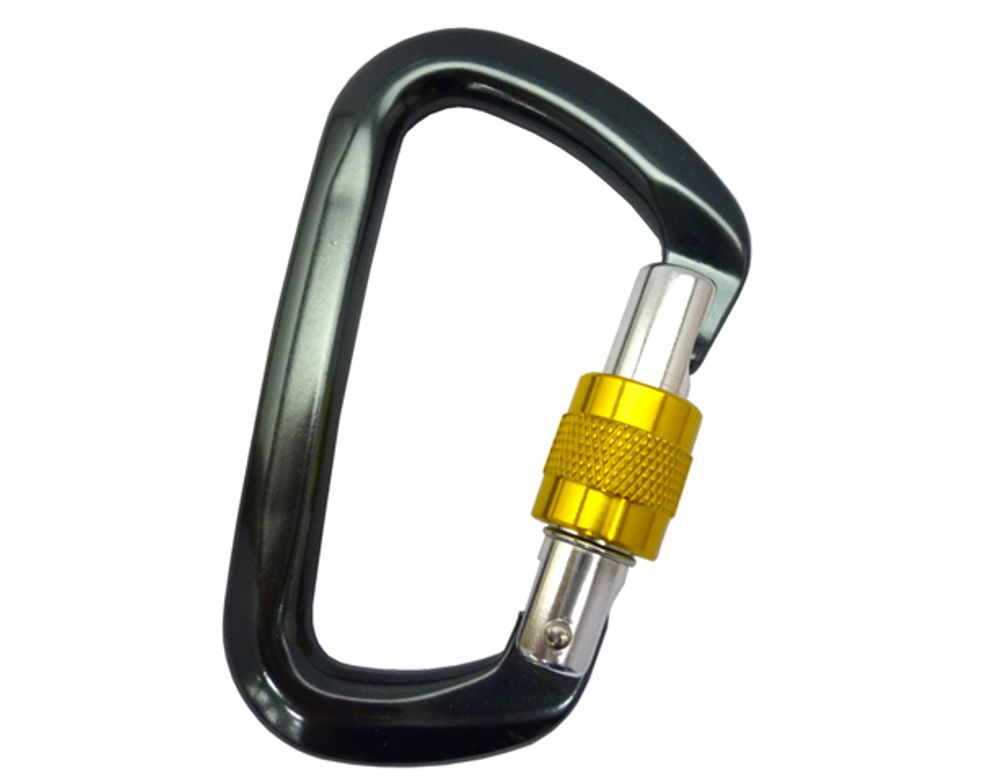

For a 50 g locking carabiner, the 9 kN minor-axis and gate-open values are notable; they give extra margin if the connector is cross-loaded or the gate is accidentally open under load. The compact D-style frame shown in the photo keeps the load near the spine, while the key-lock nose prevents snagging on harness loops and slings.
Typical roles include attaching a belay device, building a personal anchor, clipping a pack or tool, and serving as a light locker on alpine racks. In your RFQ, state the certification required, sleeve and body colours and the marking. Power Honour can supply A715KSG as an OEM or private-label carabiner or modify it to a customer drawing.
