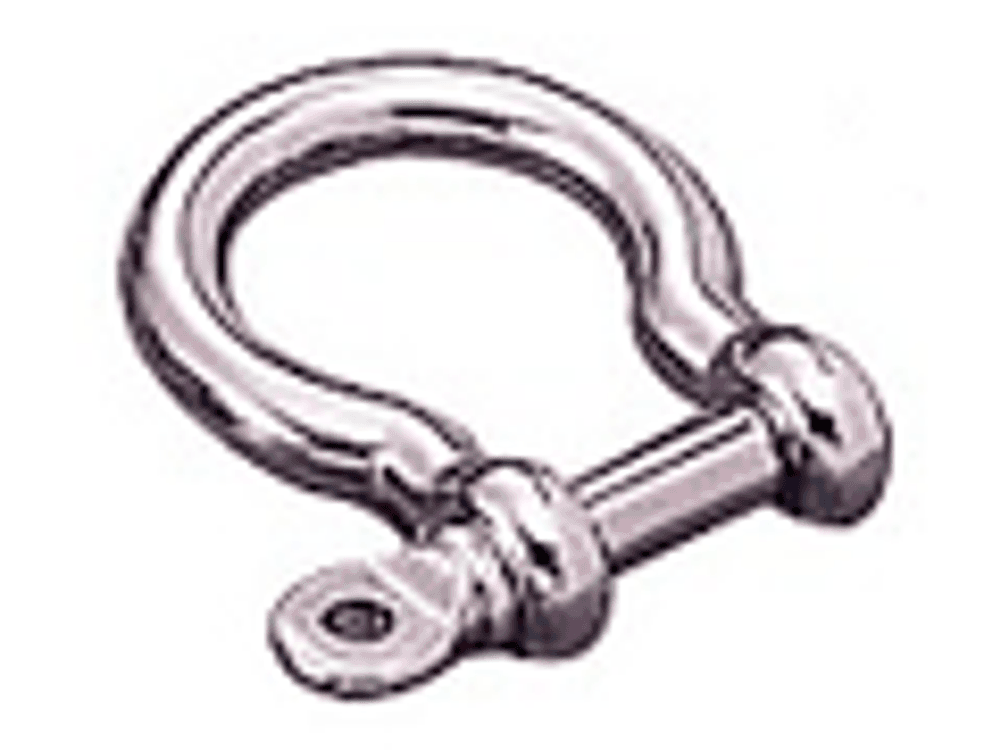

SS911 316 Stainless Steel Anchor (Bow) Shackle
The SS911 is an anchor shackle, also called a bow shackle, made from AISI 316 stainless steel in six sizes from 4 mm (5/32 in.) to 12 mm (15/32 in.). Its rounded bow leaves room for several attachments, and listed breaking loads run from 750 kg to 7200 kg.
Key features
- AISI 316 stainless steel
- Anchor (bow) shackle
- Six sizes from 4 to 12 mm
- Listed breaking loads 750 to 7200 kg
Specifications
| Property | Value |
|---|---|
| Material | Stainless steel 316 (AISI 316) |
| Type | Anchor (bow) shackle |
| Size 4 mm (5/32 in.) | B 8, R 14, d 8, L 16 mm; breaking load 750 kg |
| Size 5 mm (3/16 in.) | B 10, R 17, d 10, L 20 mm; breaking load 1300 kg |
| Size 6 mm (1/4 in.) | B 12, R 21, d 12, L 24 mm; breaking load 1800 kg |
| Size 8 mm (5/16 in.) | B 16, R 28, d 16, L 32 mm; breaking load 3500 kg |
| Size 10 mm (13/32 in.) | B 20, R 34, d 20, L 40 mm; breaking load 5400 kg |
| Size 12 mm (15/32 in.) | B 24, R 42, d 24, L 48 mm; breaking load 7200 kg |
Product details

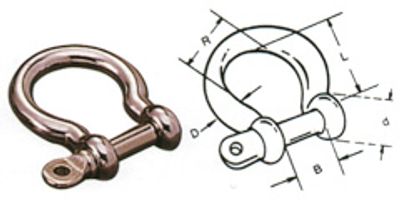

SS911 has the rounded bow that gives anchor shackles their name, made in AISI 316 stainless steel. Six sizes are listed by D: 4, 5, 6, 8, 10 and 12 mm (5/32 to 15/32 in.). The drawing gives B (8 to 24 mm), R (14 to 42 mm), d (8 to 24 mm) and overall length L (16 to 48 mm).
Listed breaking loads are 750, 1300, 1800, 3500, 5400 and 7200 kg from the smallest size to the largest. Compared with a D shackle, the wider bow leaves room for two or more lines, slings or eyes and copes better with a load that is not exactly in line with the pin, although side loading still reduces capacity. That makes the bow shape a common choice for anchor rodes, mooring chains, sail tacks and shade-sail corners. The breaking loads are not working load limits; a safety factor appropriate to the use must be applied.
Power Honour can supply the SS911 under a private label or to a customer's modified drawing. The D-shaped equivalent is SS910.
