Stainless Steel Shackles

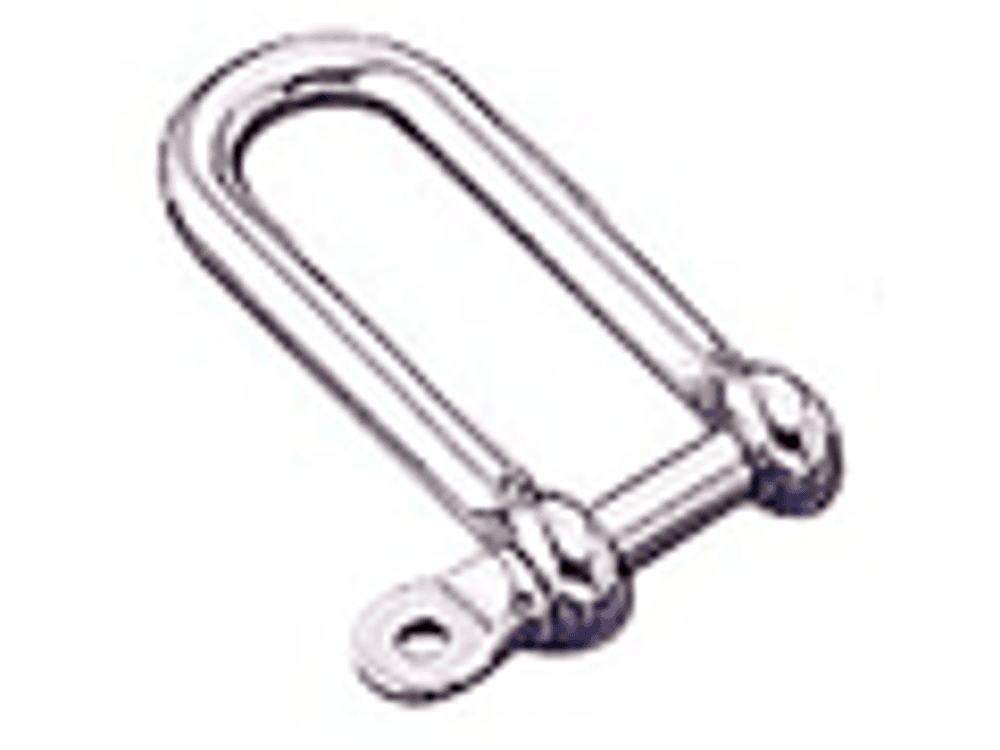

SS9101 316 Stainless Steel Long D Shackle
The SS9101 is a long-type D shackle in AISI 316 stainless steel, in five sizes from 4 mm (5/32 in.) to 10 mm (13/32 in.). Its longer body leaves more room inside the shackle for thick eyes, toggles or several attachments, and breaking loads of 800 kg to 3200 kg are listed for the 4 to 8 mm sizes.
Key features
- AISI 316 stainless steel
- Long-body D shackle
- Five sizes from 4 to 10 mm
- Listed breaking loads 800 to 3200 kg (4 to 8 mm)
Specifications
| Property | Value |
|---|---|
| Material | Stainless steel 316 (AISI 316) |
| Type | Long D shackle |
| Size 4 mm (5/32 in.) | B 8, L 22 mm; breaking load 800 kg |
| Size 5 mm (3/16 in.) | B 10, L 29 mm; breaking load 1100 kg |
| Size 6 mm (1/4 in.) | B 12, L 33 mm; breaking load 1600 kg |
| Size 8 mm (5/16 in.) | B 16, L 45 mm; breaking load 3200 kg |
| Size 10 mm (13/32 in.) | B 20, L 55 mm |
Product details

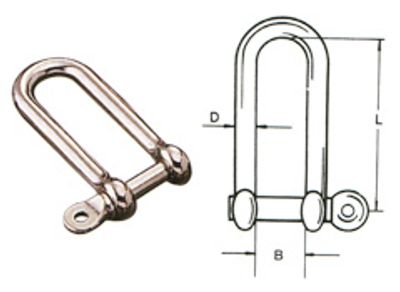

SS9101 is the long version of the stainless D shackle, made from AISI 316 stainless steel. Five sizes are listed by D: 4 mm (5/32 in.), 5 mm (3/16 in.), 6 mm (1/4 in.), 8 mm (5/16 in.) and 10 mm (13/32 in.), with B from 8 to 20 mm and overall length L from 22 to 55 mm. At 5 mm, L is 29 mm, against 20 mm for the standard SS910 D shackle.
Breaking loads (BL) are listed as 800 kg for 4 mm, 1100 kg for 5 mm, 1600 kg for 6 mm and 3200 kg for 8 mm; no figure is given for the 10 mm size. These are breaking loads, not working load limits, and a suitable safety factor has to be applied for each application. The extra length helps where the shackle must pass through a thick eye, padeye or toggle, or carry more than one attachment, as in sail, block and mooring connections.
Power Honour can produce the SS9101 under a private label, with marking to the buyer's specification, or to a modified drawing.
