TP-973 Aluminium Tandem Pulley, 22 or 25 kN

The TP-973 case is aluminium alloy and the images show a tandem layout, with two sheaves set in line between curved side plates. Sheaves can be specified in aluminium or stainless steel, and the breaking strength is listed as 22 or 25 kN depending on the option chosen; buyers should confirm which rating applies to which sheave material. Rope size is 13 mm. A dimension drawing is included as the second image.

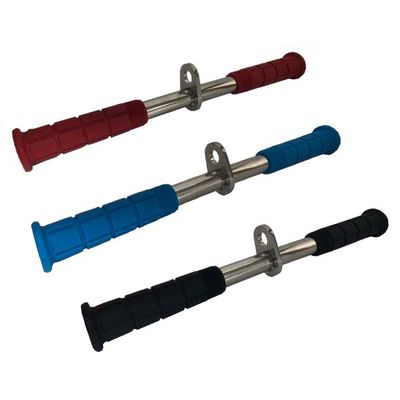

Running two sheaves in line spreads the load along the rope and keeps the pulley stable when it travels, which is why tandem pulleys are used on tyrolean traverses, guiding lines, highline rescues and zip-line trolley set-ups in adventure parks. The product images of the HAN-972 handlebar show a TP-973 used as a zip-line trolley.

Buyers should state the line type, the sheave material for each order, colour and marking, and the compliance route for their market, for example EN 12278 for mountaineering pulleys or EN 15567 for ropes courses. Power Honour can manufacture TP-973 for private-label ranges and adapt it to a customer drawing where needed.
