G80 Lifting Components

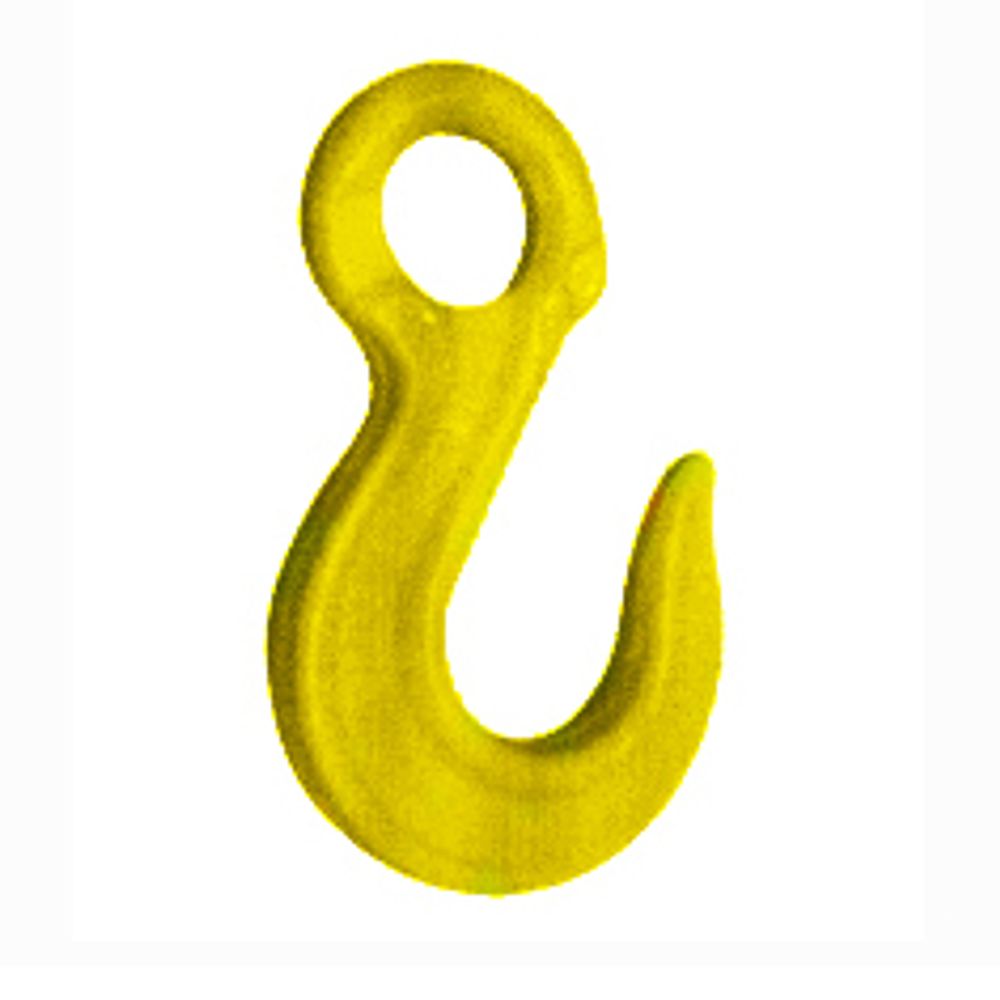

4900A Eye Hook, A-327 Type
The 4900A (Art. No. 4900A) is an eye hook of the A-327 type for lifting and rigging assemblies. Four sizes are listed from 5/6-8 (WLL 1.5 ton) to 13-8 (WLL 5.4 ton).
Key features
- Eye hook, A-327 type
- Four sizes from 5/6-8 to 13-8
- WLL from 1.5 ton to 5.4 ton
- Net weight from 0.244 kg to 1.660 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 5/6-8 | WLL 1.5 ton, net weight 0.244 kg |
| Size 7/8-8 | WLL 2.0 ton, net weight 0.400 kg |
| Size 10-8 | WLL 3.2 ton, net weight 0.820 kg |
| Size 13-8 | WLL 5.4 ton, net weight 1.660 kg |
Product details
The 4900A eye hook is catalogued as an A-327 type and listed in four sizes. The 5/6-8 size, for 5 or 6 mm chain, is rated at 1.5 ton with a net weight of 0.244 kg. The 7/8-8 size carries 2.0 ton at 0.400 kg, the 10-8 size 3.2 ton at 0.820 kg, and the 13-8 size 5.4 ton at 1.660 kg. Minimum breaking load is four times the working load limit.
An eye hook connects through its eye to a link, shackle, master link or wire rope thimble, which makes it adaptable to chain, rope and textile sling assemblies as well as to hoisting equipment. Applications include general lifting, rigging and material handling in workshops, construction and maintenance. The 4900A is lifting hardware and should not be used for personal fall protection.
Buyers should confirm the throat opening, eye size and whether a latch is needed for their application. The 4900A can be supplied under OEM or private label, or modified to a customer drawing.
