G80 Lifting Components
4800A Eye Sling Hook with Latch, Inch Sizes

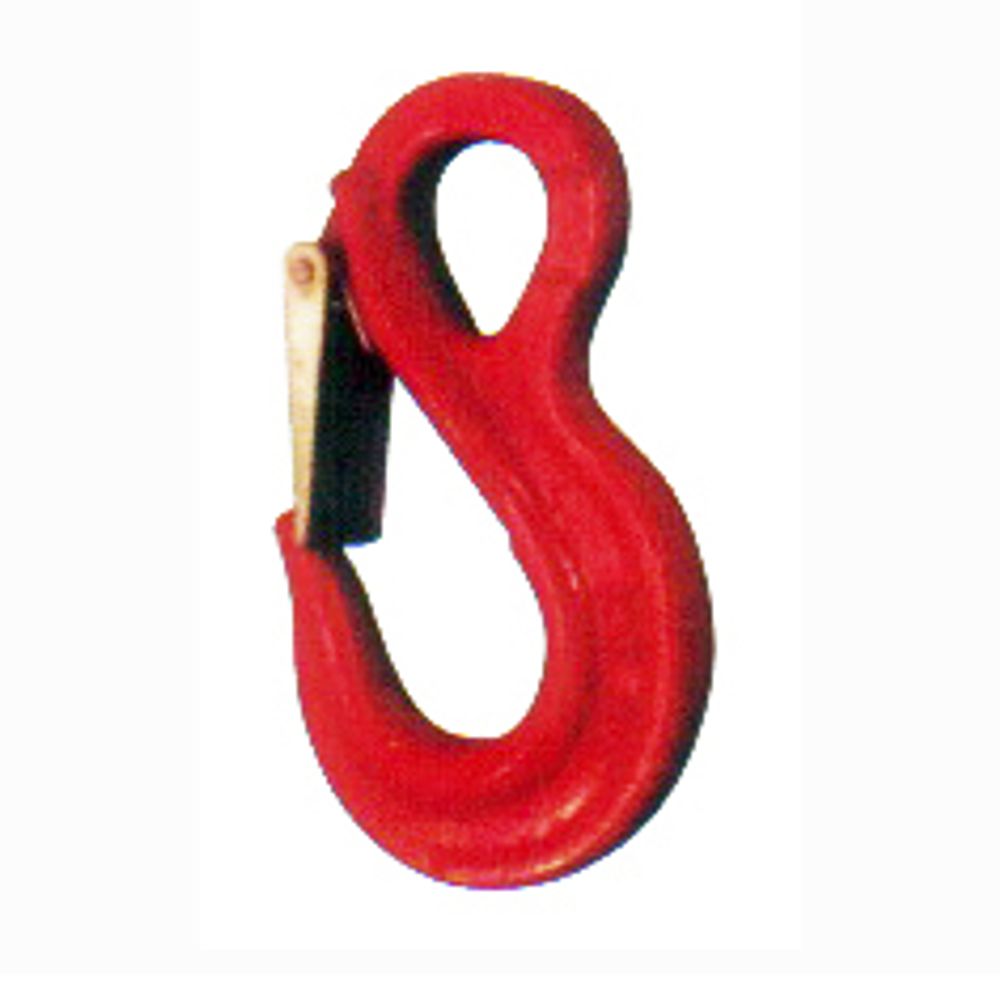

The 4800A (Art. No. 4800A) is an eye sling hook with a latch in inch sizes for chain and rope sling assemblies. Three sizes are listed from 9/32-5/16 in (WLL 4400 lb) to 1/2 in (WLL 12000 lb).
Key features
- Eye sling hook with latch
- Sizes 9/32-5/16 in, 3/8 in and 1/2 in
- WLL from 4400 lb to 12000 lb
- Net weight from 0.50 kg to 1.91 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 9/32-5/16 in | WLL 4400 lb, net weight 0.50 kg |
| Size 3/8 in | WLL 7700 lb, net weight 1.04 kg |
| Size 1/2 in | WLL 12000 lb, net weight 1.91 kg |
Product details
The 4800A eye sling hook with latch is listed in three inch sizes. The 9/32-5/16 in hook has a working load limit of 4400 lb and weighs 0.50 kg; the 3/8 in hook is rated at 7700 lb and 1.04 kg; and the 1/2 in hook at 12000 lb and 1.91 kg. Minimum breaking load is four times the WLL.
The eye end joins a connecting link, master link or thimble, and the latch closes the hook throat to help retain a slack sling. These hooks are used on chain and wire rope slings for construction, logistics and general lifting. The 4800A is lifting hardware, not fall-arrest equipment.
Buyers should confirm the chain or rope size and grade, the connector for the eye and any marking needs for their market. The 4800A can be produced as OEM or private-label hardware, or adapted to a drawing.
