4700A Eye Sling Hook with Wing

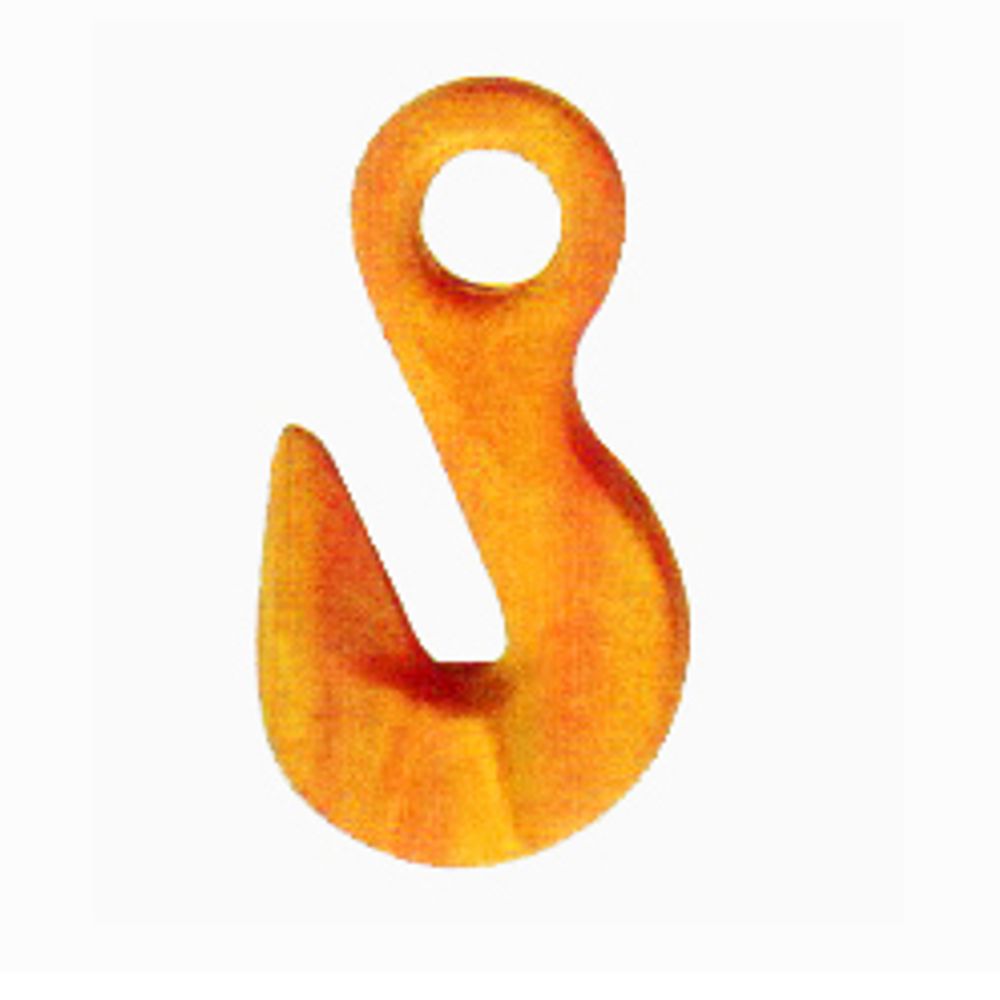

The 4700A (Art. No. 4700A) is an eye sling hook with a wing feature for chain and rope sling assemblies. Six sizes are listed from 6-8 (WLL 1.5 ton) to 20-8 (WLL 12.8 ton).
Key features
- Eye sling hook with wing
- Six sizes from 6-8 to 20-8
- WLL from 1.5 ton to 12.8 ton
- Net weight from 0.135 kg to 3.880 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 6-8 | WLL 1.5 ton, net weight 0.135 kg |
| Size 7/8-8 | WLL 2.0 ton, net weight 0.230 kg |
| Size 10-8 | WLL 3.2 ton, net weight 0.725 kg |
| Size 13-8 | WLL 5.4 ton, net weight 1.340 kg |
| Size 16-8 | WLL 8.2 ton, net weight 2.100 kg |
| Size 20-8 | WLL 12.8 ton, net weight 3.880 kg |
Product details
Six sizes are published for the 4700A eye sling hook with wing. The 6-8 hook is rated at 1.5 ton and weighs only 0.135 kg; the 7/8-8 at 2.0 ton; the 10-8 at 3.2 ton; the 13-8 at 5.4 ton; the 16-8 at 8.2 ton; and the 20-8 at 12.8 ton with a net weight of 3.880 kg. Minimum breaking load is four times the working load limit.
Buyers should check the drawing to see how the wing relates to the latch or hook body before specifying it. The eye end connects to chain through a connecting link, or to a master link or thimble. Uses include chain and wire rope slings for construction, logistics and general lifting. The 4700A is lifting hardware and is not designed for personal fall protection.
In an RFQ, give the chain size and grade, the connector that will join the eye and marking requirements. The 4700A can be supplied as OEM or private label, or to a drawing.
