G80 Lifting Components

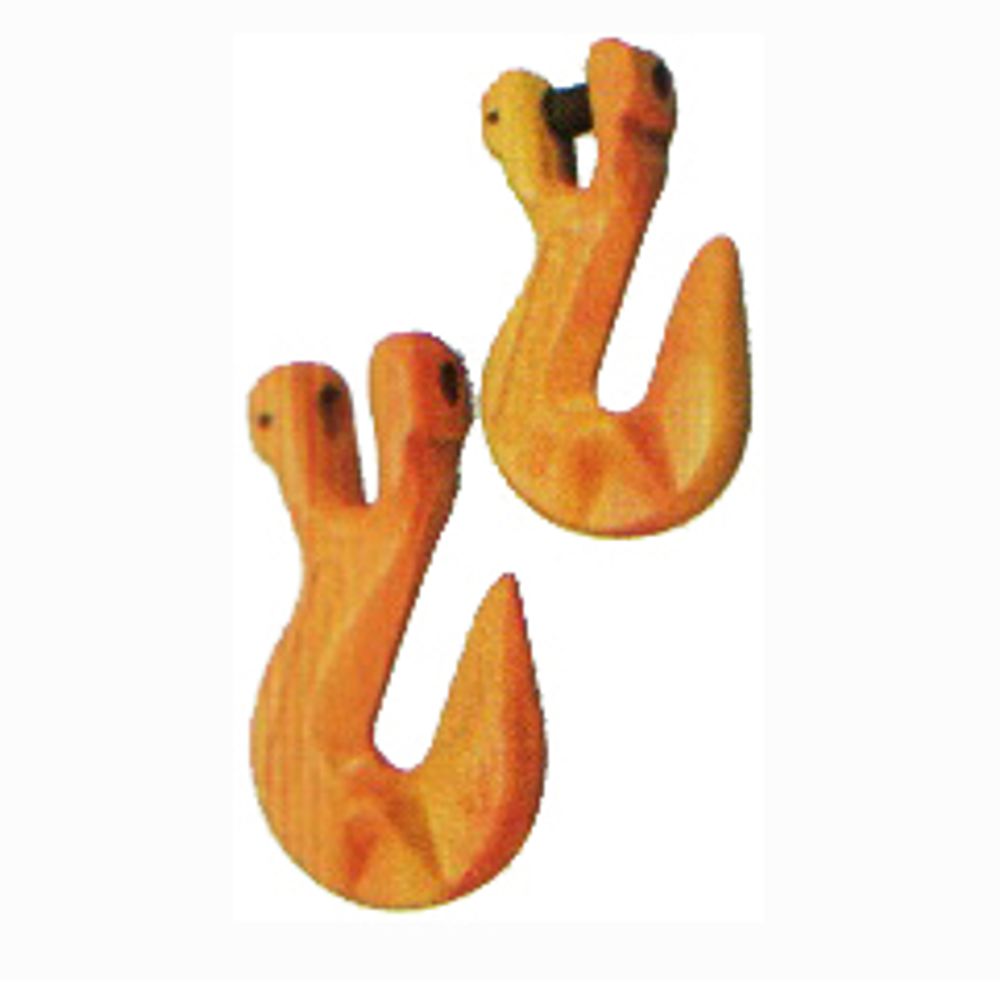

4600A Clevis Grab Shortening Hook
The 4600A (Art. No. 4600A) is a clevis grab shortening hook used to adjust chain length in slings and rigging. Six sizes are listed from 6-8 (WLL 1.2 ton) to 20-8 (WLL 12.8 ton).
Key features
- Clevis grab shortening hook
- Six sizes from 6-8 to 20-8
- WLL from 1.2 ton to 12.8 ton
- Net weight from 0.175 kg to 4.100 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 6-8 | WLL 1.2 ton, net weight 0.175 kg |
| Size 7/8-8 | WLL 2.0 ton, net weight 0.350 kg |
| Size 10-8 | WLL 3.2 ton, net weight 0.720 kg |
| Size 13-8 | WLL 5.4 ton, net weight 1.330 kg |
| Size 16-8 | WLL 8.2 ton, net weight 2.650 kg |
| Size 20-8 | WLL 12.8 ton, net weight 4.100 kg |
Product details
Pinned to the chain by its clevis, the 4600A grab shortening hook holds a chain link in its narrow throat so a leg can be shortened at any point. The 6-8 size has a working load limit of 1.2 ton and weighs 0.175 kg; 7/8-8 is rated at 2.0 ton, 10-8 at 3.2 ton, 13-8 at 5.4 ton and 16-8 at 8.2 ton; and 20-8 carries 12.8 ton at 4.100 kg. Minimum breaking load is four times the working load limit.
Shortening hooks let riggers level loads with an off-centre centre of gravity, adjust leg lengths on multi-leg slings and take up slack chain. They are used in construction, precast, machinery installation and general lifting. Check whether the design supports the chain fully in the throat or requires a reduction in rated capacity, as this varies by hook design. The 4600A is lifting hardware, not fall protection equipment.
Buyers should state the chain size and grade and where the hook will be fitted. The 4600A can be produced as OEM or private label, or adapted to a drawing.
Related products
All products in G80 Lifting Components →
Art. No. 4700A4700A Eye Sling Hook with Wing
View product
Art. No. 320C320C Forged Carbon Steel Eye Hoist Hook
View product
Art. No. 4800A4800A Eye Sling Hook with Latch, Inch Sizes
View product
Art. No. 320A320A Forged Alloy Steel Eye Hoist Hook
View product
Art. No. 4900A4900A Eye Hook, A-327 Type
View product
Art. No. 318A318A Grade 8 Swivel Self-Locking Hook
View product

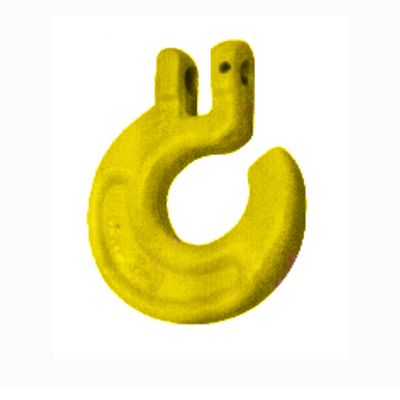

Art. No. 5000A5000A Clevis Hook Type C
