G80 Lifting Components

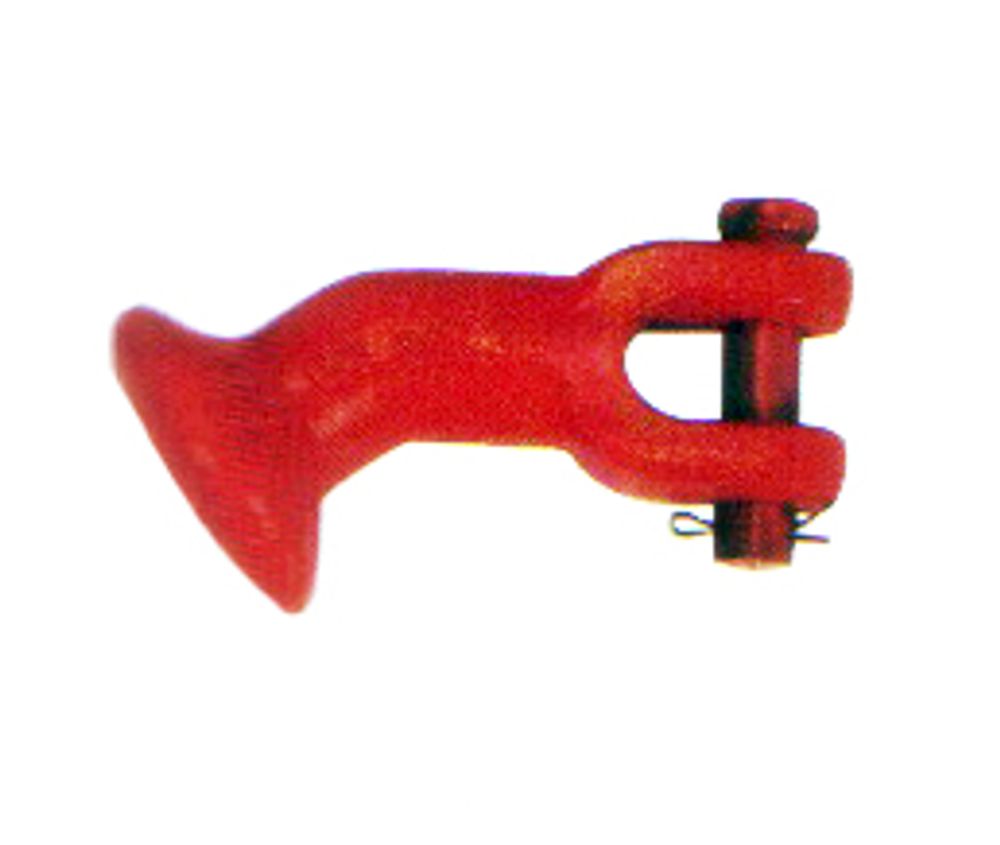

5301A Clevis Elephant Foot, Forged Carbon Steel Body
The 5301A (Art. No. 5301A) is a clevis elephant foot fitting with a forged carbon steel body and a forged alloy steel pin, used in lifting assemblies. It has a 30 mm body diameter, a working load limit of 4.0 ton and a minimum breaking load of five times the WLL.
Key features
- Forged carbon steel body
- Forged alloy steel pin
- Body diameter 30 mm
- WLL 4.0 ton, net weight 0.9 kg
- Minimum breaking load 5 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 5 × working load limit (WLL) |
| Body material | Forged carbon steel |
| Pin material | Forged alloy steel |
| Body diameter | 30 mm |
| Working load limit (WLL) | 4.0 ton |
| Net weight | 0.9 kg |
Product details
The 5301A has a forged carbon steel body and a forged alloy steel pin. The fitting has a 30 mm body diameter, a working load limit of 4.0 ton and a net weight of 0.9 kg. Its minimum breaking load is five times the WLL, a higher ratio than the 4:1 used on most Grade 80 items in this range.
The clevis end allows the elephant foot to be pinned to chain or another fitting. Buyers should check the drawing to confirm that the geometry suits their lifting or rigging assembly; an eye-type counterpart is listed as the 5201A. The 5301A is lifting hardware and is not intended for personal fall protection.
When specifying, give the WLL required, the chain or fitting the clevis must accept and any requirement for marking, proof testing or surface finish. Power Honour forges and machines steel components in-house and can supply the 5301A as OEM or private label, or to a modified drawing.
