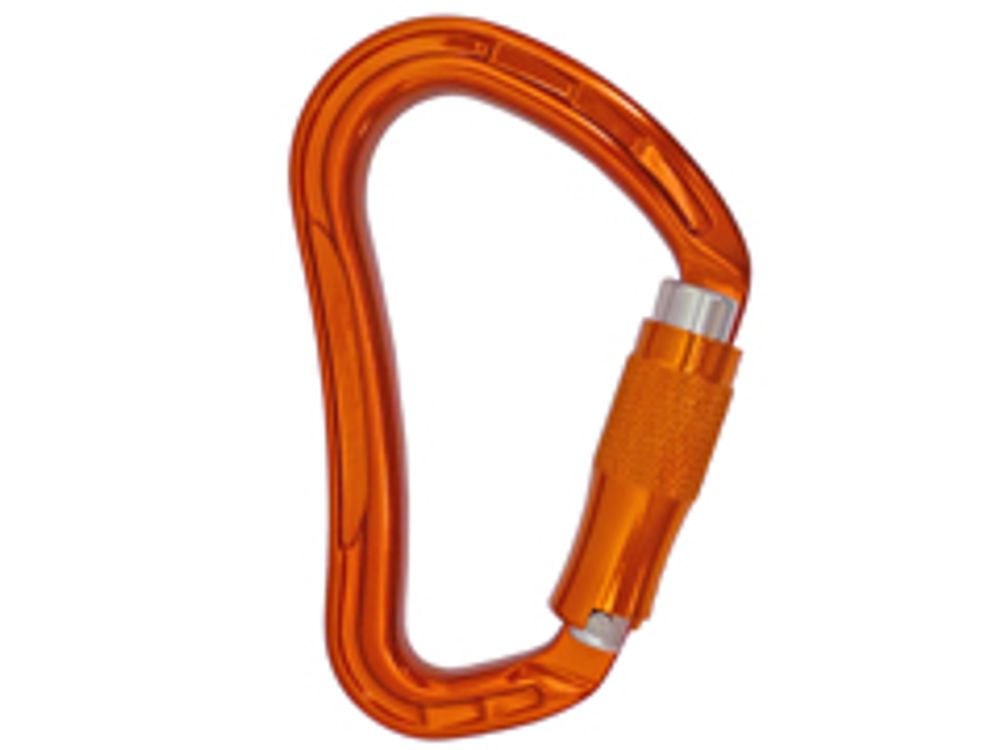

A12225KTL 7075 Aluminium Key-Lock Twist-Lock Carabiner

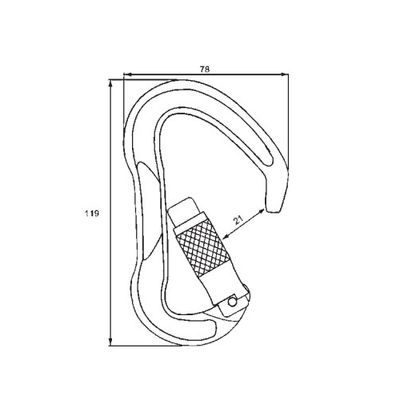

A12225KTL is listed with a 7075 aluminium alloy frame measuring 119 x 78 mm, a 21 mm twist-lock gate opening and a weight of 90 g. Its strengths are 28 kN along the major axis, 8 kN across the minor axis and 8 kN with the gate open.

These figures closely match A12224KTL, which opens to 21.5 mm; the two codes may differ in gate or sleeve details that are not captured in the specification, so ask for both drawings if you are choosing between them. The twist-lock sleeve relocks on release, removing the risk of an unlocked gate, and the key-lock nose keeps the gate from catching on slings and harness loops.

Large, high-strength self-locking connectors like this are used for belaying, rescue systems, rope-access and work-positioning set-ups, and anchor master points. Before ordering, confirm the certification the finished connector must carry, the destination market, colour scheme and marking. Power Honour can manufacture A12225KTL for private-label programmes or adapt it to a customer drawing.
