Carabiners

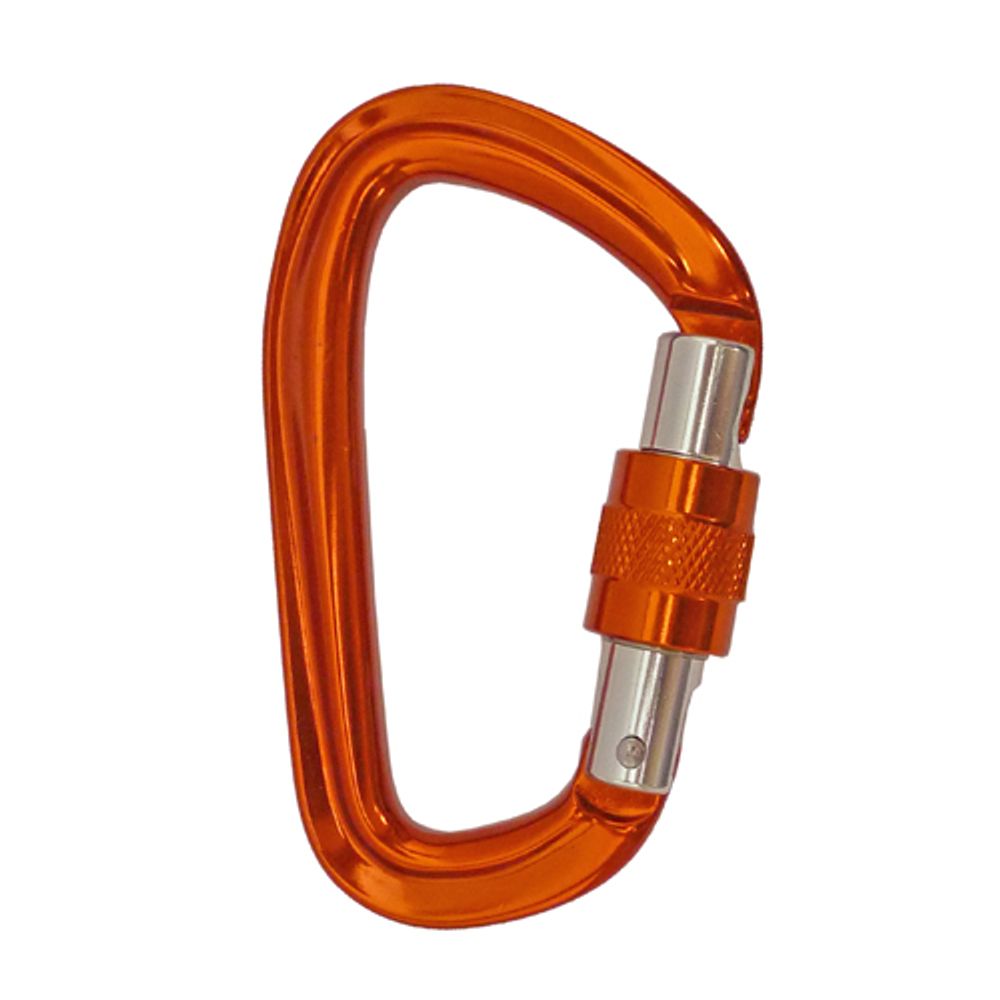

A005KSG 7075 Aluminium Key-Lock Screw-Gate Carabiner
A005KSG is a compact 7075 aluminium alloy screw-gate carabiner with a key-lock nose, weighing 50 g. It is rated at 24 kN major axis and 8 kN minor axis and gate open, making it a light locking connector for alpine, climbing and equipment-attachment roles.
Key features
- 7075 aluminium alloy
- Key-lock nose, manual screw gate
- 24 / 8 / 8 kN (major / minor / gate open)

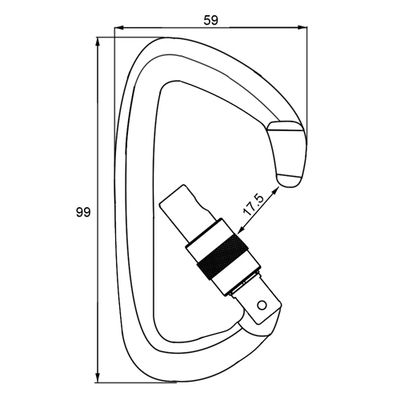

- 17.5 mm opening, 99 x 59 mm, 50 g
Specifications
| Property | Value |
|---|---|
| Material | 7075 aluminium alloy |
| Breaking strength (major axis / minor axis / gate open) | 24 kN / 8 kN / 8 kN |
| Gate opening | 17.5 mm |
| Length | 99 mm |
| Width | 59 mm |
| Weight | 50 g |
Product details
At 50 g, A005KSG is one of the lightest locking carabiners in the range. Its 7075 aluminium alloy frame measures 99 x 59 mm, the screw gate opens to 17.5 mm, and the listed strengths are 24 kN major axis, 8 kN minor axis and 8 kN gate open.
A small locking connector like this is often carried where weight counts: securing a belay device or personal anchor, clipping a pack or tool, or as a light locking option on alpine and ski-mountaineering racks. The manual screw sleeve keeps the user in control of locking, and the key-lock nose avoids snagging on slings and gear loops. The compact size limits how much can be clipped into it, so it is less suited to busy anchor points than larger pear-shaped models.
A005KSG shares its frame with the non-locking A005KNS. Specify the certification and market requirements, sleeve and body colours and marking in your RFQ. Power Honour can produce the model for OEM and private-label programmes or modify it to a supplied drawing.
