SS930 316 Stainless Steel Frame Turnbuckle, Eye and Hook Ends

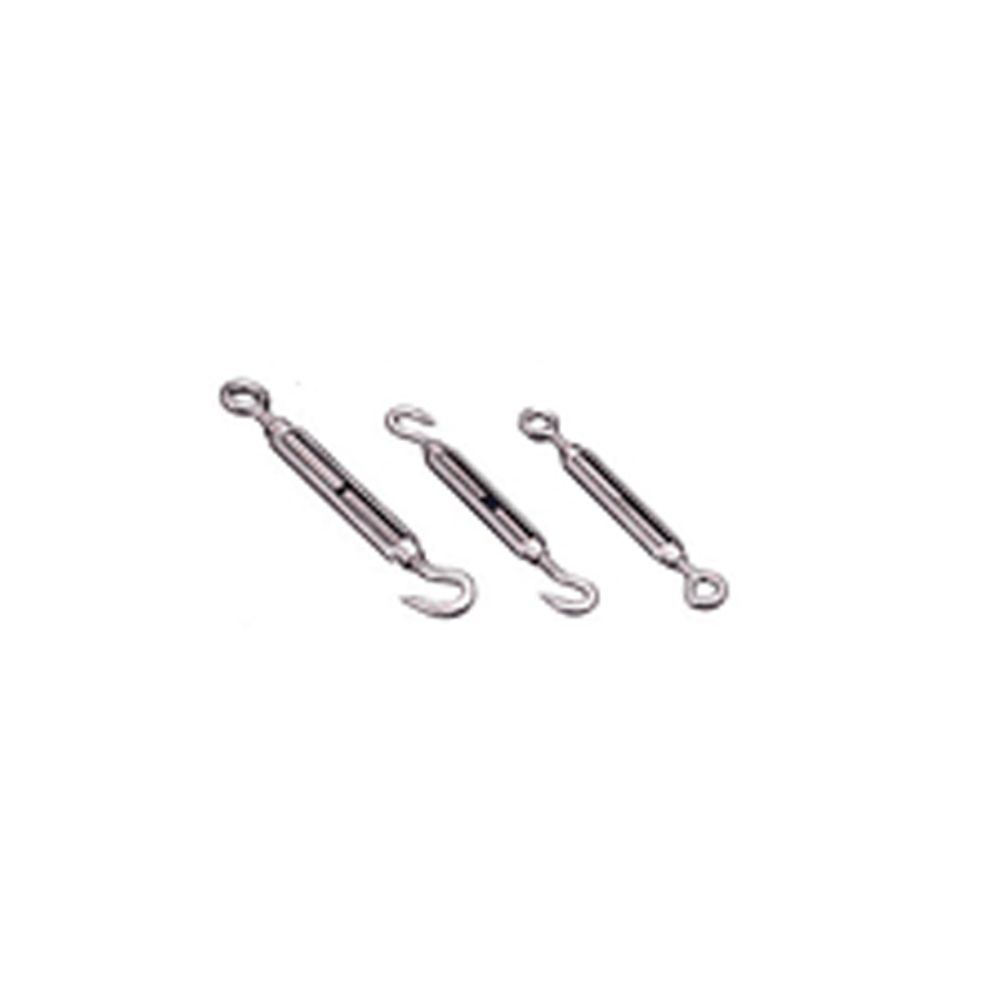

The SS930 is a frame-type turnbuckle in AISI 316 stainless steel, offered in three end combinations (eye and eye, hook and eye, hook and hook) and eight sizes from 4 to 19. It is a general-purpose tensioner for wire rope, cable and rigging lines.
Key features
- AISI 316 stainless steel
- Frame (open-body) turnbuckle
- Eye and eye, hook and eye, hook and hook
- Eight sizes from 4 to 19
Specifications
| Property | Value |
|---|---|
| Material | Stainless steel 316 (AISI 316) |
| Type | Frame turnbuckle |
| Versions | A) eye + eye; B) hook + eye; C) hook + hook |
| Size 4 | A 55, L 47, L1 98, L2 14, B 8, D 9 mm |
| Size 5 | A 70, L 52, L1 120, L2 13, B 8, D 9 mm |
| Size 6 | A 90, L 66, L1 160, L2 16, B 10, D 10 mm |
| Size 8 | A 120, L 94, L1 200, L2 20, B 14, D 11 mm |
| Size 9 | A 150, L 120, L1 240, L2 28, B 16, D 12 mm |
| Size 12 | A 200, L 168, L1 300, L2 36, B 18, D 14 mm |
| Size 16 | A 250, L 210, L1 390, L2 40, B 26, D 16 mm |
| Size 19 | A 300, L 253, L1 440, L2 50, B 30, D 18 mm |
Product details
SS930 is a frame (open-body) turnbuckle made from AISI 316 stainless steel, supplied in three versions: A with eye and eye ends, B with hook and eye, and C with hook and hook. All three share one table of eight sizes: 4, 5, 6, 8, 9, 12, 16 and 19. Across that range dimension A runs from 55 to 300 mm, L from 47 to 253 mm and L1 from 98 to 440 mm, with L2, B and D also dimensioned (14 to 50 mm, 8 to 30 mm and 9 to 18 mm).
Eye ends suit a permanent connection with a shackle or thimble, while hook ends can be slipped on and off an eye or ring. Typical uses include clothes and garden wires, fences, canopies, shade sails, signage and boat covers, and grade 316 copes with outdoor and marine exposure.
No load rating is published, so working loads should be confirmed for the application; the SS930 is not a lifting component. Power Honour can provide private-label supply or produce other end combinations to a drawing.
