Rope Pulleys & Zip-Line Trolleys
HAN-234 Aluminium Zip-Line Trolley with Handlebar, CE
HAN-234 is a zip-line trolley bundled with a handlebar, combining an aluminium alloy pulley case, a stainless steel sheave and a TPR-gripped bar. Rated for a 25 kN load on 13 mm rope and weighing 813 g, it is used for zip lines and overhead crossings in adventure parks, and it is listed with CE certification.
Key features
- Aluminium alloy case and bar plate, anodised
- Stainless steel sheave, TPR handle grips
- Load 25 kN, rope size 13 mm
- Weight 813 g, CE stated, custom colours available
Specifications
| Property | Value |
|---|---|
| Item no. | HAN-234 |
| Pulley case | Aluminium alloy |
| Pulley sheave | Stainless steel |
| Bar plate | Aluminium alloy |
| Bar handle | TPR |
| Aluminium standard finish | Anodised |
| Rope size | 13 mm |
| Load | 25 kN |
| Weight | 813 g |
| Colour | Custom colours available |
| Certificate | CE |
Product details

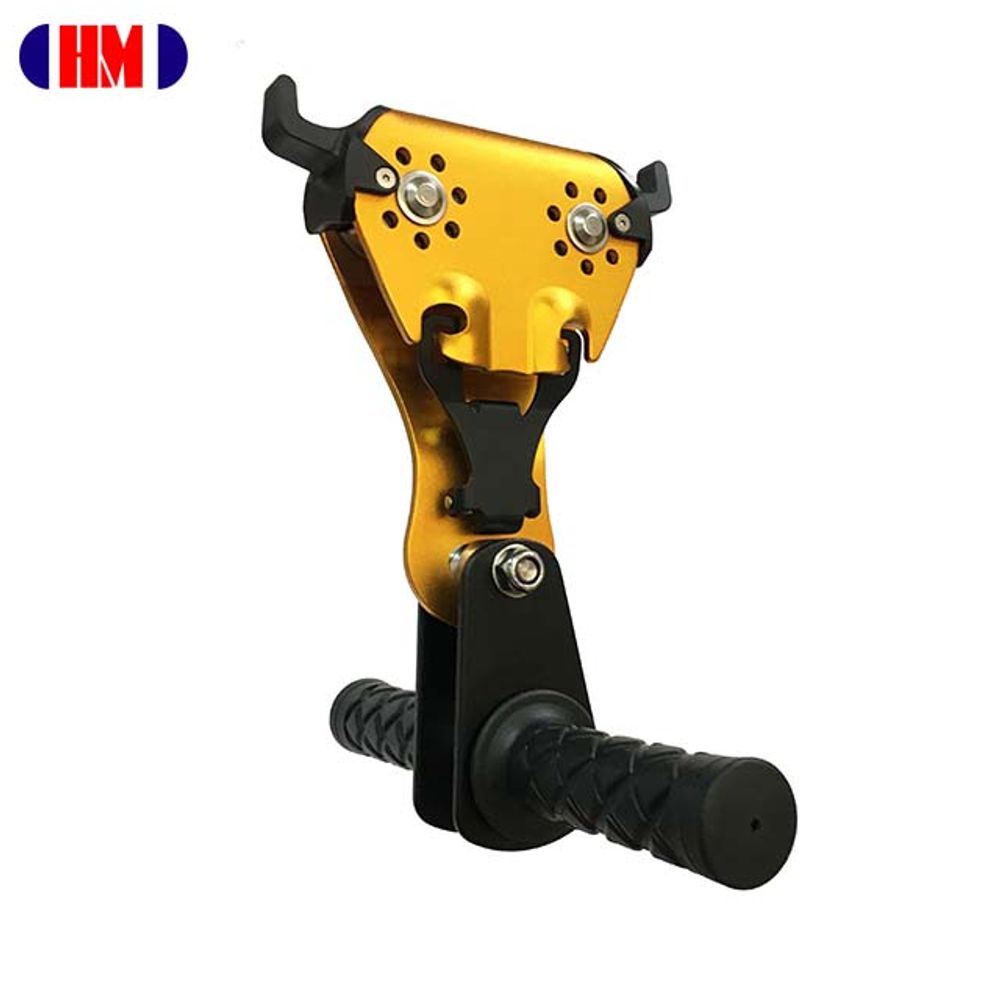

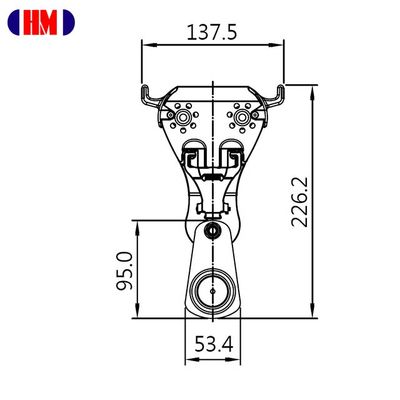

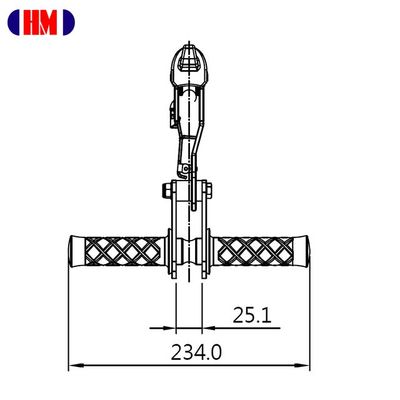

HAN-234 brings the trolley and handlebar together in one unit. The pulley case and bar plate are aluminium alloy with an anodised finish, the sheave is stainless steel and the bar handle has TPR grips. The load rating is 25 kN, the rope size 13 mm and the weight 813 g; custom colours are available and the product is listed with CE certification. The images show the trolley in yellow, a rider on a zip line and two dimension drawings.
A bundled trolley and handlebar simplifies kit for adventure parks, jungle and overhead-crossing courses and family zip lines: riders hold the bar while their harness and lanyard stay connected to the trolley. Zip lines within ropes courses are covered in Europe by EN 15567, and ASTM F2959 is a common reference in North America.
Buyers should specify line type and diameter, colour, braking arrangement and documentation needs for private-label supply. Power Honour can supply HAN-234 under a customer brand or modify it to a drawing.
Standards
- CE
As named in the product data. Confirm which certification the finished product must carry in your market before ordering.
