7352S Stainless Steel Delta Quick Link, 9 mm

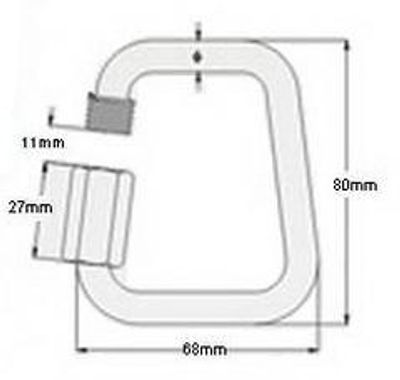

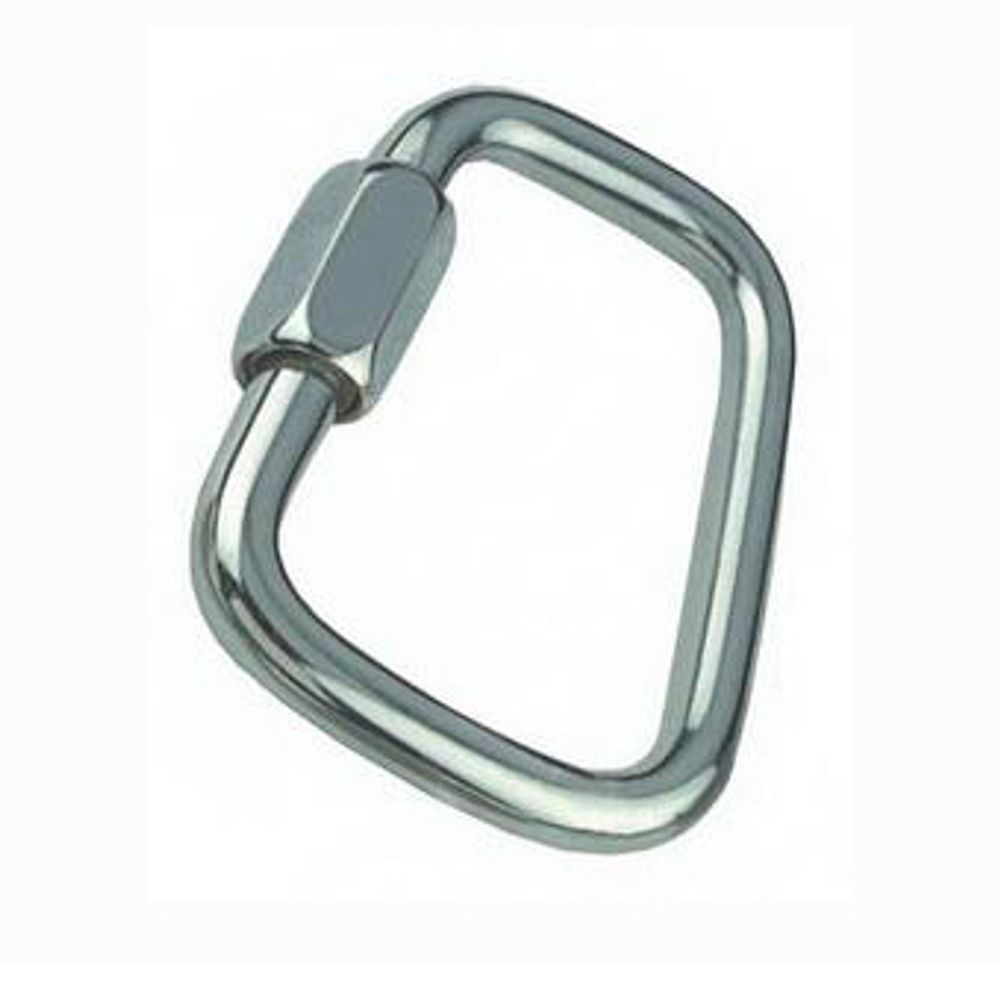

7352S is a 9 mm quick link with a delta (triangular) shape and a threaded closing sleeve. It is listed with a safe working load of 980 kg and a breaking load of 4900 kg, the same values as the 9 mm size in the 7353S square-link table, and can be made in SS316 or SS304. The photograph shows the delta outline; the second image is a dimension drawing giving the overall size.

A delta link spreads several connected items across its wide base and returns them to a single point at the apex, which makes it useful for gathering webbing loops, joining a bridle to a single attachment or making a semi-permanent connection that stays closed once the sleeve is tightened. Applications include harness and parachute assemblies, rescue and rope access rigging, and marine fittings, where SS316 is preferred for salt-water exposure.

Buyers should state the grade, quantity and any marking needed, and confirm the working load required by their own design. Power Honour can supply 7352S as OEM hardware or produce other sizes to a customer drawing.
