A777 Aluminium Alloy Parachute Connector, 18 kN

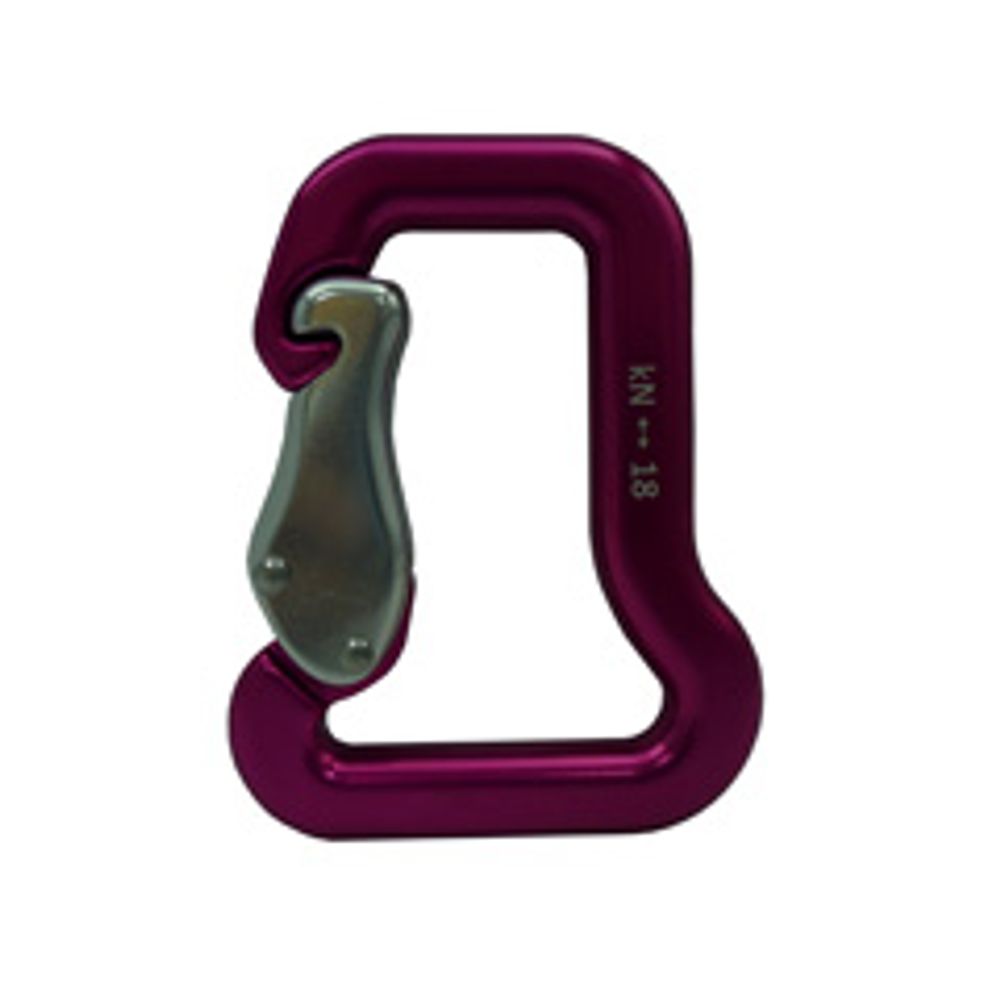

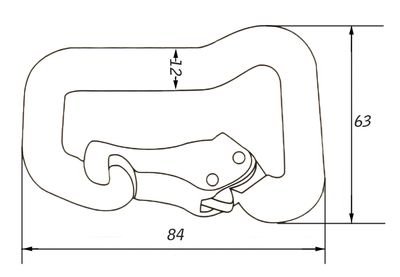

A777 is listed in aluminium alloy with an 18 kN breaking strength. The photograph shows a carabiner-style connector in purple anodised finish with a broad, flat-bottomed frame and a pivoting metal gate of a different design from the screw sleeve on A776-2; the second image is a dimension drawing showing the frame and gate opening.

Connectors in parachute and paraglider systems join risers to the harness, attach reserve bridles and accessories, and link harness components. A wide base like A777's keeps webbing loops and risers sitting flat. The harness or system manufacturer normally qualifies such connectors as part of the complete system, for example under EN 1651 for paragliding harnesses, so buyers should plan the connector into their own test programme.

Buyers should confirm the gate mechanism and opening against the webbing or risers to be used, the finish and marking, and the loads required by their system specification. Power Honour can supply A777 under a customer brand, or modify the frame and gate to a customer drawing.
