Buckles & D-Rings
201 Sliding Adjuster Buckle, ANSI Z359.1 / CSA Z259.1
The 201 is a sliding adjuster buckle with a zinc-plated sheet alloy steel body, a minimum breaking load of 4000 lbs (17.8 kN) and a weight of 80 g. It is stated to meet ANSI Z359.1 or CSA Z259.1, and it is used to adjust harness and belt straps.
Key features
- Sliding adjuster buckle
- Sheet alloy steel body, zinc plated
- Minimum breaking load 4000 lbs / 17.8 kN
- Weight 2.8 oz / 80 g
- Stated to meet ANSI Z359.1 or CSA Z259.1
Specifications
| Property | Value |
|---|---|
| Type | Sliding adjuster buckle |
| Body | Sheet alloy steel |
| Finish | Zinc plated |
| Min. breaking load | 4000 lbs / 17.8 kN |
| Net weight | 2.8 oz / 80 g |
Product details
The 201 is a sliding adjuster buckle on a sheet alloy steel body, zinc plated, weighing 2.8 oz (80 g). It is rated at a minimum breaking load of 4000 lbs (17.8 kN), and it is stated to meet ANSI Z359.1 or CSA Z259.1.
Without the spring of the 202, the 201 is simpler and 10 g lighter; the sliding bar, knurled in the product photo, grips the webbing when the strap is loaded. Adjusters of this type are used on harness leg, chest and shoulder straps and on positioning belts, mainly for products sold into North American markets where the cited standards apply.
Buyers should confirm which standard and edition their certification must reference and test the buckle with the intended webbing. Specify webbing width and thickness, finish and marking in the RFQ; dimensions are on the drawing. Power Honour can make the 201 for OEM or private-label programmes and can tailor it to a customer drawing.
Standards
- ANSI Z359.1
- CSA Z259.1
As named in the product data. Confirm which certification the finished product must carry in your market before ordering.
Related products
All products in Buckles & D-Rings →
202202 Sliding Adjuster Buckle with Spring, ANSI Z359.1 / CSA Z259.1
View product
116116 Sheet Alloy Steel D-Ring, 22.2 kN
View product
221221 Forged Alloy Steel Tongue Buckle, 2 in
View product

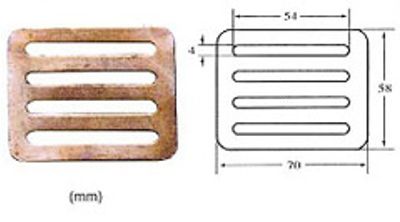

115115 Stamped Steel Belt Buckle, 2 in
