115 Stamped Steel Belt Buckle, 2 in
The 115 is a 2 in stamped steel belt buckle offered with a 54 mm or 58 mm inner size and a minimum breaking load of 1000 kg (2200 lbs). It is used on body belts, tool belts and webbing straps.
Key features
- Stamped steel
- 2 in size
- Inner size 54 mm or 58 mm
- Minimum breaking load 1000 kg / 2200 lbs
Specifications
| Property | Value |
|---|---|
| Type | Belt buckle |
| Size | 2 in |
| Inner size | 54 / 58 mm available |
| Process | Stamping |
| Material | Steel |
| Min. breaking load | 1000 kg / 2200 lbs |
Product details
The 115 is stamped from steel in a 2 in size and can be supplied with an inner size of 54 mm or 58 mm. Its minimum breaking load is 1000 kg, given in imperial units as 2200 lbs. The product photo shows a flat plate with several parallel slots.
Multi-slot belt buckles let the webbing be threaded back and forth for a secure, adjustable closure, which suits tool belts, body belts, utility belts and load-carrying straps. The two inner sizes allow buyers to match the buckle to their webbing thickness or to a particular feel when threading. Its rating places it in belt and strap roles rather than as a fall arrest component.
In the RFQ, state the inner size, finish (for example zinc or yellow plating), webbing width and thickness, and marking. The drawing gives full dimensions. Power Honour can supply the 115 as OEM or private-label hardware and modify it to a customer drawing; the 110 and 112 are other 2 in stamped belt buckles with the same rating.
Related products
All products in Buckles & D-Rings →

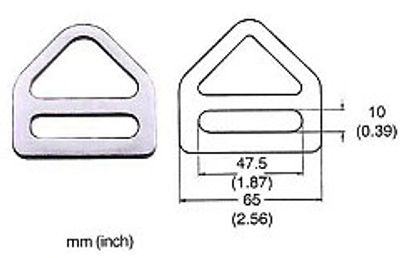

116116 Sheet Alloy Steel D-Ring, 22.2 kN
View product

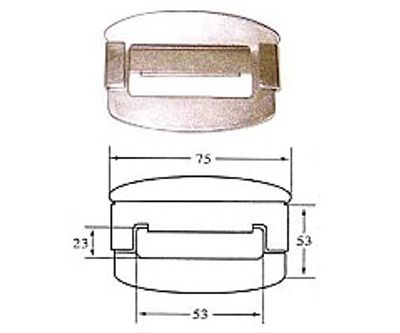

112112 Stamped Steel Belt Buckle, 2 in
View product

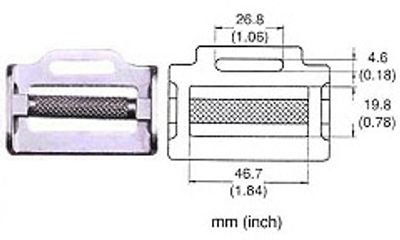

201201 Sliding Adjuster Buckle, ANSI Z359.1 / CSA Z259.1
View product
110110 Stamped Steel Belt Buckle, 2 in
View product

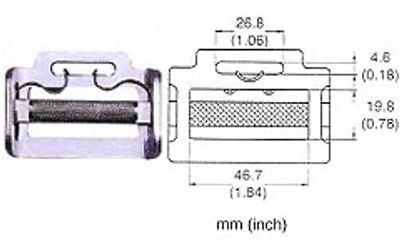

202202 Sliding Adjuster Buckle with Spring, ANSI Z359.1 / CSA Z259.1
View product

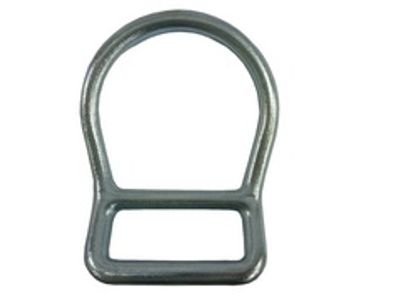

MS-240MS-240 Steel D-Ring, 22 kN, 7 mm
View product

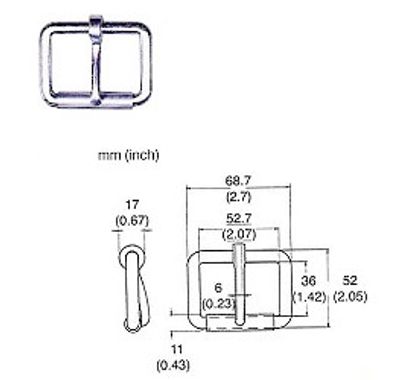

221221 Forged Alloy Steel Tongue Buckle, 2 in
View product

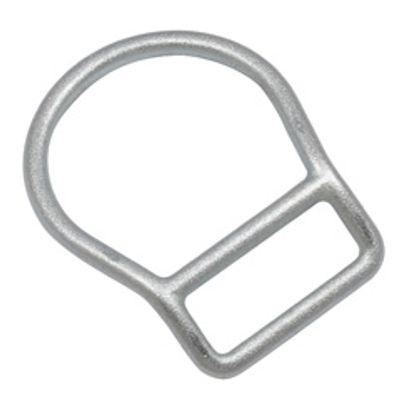

MS-239MS-239 Steel D-Ring, 22 kN, 6.5 mm
