Stainless Steel Swivels

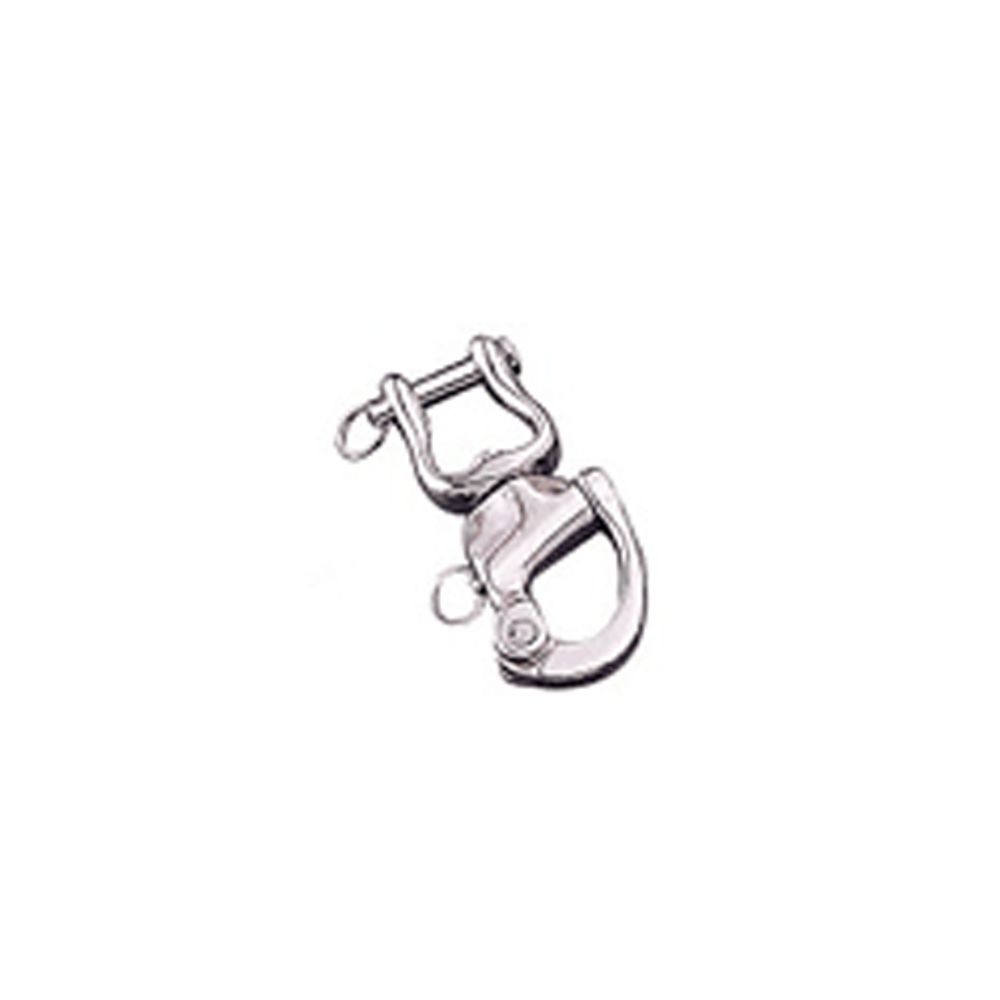

SS453 316 Stainless Steel Key Pin Swivel Snap Shackle
The SS453 is a swivel snap shackle in AISI 316 stainless steel with a key pin swivel, offered in three sizes of 70, 87 and 128 mm overall length. It combines the quick-release jaw of a snap shackle with a pinned swivel end for sailing and marine lines.
Key features
- AISI 316 stainless steel
- Snap shackle with key pin swivel
- Lengths 70, 87 and 128 mm
- Quick-release plunger jaw
Specifications
| Property | Value |
|---|---|
| Material | Stainless steel 316 (AISI 316) |
| Type | Key pin swivel snap shackle |

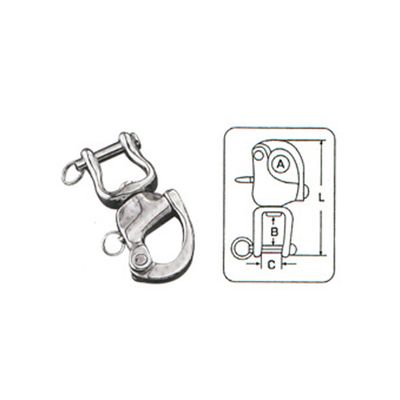

| Size L 70 mm | A 12, B 12, C 12 mm |
| Size L 87 mm | A 16, B 13, C 13 mm |
| Size L 128 mm | A 22, B 16, C 22 mm |
Product details
The SS453 key pin swivel snap shackle is made from AISI 316 stainless steel. A plunger-operated jaw opens for quick release, while the swivel end is closed by a key pin, so the shackle can be pinned directly to a fitting, sail or strap. Three sizes are listed: L 70 mm (A 12, B 12, C 12 mm), L 87 mm (A 16, B 13, C 13 mm) and L 128 mm (A 22, B 16, C 22 mm).
Swivel snap shackles are used on spinnaker sheets and guys, halyards, and tack and clew attachments, where the line must spin without twisting and must also be released under load. Grade 316 limits corrosion in salt-water use. Buyers should agree the working or breaking load they need with Power Honour before specifying the part for a particular rig; it is not lifting or fall-protection equipment.
The standard swivel version with the same lengths is SS451. Both can be supplied under a private label or modified to a customer drawing.
