Rope Grabs

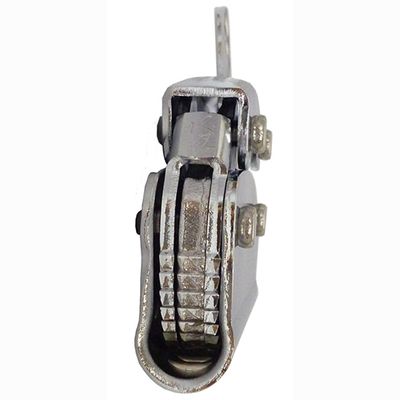

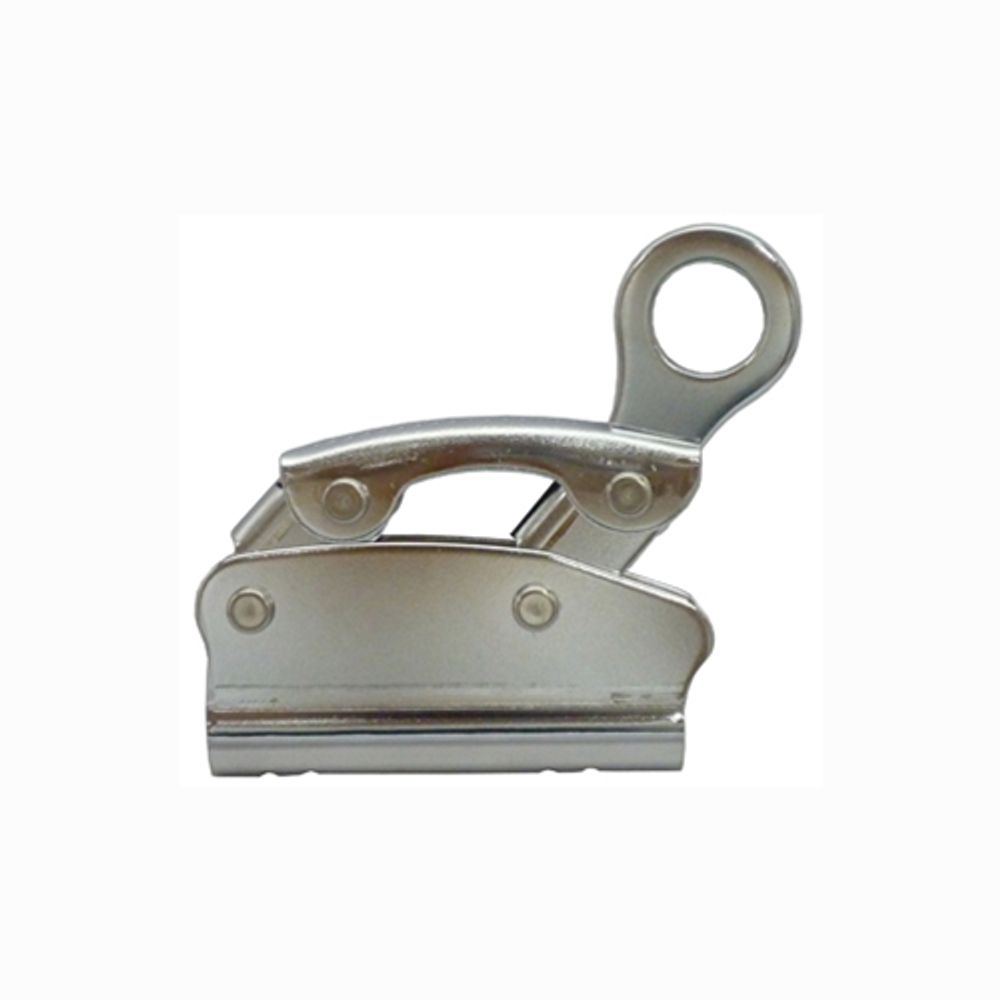

609-12 Steel Rope Grab with Eye, 12 mm Rope
The 609-12 is a steel rope grab with an attachment eye for 12 mm synthetic rope, weighing 449 g and offered in yellow zinc-plated or chrome-plated finish. It links a worker's lanyard to a vertical rope lifeline in fall-protection systems.
Key features
- Steel, attachment eye
- For Ø12 mm synthetic rope
- Weight 449 g
- Yellow zinc-plated or chrome-plated finish
Specifications
| Property | Value |
|---|---|
| Material | Steel |
| Standard finish | Yellow zinc plated or chrome plated |
| Rope size | Ø12 mm |
| Weight | 449 g |
| Rope type | Synthetic rope |
Product details
609-12 is made from steel and weighs 449 g. It is sized for Ø12 mm synthetic rope and has an eye for the user's connector. The standard finish is either yellow zinc plating or chrome plating, which lets a brand choose between a coloured and a bright metallic appearance.
At 449 g it sits between the 625 g 608 series and the lighter aluminium AHY-632, giving a steel device with a moderate weight. Rope grabs like 609-12 are used on vertical lifelines in roofing, construction, scaffolding and maintenance, where the worker connects to the grab through a lanyard or energy absorber.

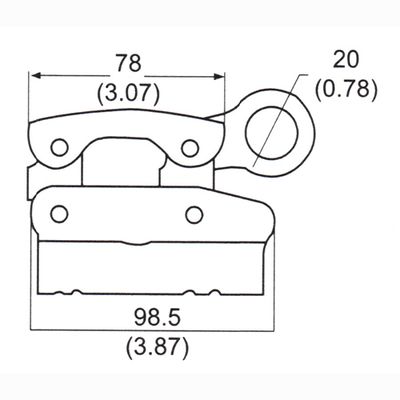

Decide on the finish at RFQ stage, and confirm the rope construction the grab is designed for, because a rope grab must match its rope to lock reliably. Request dimensions, eye size and the test standard, and specify the marking your market requires. The 609-16 is the 16 mm version. Power Honour can produce 609-12 as an OEM or private-label rope grab and adapt it to a customer drawing.
