G80 Lifting Components
316A Grade 8 Self-Locking Hook

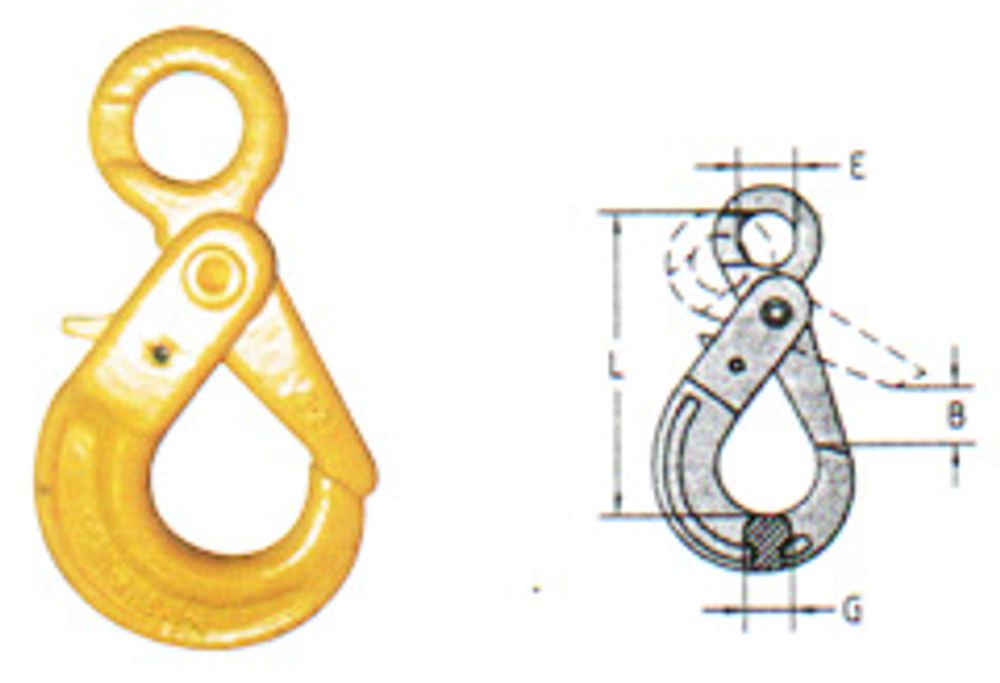

The 316A (Art. No. 316A) is a Grade 8 self-locking hook for chain lifting slings. It is listed for five chain sizes from 6 mm (WLL 1.25 ton) to 16 mm (WLL 8.0 ton), with drawing dimensions for each.
Key features
- Grade 8 self-locking hook
- For 6 mm to 16 mm chain
- WLL from 1.25 ton to 8.0 ton
- Length L from 108 mm to 254 mm
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Chain size 6 mm | L 108 mm, B 28 mm, E 24 mm, G 14.5 mm, WLL 1.25 ton |
| Chain size 7+8 mm | L 134 mm, B 25 mm, E 25 mm, G 20.2 mm, WLL 2.0 ton |
| Chain size 10 mm | L 169 mm, B 43 mm, E 32 mm, G 28.5 mm, WLL 3.2 ton |
| Chain size 13 mm | L 208 mm, B 64 mm, E 40 mm, G 33 mm, WLL 5.4 ton |
| Chain size 16 mm | L 254 mm, B 63 mm, E 50 mm, G 37 mm, WLL 8.0 ton |
Product details
The 316A self-locking hook is listed for chain from 6 mm to 16 mm. At the small end, the 6 mm hook measures L 108 mm, B 28 mm, E 24 mm and G 14.5 mm and is rated at 1.25 ton. The 7+8 mm hook is rated at 2.0 ton, the 10 mm at 3.2 ton (G 28.5 mm) and the 13 mm at 5.4 ton, while the 16 mm hook measures L 254 mm, B 63 mm and E 50 mm and carries 8.0 ton. Minimum breaking load is four times the working load limit.
On this type of hook, the latch closes and locks automatically and stays locked until the operator presses the release trigger, preventing accidental release during the lift. Self-locking hooks are used where load security is a priority, for example in construction, precast, steel erection and shipbuilding. The 316A is a lifting component and is not intended for personal fall protection.
Its dimensions match those of the 317A clevis self-locking hook; buyers should confirm the 316A's connection type on the drawing. The 316A can be supplied under OEM or private label.
