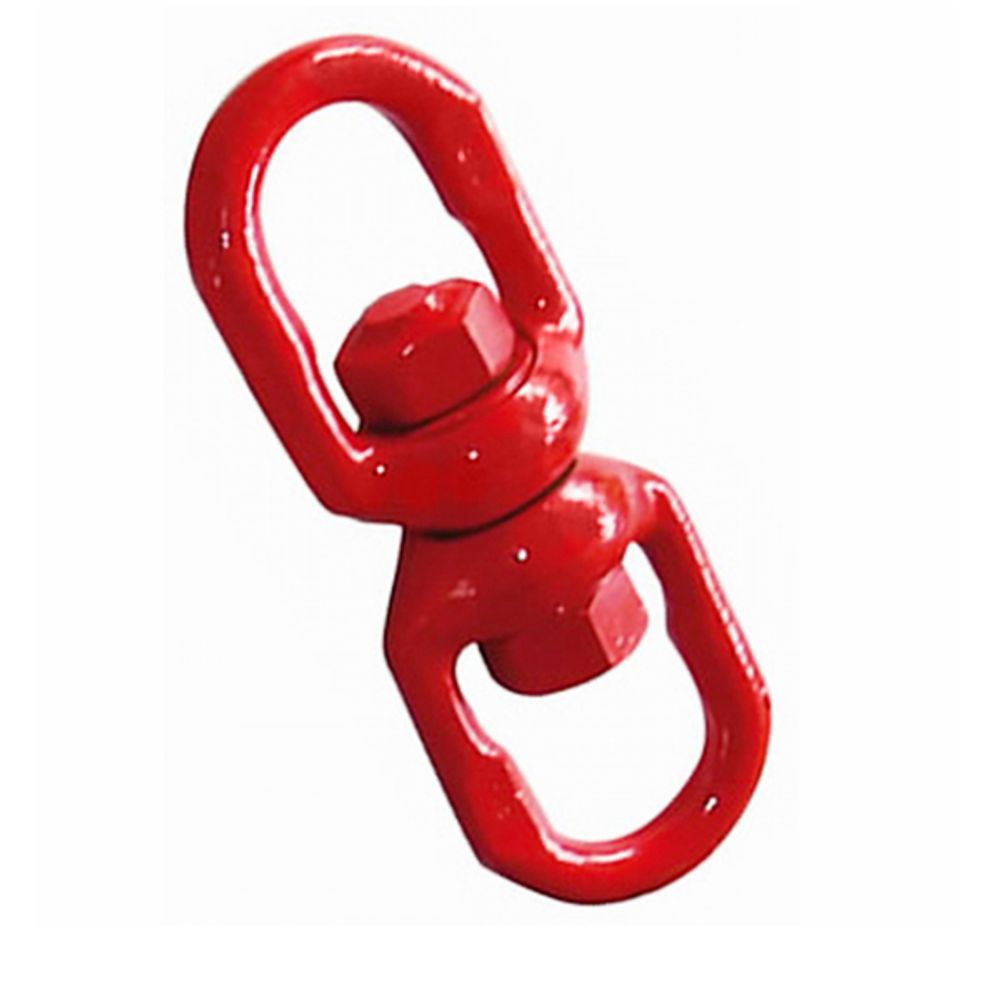

2300A Grade 80 Regular Swivel
The 2300A (Art. No. 2300A) is a Grade 80 regular swivel used to allow rotation in chain lifting and rigging assemblies. It is listed in sizes 10-8, 13-8 and 16-8, with working load limits of 3.20, 5.40 and 8.20 ton.
Key features
- Grade 80 regular swivel
- Sizes 10-8, 13-8 and 16-8
- WLL 3.20, 5.40 and 8.20 ton
- Net weight 1.30 to 3.90 kg
- Minimum breaking load 4 × WLL
Specifications
| Property | Value |
|---|---|
| Minimum breaking load | 4 × working load limit (WLL) |
| Size 10-8 | WLL 3.20 ton, net weight 1.30 kg |
| Size 13-8 | WLL 5.40 ton, net weight 2.40 kg |
| Size 16-8 | WLL 8.20 ton, net weight 3.90 kg |
Product details
Three sizes make up the 2300A range. The 10-8 swivel is rated at 3.20 ton and weighs 1.30 kg, the 13-8 at 5.40 ton and 2.40 kg, and the 16-8 at 8.20 ton and 3.90 kg. Size codes give the chain diameter followed by the grade, and each size has a minimum breaking load of four times its working load limit.
A regular swivel sits between chain and a hook or other fitting so the load can be positioned without twisting the chain legs. Typical uses are chain slings, hoisting set-ups and general rigging in construction and industrial maintenance. The 2300A is lifting hardware and is not intended for personal fall protection.
Points worth confirming before ordering include the chain size and grade it must match, whether the swivel is expected to turn under load, and any marking or certificate requirements. Power Honour can supply the 2300A under OEM or private label and can adapt the design to a drawing.
