The difference between hot forging and cold forging is temperature: hot forging deforms metal above its recrystallisation temperature, typically 1,100-1,250 °C for carbon and alloy steel and roughly 350-480 °C for aluminium alloys such as 6061 and 7075, while cold forging deforms it at or near room temperature. Hot forging buys large, complex shapes at modest press loads, but leaves scale, generous draft angles and loose as-forged tolerances that normally require secondary machining. Cold forging buys near-net-shape accuracy, a bright surface and work-hardened strength, at the cost of much higher tooling loads, tighter limits on geometry and material, and tooling that only pays back at high volume. For load-bearing safety hardware, though, the more consequential question is usually not hot versus cold at all, but forged versus machined-from-solid.
Why does forging matter at all for a life-critical part?
Forging matters because it controls where the metal grain goes, and grain direction determines how a part behaves under repeated and shock loading. Rolled bar and extruded aluminium already carry a directional fibre structure from the mill. Machine a hook or a connector body out of that bar and the cutter slices straight through those flow lines, exposing end grain at exactly the radii and section changes where stress concentrates. Forge the same shape and the material is displaced rather than removed, so the flow lines bend to follow the outline of the finished part, wrapping continuously around the eye, the nose and the spine.
The practical consequences for a load-bearing connector are well documented in forging practice:
- Fatigue life improves, because a crack starting at a radius has to cross the grain rather than run along an exposed end-grain boundary
- Impact and shock resistance improve, which matters for fall-arrest hardware that may see one high-energy event rather than steady load
- Micro-voids carried over from the cast ingot are closed under compressive forming, so there is none of the shrinkage porosity a casting can hide
- Properties become more uniform batch to batch, which is what a notified body and your own incoming inspection care about
A part can be machined perfectly to drawing and still be the weaker part, because the drawing does not show grain flow.
What is hot forging, and which parts suit it?

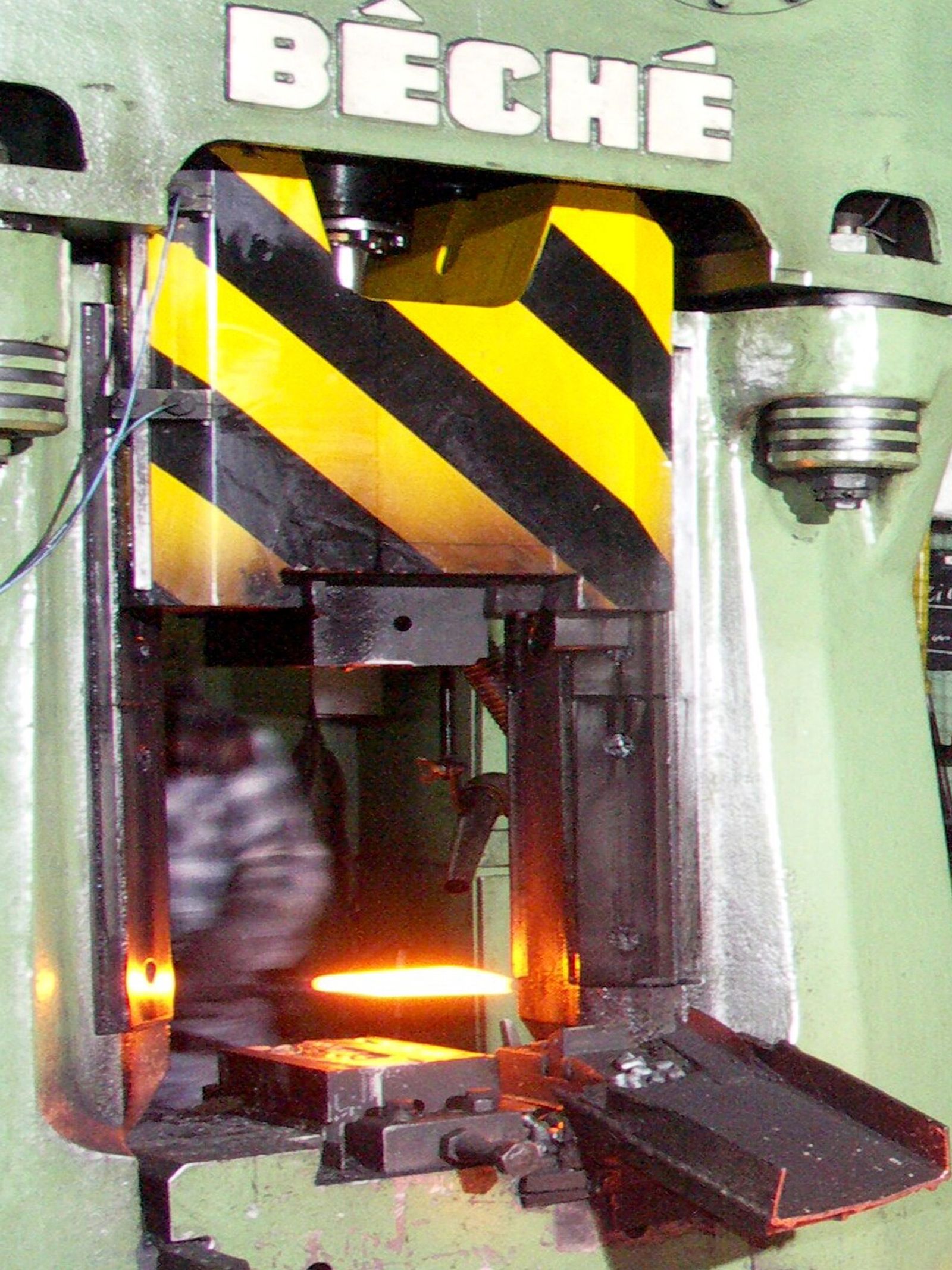

Hot forging suits larger, geometrically complex load-bearing parts and any alloy that is difficult to deform cold. Above the recrystallisation temperature the metal recrystallises as fast as it is deformed, so flow stress collapses and a single drop-forging or press sequence can fill a deep impression that cold forming could never reach.
- Steel is forged around 1,100-1,250 °C; stainless sits in a similar window with a narrower safe range
- Aluminium alloys including 6061 and 7075 are forged near 350-480 °C, with tighter control because the window is narrow
- Draft angles are needed so the part releases from the die, commonly several degrees on steel and less on aluminium
- Fillet and corner radii must be generous; sharp internal corners either will not fill or will crack the die
- Oxide scale forms on hot steel and the as-forged surface is rough, so tolerances run in tenths of a millimetre rather than hundredths
Because of scale, draft and thermal contraction, hot forging is a blank-making process for safety hardware, not a finishing one: the forging sets the shape and the grain flow, and the critical features are machined afterwards.
What is cold forging, and when is it the better choice?
Cold forging is the better choice when the geometry is relatively simple, the volumes are high, and you want the part to come off the press close to finished size. Forming at room temperature avoids scale and thermal shrinkage entirely, so dimensions are far more predictable, surfaces come out bright, and much of the secondary machining disappears.
- Near-net-shape accuracy: cold-formed features are commonly held an order of magnitude tighter than as-forged hot tolerances, and draft can be close to zero
- Surface finish is smooth enough that many faces need no machining before plating or passivation
- Work hardening raises yield and tensile strength in the formed region, sometimes enough to avoid a separate strengthening treatment
- Material utilisation is very high, which matters on stainless and titanium where stock cost dominates
The trade-offs are real. Forming loads are far higher, so presses and tooling are heavier. Ductility limits how much one blow can achieve, so complex parts need multi-station progressive forming with intermediate annealing. Not every alloy cooperates: low and medium carbon steels and softer aluminium grades cold form well, while high-strength 7075 and many stainless grades are much less forgiving. And the tooling only pays back over tens or hundreds of thousands of parts.
Warm forging sits between the two, typically around 700-950 °C for steel. It cuts flow stress enough to form shapes that will not cold form, while avoiding most of the scale and distortion of full hot forging.
Forging vs machining vs casting: which process for which part?
Choose by part function first, then by volume:
- Forge it if the part carries the load and runs in real volume: connector bodies, hooks, shackles, D-rings, anchor eyes, swage and rigging fittings
- Cast it if the geometry is complex, undercut or hollow in ways a die cannot fill, and the part is not the primary load path
- Machine it from solid for prototypes, pilot runs and variable geometry, and for the precision features of any blank
The casting-versus-CNC side of that decision, including the volume crossover and achievable tolerances, is covered in our separate guide on investment casting versus CNC machining.
What does forging tooling cost, and how long until first samples?
In general industry terms, forging is tooling-first: you commit to a die set before making a single sellable part. Hot forging dies are sunk from hot-work tool steel such as H13, and cost scales with the number of impressions, cavity depth and detail. Cold forging tooling is dearer again, since punch and die inserts are often carbide in shrink-fit stress rings.
Die life is the other half: hot dies erode thermally and are re-sunk after a finite number of impressions, while cold tooling runs far longer but fails abruptly. Lead time from approved drawing to first forged samples is measured in weeks, not days, because the die has to be designed, cut, tried out and corrected. That is why forging rarely makes sense for a first prototype: machine it from solid, prove the geometry and the test results, then commit to the die.
What happens after the forge?
A forging is a blank, and the operations that follow decide whether it passes certification. A typical route for a load-bearing part runs:
- Trimming the flash and piercing any through-features left by the die
- Heat treatment: normalising or quench and temper for steel; solution treatment and artificial ageing for aluminium, such as the roughly 530 °C solution and 160-175 °C ageing route associated with 6061-T6
- Shot blasting or pickling to remove scale
- CNC machining of critical features: gate seats, pin bores, thread forms, keeper geometry and mating faces
- Surface treatment: anodising on aluminium, plating or coating on carbon steel, passivation on stainless
- Marking, proof-load or destructive sample testing, and final inspection
Which safety-hardware parts are typically forged?
Load-path parts are forged, complex non-critical geometry is cast, and precision features and low volumes are machined. Carabiner and connector bodies, snap hook bodies, shackles, D-rings, anchor eyes, rigging plates and swivel components are the natural forging candidates, because they are the parts a standard tests to destruction. EN 12275 expects a basic mountaineering connector to hold 20 kN on the major axis, and ANSI/ASSP Z359.12 requires 22.2 kN (5,000 lbf) minimum breaking strength with 16 kN (3,600 lbf) gate strength. Those are not numbers to reach with severed grain flow and an unlucky inclusion. Housings, covers, levers and cam bodies with awkward internal geometry are more often cast; adjusters, pins, threaded parts, low-volume connectors and every prototype are machined.
