SS783 Stainless Steel Jaw Terminal for 8 mm Lifeline Rope

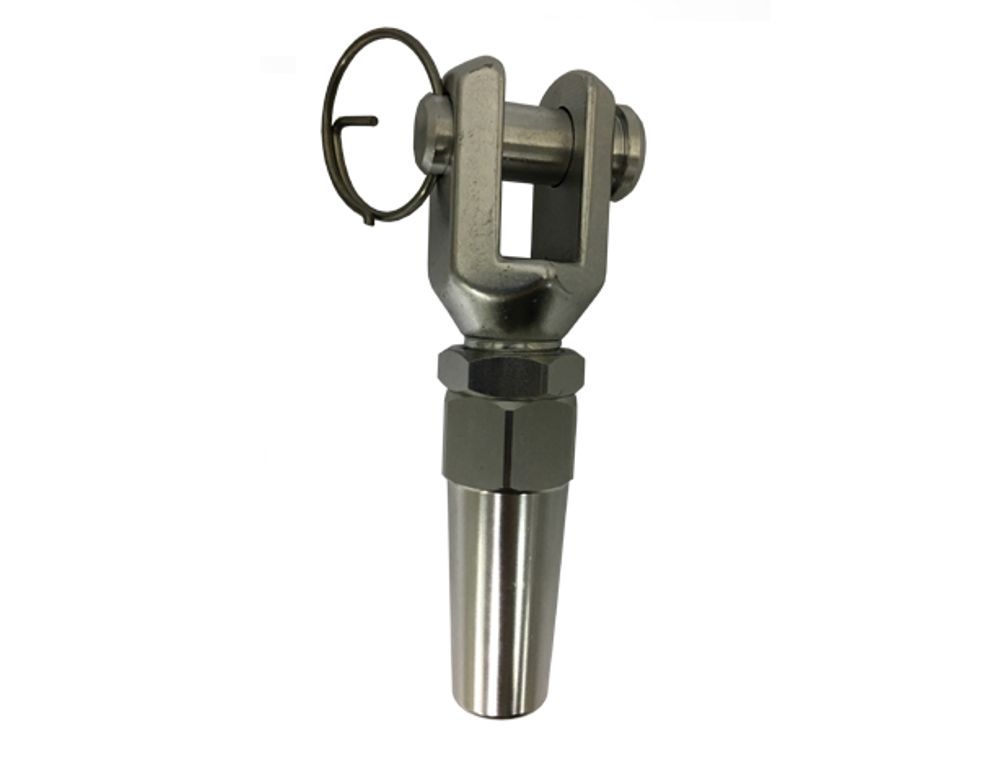

The SS783 jaw terminal finishes the end of an 8 mm lifeline rope with a jaw that connects by a pin to an anchor plate, tensioner or shock absorber. It is made of stainless steel and serves as a horizontal lifeline component for via ferrata systems.

Terminals are where the cable load passes into the hardware, so their fit on the rope and on the mating fittings is critical. In a horizontal lifeline, jaw terminals are typically used at the end anchors and at in-line components such as tensioners and absorbers, along roof edges, walkways, gantries and via ferrata routes. Related terminals in the range include the SS934_1 and SS933_2 welded fork terminal ends and the S312/8 swageless fork.

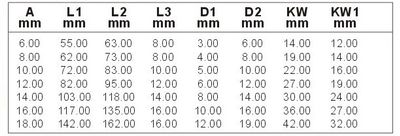

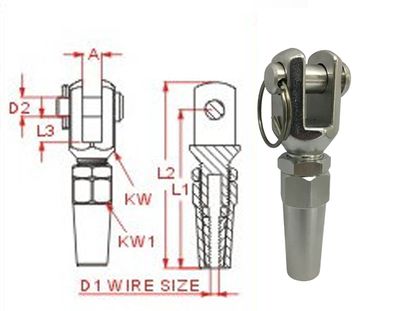

Buyers should confirm the termination method, pin size and jaw opening on the drawing. Terminations must be made in line with the manufacturer's instructions, and the complete system should be designed by a competent person. The SS783 can be supplied as OEM or private label.
