2308 D-Shape Galvanised Steel Captive-Eye Carabiner, Screw-Lock

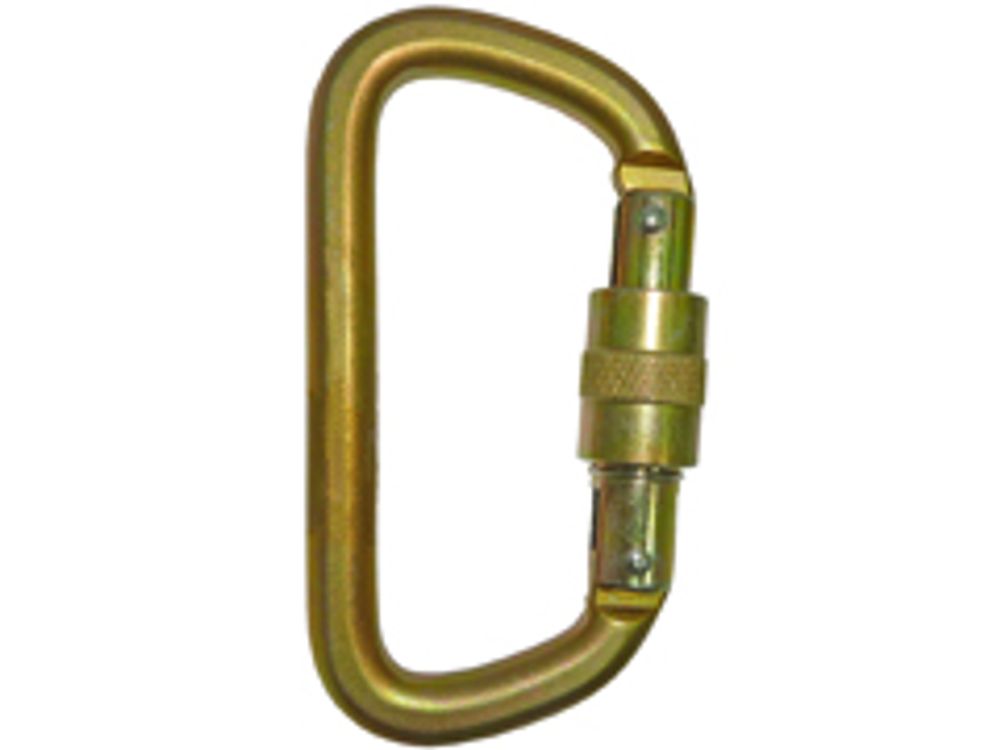

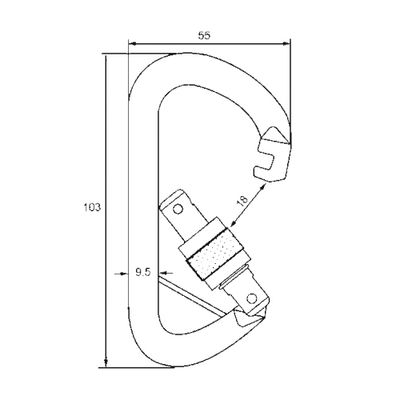

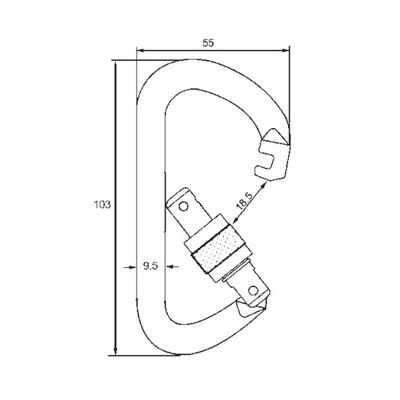

The 2308 is a D-type karabiner in galvanised steel, 103 mm long and 55 mm wide, with a screw-lock gate and a listed breaking strength of 35 kN. Its captive eye is closed by a pin, and the carabiner ships with the pin uninstalled. Twist-lock and triple-lock gate versions are also offered.

A captive eye holds the lanyard or sling termination in a fixed position, so the carabiner cannot rotate into a cross-loaded orientation and the load stays on the major axis. Supplying the pin loose lets an assembler thread a sewn webbing loop or spliced rope eye into the captive eye and then install the pin, which suits manufacturers of fall-protection lanyards, positioning lanyards and rescue assemblies.

When requesting a quote, specify the gate type you need, and ask for the pin installation method and any tooling needed on your assembly line. Confirm weight, gate opening and the marking required by your target standard, as these are not listed. Power Honour can supply 2308 as an OEM or private-label connector and can adapt it to a customer drawing.
