Connectors & Snap Hooks
352 / 353 Steel Carabiner, Auto-Lock or Triple-Lock, 25 kN

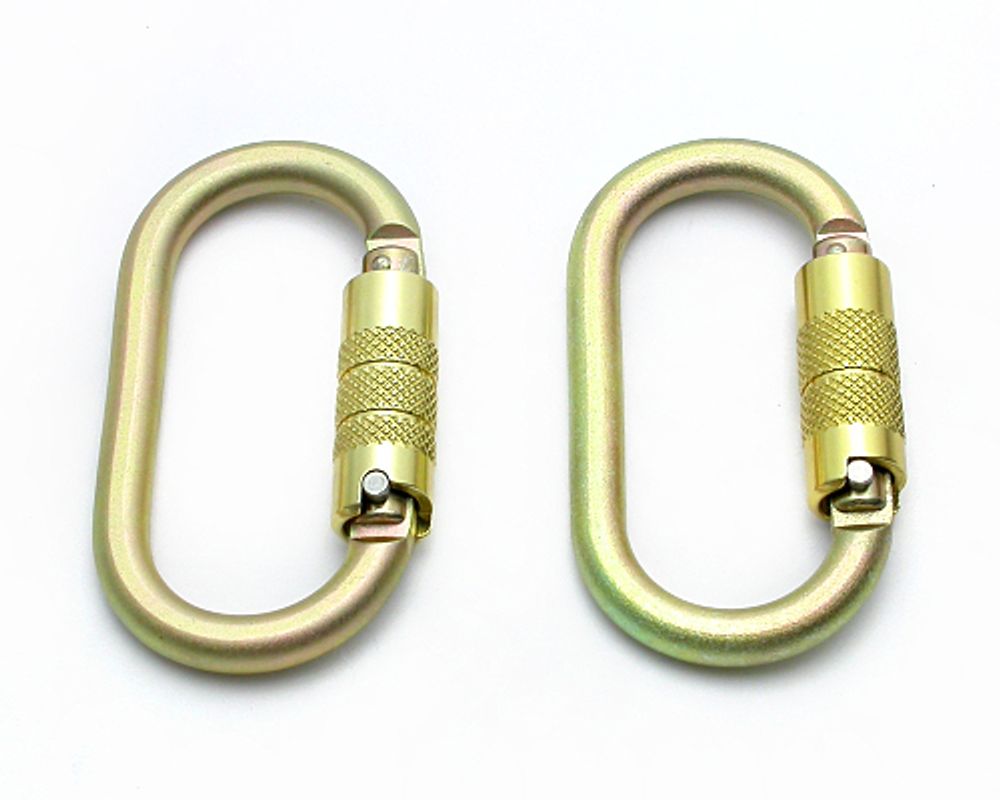

The 352 / 353 is a compact steel carabiner offered with an auto-lock or triple-lock gate, made from 10 mm bar with a 25 kN breaking strength. At 108 x 56 mm with a 20 mm opening, it is a general-purpose locking connector for fall-protection equipment.
Key features
- Steel, 10 mm bar
- Auto-lock or triple-lock gate
- Breaking strength 25 kN
- 20 mm opening, 108 x 56 mm
Specifications
| Property | Value |
|---|---|
| Material | Steel |
| Gate type | Auto-lock or triple-lock |
| Breaking strength | 25 kN |
| Diameter | 10 mm |
| Opening | 20 mm |
| Length | 108 mm |
| Width | 56 mm |
Product details
This steel carabiner, listed as 352 / 353, can be supplied with either an auto-lock or a triple-lock gate. Both versions use 10 mm bar in a 108 x 56 mm frame, open to 20 mm and carry a 25 kN breaking strength.
Self-locking gates are the norm on connectors that users clip and unclip during the working day, because they cannot be left unlocked by mistake. Choosing between auto-lock and triple-lock lets a brand balance speed of use against the extra protection of a three-step gate. Typical applications are lanyard ends, harness-to-anchor links, positioning systems and restraint lines in construction and industry.
Ask the factory which code corresponds to which gate, and confirm finish and weight. Specify the standard and marking needed for your market. The frame is shared with models 311BH, 351 and 354. Power Honour can manufacture 352 / 353 as an OEM or private-label carabiner and can adapt it to a customer drawing.
