SS7350 304 Stainless Steel Quick Link

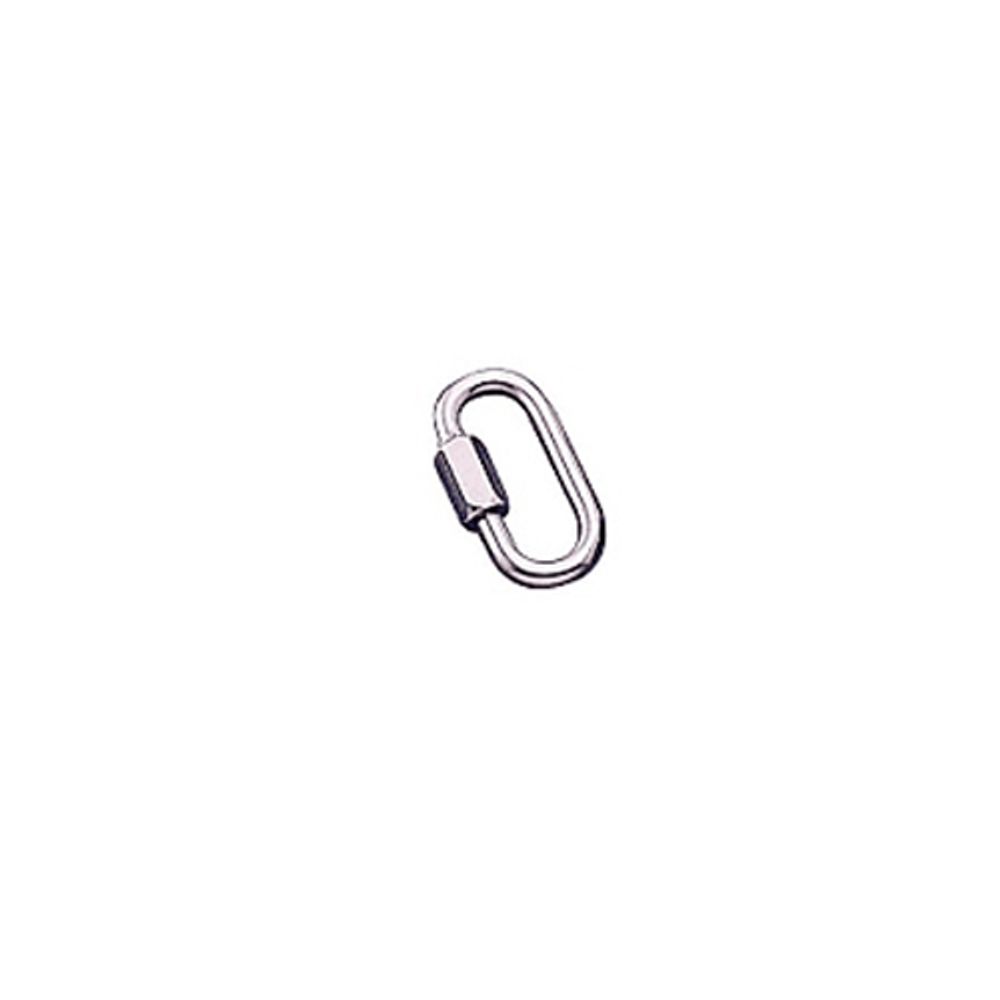

The SS7350 is a screw-sleeve quick link in AISI 304 stainless steel, listed in nine sizes from 3.5 mm to 12 mm. It joins chain, rope eyes, rings and fittings where a connection needs to be opened and closed again from time to time.
Key features
- AISI 304 stainless steel
- Quick link with threaded sleeve
- Nine sizes from 3.5 to 12 mm
- A from 36.0 to 104.5 mm
Specifications
| Property | Value |
|---|---|
| Material | Stainless steel 304 (AISI 304) |
| Type | Quick link |
| Size 3.5 mm | A 36.0, B 3.5, C 10.0, D 5 mm |
| Size 4.0 mm | A 40.0, B 4.0, C 11.5, D 5.4 mm |
| Size 5.0 mm | A 48.5, B 5.0, C 13.0, D 6.5 mm |
| Size 6.0 mm | A 57.0, B 6.0, C 14.5, D 7.5 mm |
| Size 7.0 mm | A 67.0, B 7.0, C 16.5, D 8.0 mm |
| Size 8.0 mm | A 74.0, B 8.0, C 17.5, D 10.0 mm |
| Size 9.0 mm | A 83.5, B 9.0, C 19.0, D 10.0 mm |
| Size 10.0 mm | A 80.0, B 10.0, C 20.5, D 12.0 mm |
| Size 12.0 mm | A 104.5, B 12.0, C 22.5, D 15.0 mm |
Product details

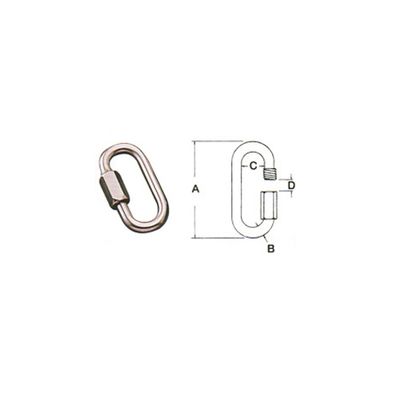

The SS7350 is the standard quick link of this stainless range, made in AISI 304 stainless steel with a threaded sleeve that closes the gate. Nine sizes are listed from 3.5 mm to 12 mm. In each row B equals the size; A, the length dimension on the drawing, runs from 36.0 mm to 104.5 mm, C from 10.0 to 22.5 mm and D from 5 to 15 mm.
Quick links are a convenient way to join chain lengths, attach chain to an eye plate, connect a wire rope thimble to a fitting or build hanging systems for signs, lighting and planters. The 304 grade gives good corrosion resistance outdoors and in sheltered marine positions, with 316 the usual step up for constant salt-water exposure.
No working load is stated, and these links are not intended as PPE connectors or lifting components. When requesting a quote, list the sizes and quantities required. Power Honour can supply them in bulk, under a private label, or in a modified size to a customer drawing; the triangular form is listed separately as SS7351.
